- Barošanas bloks CHIEFTEC APB-700B8 Value 700w (APB-700B8)

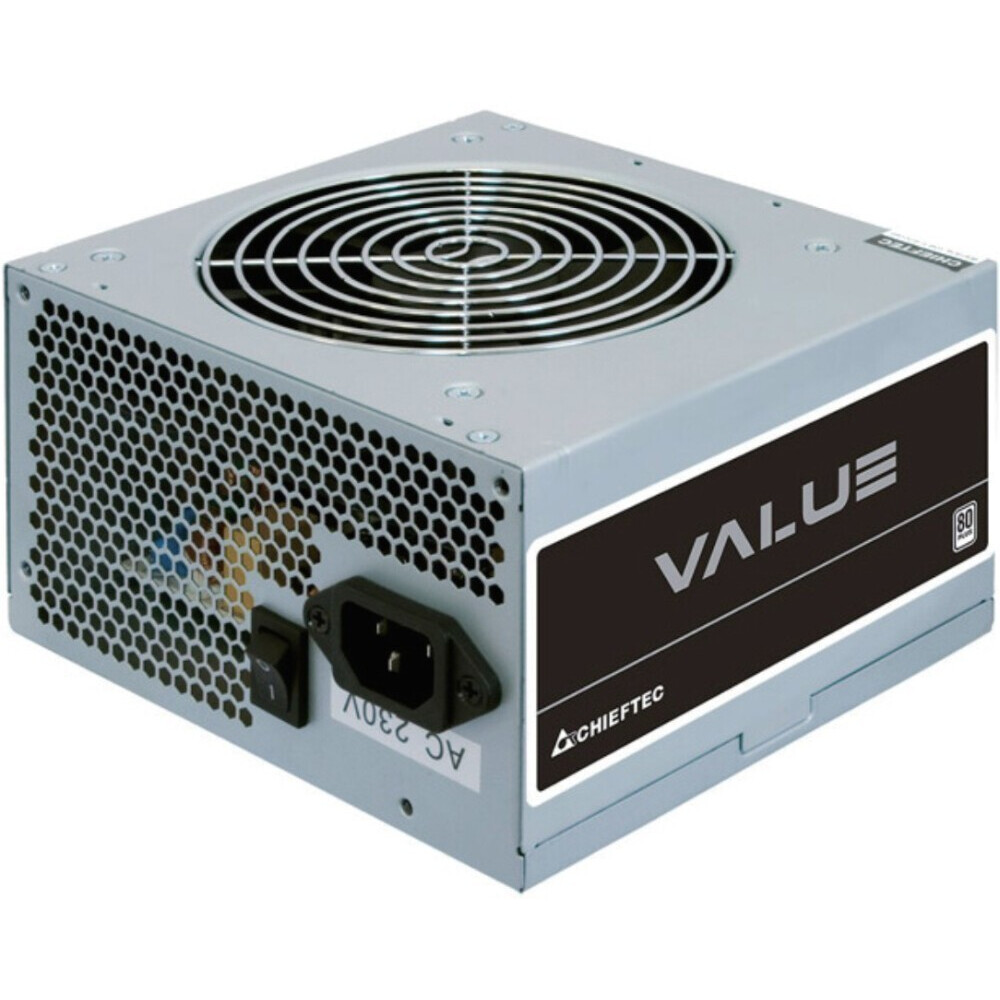

Barošanas bloks CHIEFTEC APB-700B8 Value 700w (APB-700B8)
ID: 451970
Modifikācija
Īsi par preci
- Jauda: 700 W
- Standarts: ATX12V 2.3
- PFC: aktīvs
- Ventilatora izmērs: 120 mm
- Sertifikāts 80 PLUS: Certified
Pilnas specifikācijas
Nav noliktavā
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
APB-700B8
Jauda ........................................................................................................................................................................................................
700 W
Standarts ........................................................................................................................................................................................................
ATX12V 2.3
PFC ........................................................................................................................................................................................................
aktīvs
Ventilatora izmērs ........................................................................................................................................................................................................
120 mm
Strāvas stiprums
Strāva līnijā +3.3 V ........................................................................................................................................................................................................
22 A
Strāva līnijā +5 V ........................................................................................................................................................................................................
22 A
Strāva līnijā +12 V 1 ........................................................................................................................................................................................................
54 A
Strāva līnijā -12 V ........................................................................................................................................................................................................
0.3 A
Strāva līnijā +5 V Standby ........................................................................................................................................................................................................
2.5 A
Papildu
Pārsprieguma aizsardzība ........................................................................................................................................................................................................
jā
Pārslodzes aizsardzība ........................................................................................................................................................................................................
jā
Aizsardzība pret īsslēgumu ........................................................................................................................................................................................................
jā
Sertifikāts 80 PLUS ........................................................................................................................................................................................................
Certified
Mātesplates barošanas kabeļa garums ........................................................................................................................................................................................................
55 cm
Ligzdas
Mātesplates ligzdas veids ........................................................................................................................................................................................................
20+4 pin
4 +4-pin CPU ligzdu skaits ........................................................................................................................................................................................................
1
6+2-pin PCI-E ligzdu skaits ........................................................................................................................................................................................................
2
4-pin IDE (Molex) ligzdu skaits ........................................................................................................................................................................................................
2
15-pin SATA ligzdu skaits ........................................................................................................................................................................................................
4
4-pin Floppy ligzdu skaits ........................................................................................................................................................................................................
1
Papildus
Izmēri (PxAxD) ........................................................................................................................................................................................................
150 x 86 x 140 mm
Svars ........................................................................................................................................................................................................
1.42 kg
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
