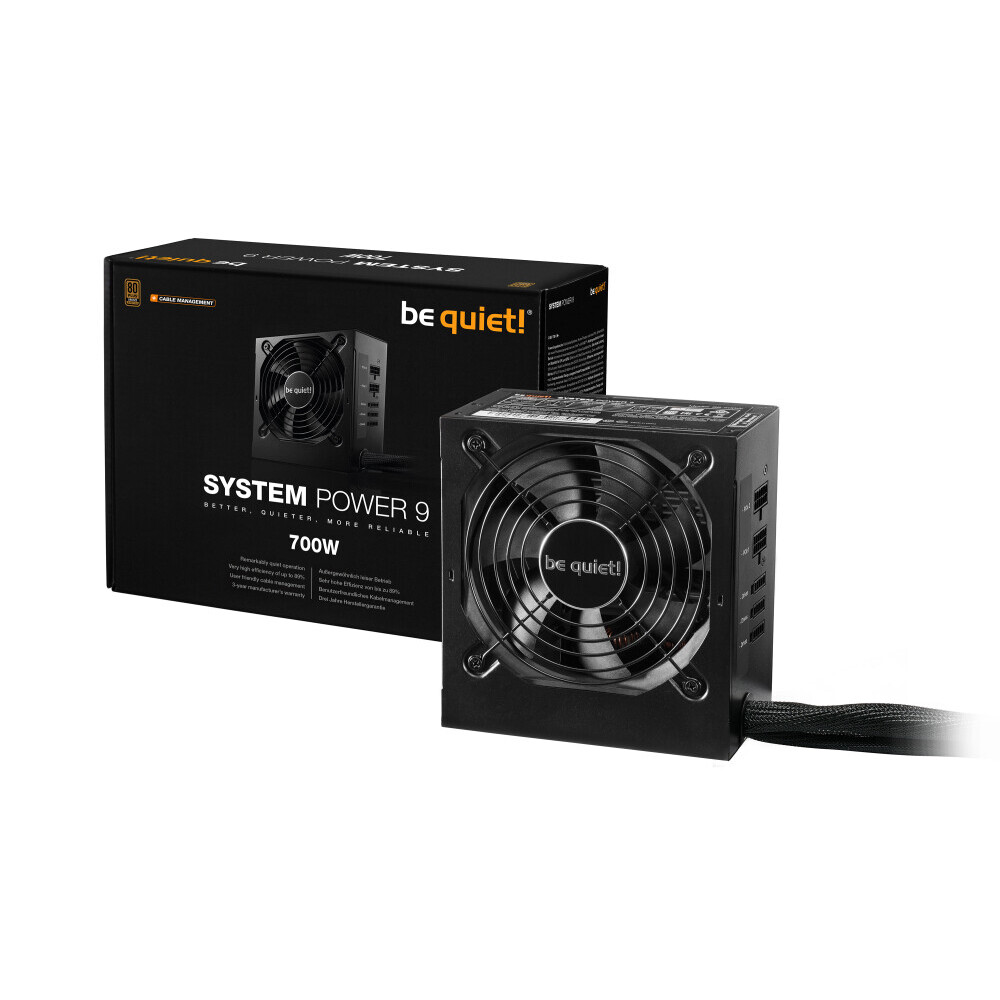

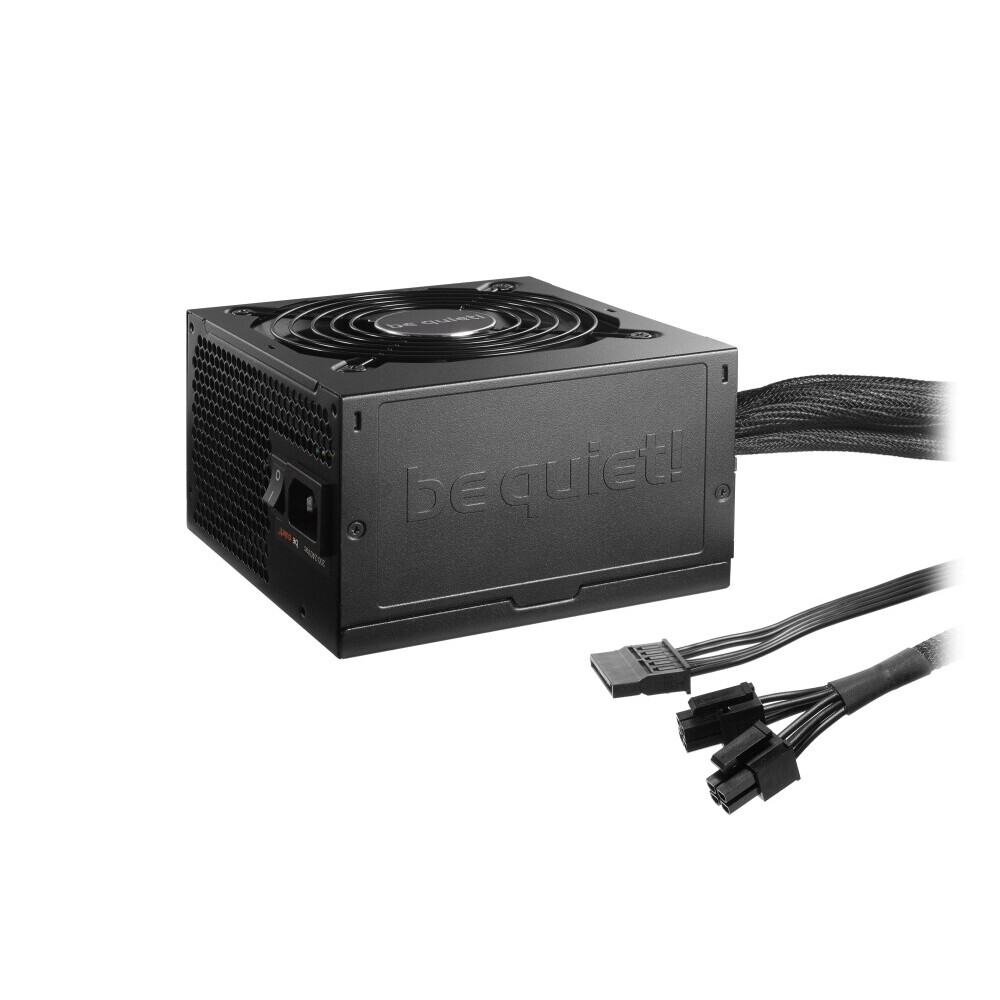

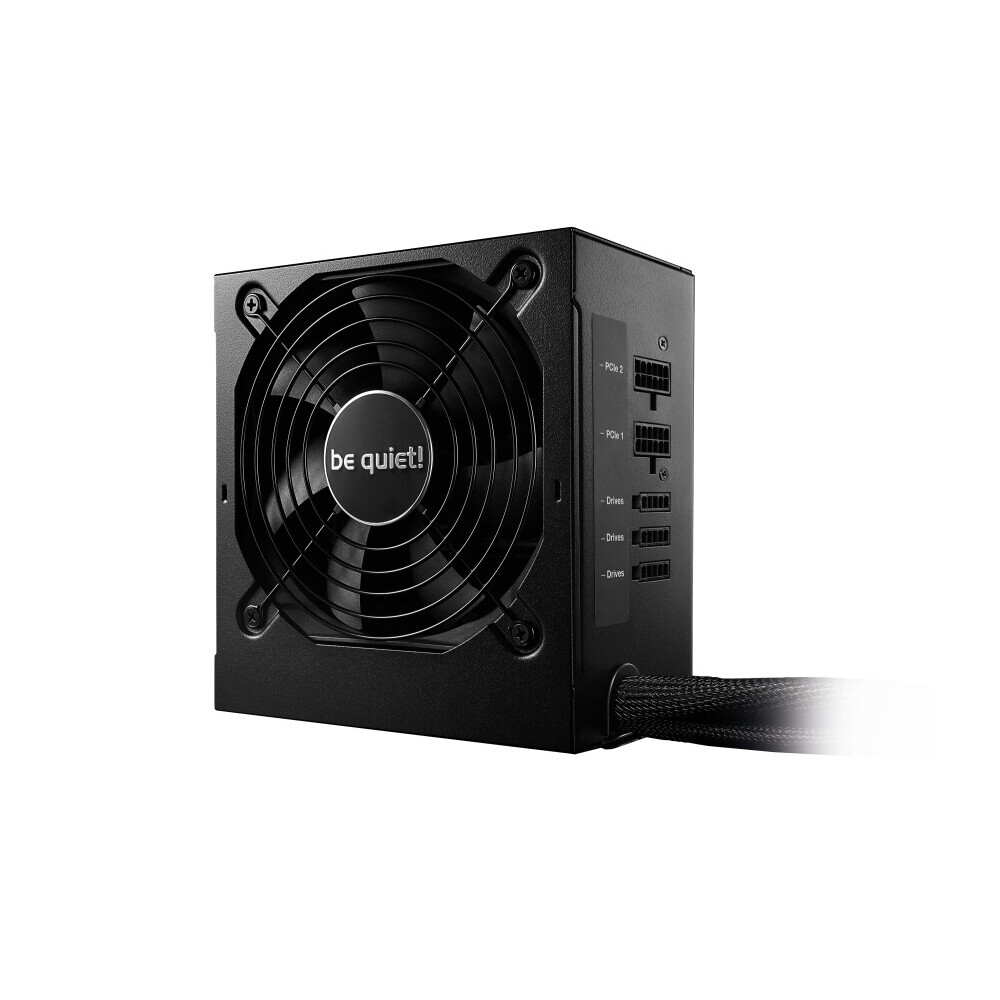

Barošanas bloks BE QUIET System Power9 CM 700W (BN303)
ID: 43184
Īsi par preci
- Jauda: 700 W
- Standarts: ATX12V 2.51
- PFC: aktīvs
- Ventilatora izmērs: 120 mm
- Sertifikāts 80 PLUS: Bronze
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
BN303
Jauda ........................................................................................................................................................................................................
700 W
Standarts ........................................................................................................................................................................................................
ATX12V 2.51
PFC ........................................................................................................................................................................................................
aktīvs
Ventilatora izmērs ........................................................................................................................................................................................................
120 mm
Ligzdas
Mātesplates ligzdas veids ........................................................................................................................................................................................................
20+4 pin
4 +4-pin CPU ligzdu skaits ........................................................................................................................................................................................................
1
6+2-pin PCI-E ligzdu skaits ........................................................................................................................................................................................................
4
15-pin SATA ligzdu skaits ........................................................................................................................................................................................................
10
Papildu
Sertifikāts 80 PLUS ........................................................................................................................................................................................................
Bronze
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Strāvas stiprums
Strāva līnijā +3.3 V ........................................................................................................................................................................................................
24 A
Strāva līnijā +5 V ........................................................................................................................................................................................................
15 A
Strāva līnijā +12 V 1 ........................................................................................................................................................................................................
33 A
Strāva līnijā +12 V 2 ........................................................................................................................................................................................................
25 A
Strāva līnijā -12 V ........................................................................................................................................................................................................
0.3 A
Strāva līnijā +5 V Standby ........................................................................................................................................................................................................
3 A
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
