- Barošanas bloks CHIEFTEC BBS-500S Core 500w (BBS-500S)

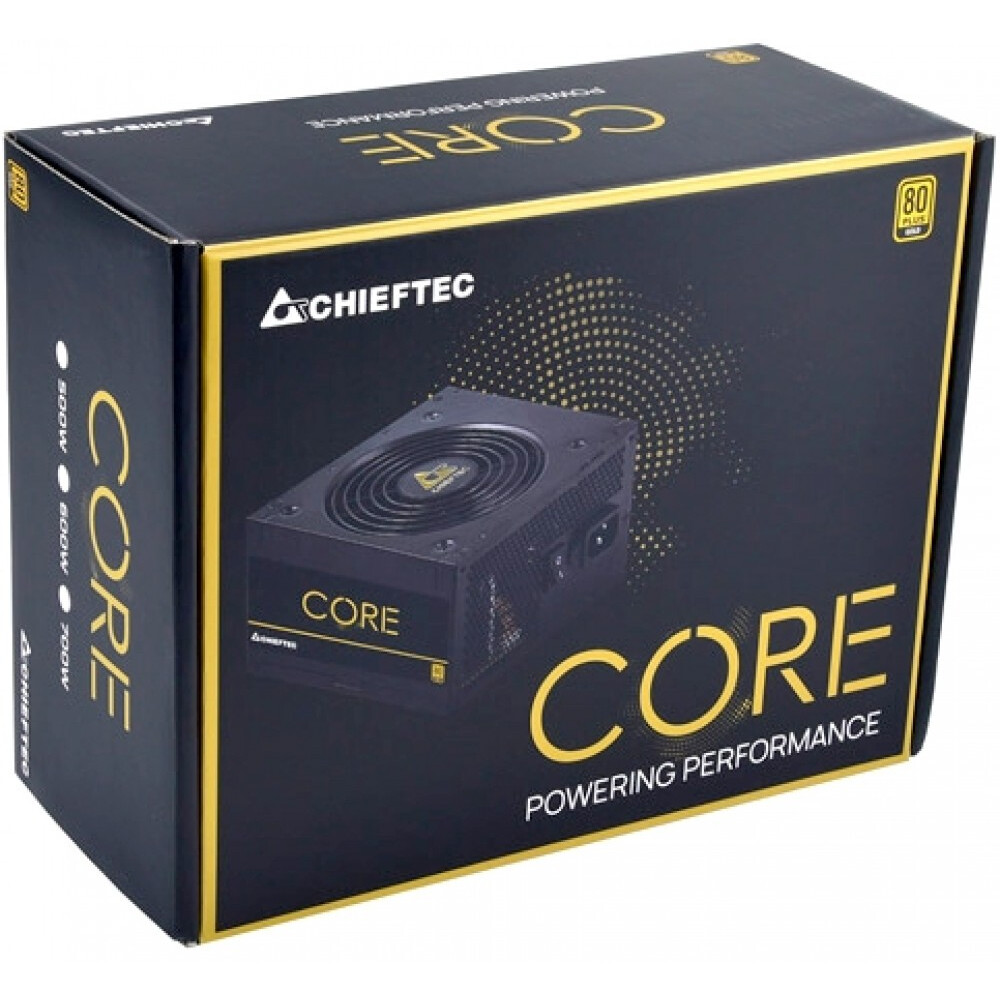

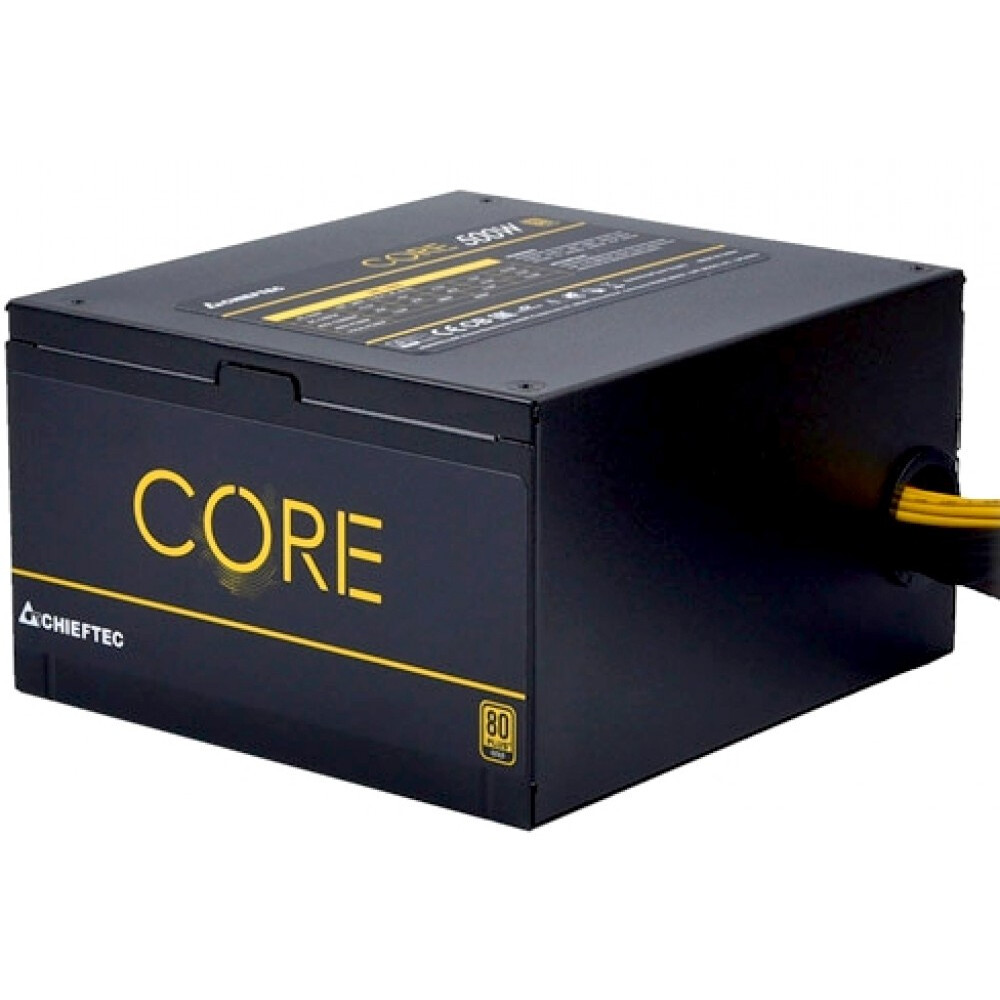

Barošanas bloks CHIEFTEC BBS-500S Core 500w (BBS-500S)
ID: 325338
Īsi par preci
- Jauda: 500 W
- Standarts: ATX12V 2.3
- PFC: aktīvs
- Ventilatora izmērs: 120 mm
- Sertifikāts 80 PLUS: Gold
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
BBS-500S
Jauda ........................................................................................................................................................................................................
500 W
Standarts ........................................................................................................................................................................................................
ATX12V 2.3
PFC ........................................................................................................................................................................................................
aktīvs
Ventilatora izmērs ........................................................................................................................................................................................................
120 mm
Strāvas stiprums
Strāva līnijā +3.3 V ........................................................................................................................................................................................................
18 A
Strāva līnijā +5 V ........................................................................................................................................................................................................
18 A
Strāva līnijā +12 V 1 ........................................................................................................................................................................................................
41 A
Strāva līnijā -12 V ........................................................................................................................................................................................................
0.3 A
Strāva līnijā +5 V Standby ........................................................................................................................................................................................................
2.5 A
Papildu
Pārsprieguma aizsardzība ........................................................................................................................................................................................................
jā
Pārslodzes aizsardzība ........................................................................................................................................................................................................
jā
Aizsardzība pret īsslēgumu ........................................................................................................................................................................................................
jā
Sertifikāts 80 PLUS ........................................................................................................................................................................................................
Gold
Mātesplates barošanas kabeļa garums ........................................................................................................................................................................................................
65 cm
Ligzdas
Mātesplates ligzdas veids ........................................................................................................................................................................................................
20+4 pin
4 +4-pin CPU ligzdu skaits ........................................................................................................................................................................................................
1
6+2-pin PCI-E ligzdu skaits ........................................................................................................................................................................................................
1
4-pin IDE (Molex) ligzdu skaits ........................................................................................................................................................................................................
3
15-pin SATA ligzdu skaits ........................................................................................................................................................................................................
4
4-pin Floppy ligzdu skaits ........................................................................................................................................................................................................
1
Papildus
Izmēri (PxAxD) ........................................................................................................................................................................................................
150 x 87 x 140 mm
Svars ........................................................................................................................................................................................................
2 kg
Garantija ........................................................................................................................................................................................................
12/24 men.
