- Barošanas bloks CHIEFTEC APB-500B8 Value 500w (APB-500B8)

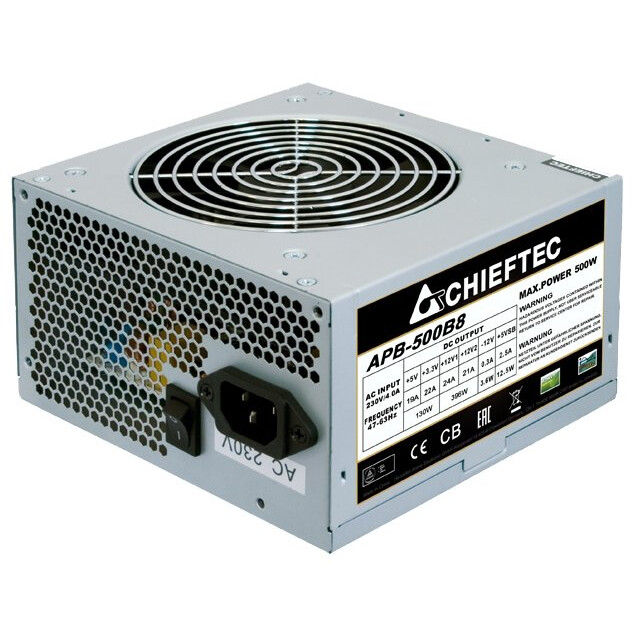

Barošanas bloks CHIEFTEC APB-500B8 Value 500w (APB-500B8)
ID: 261844
4.2
Modifikācija
Īsi par preci
- Jauda: 500 W
- Standarts: ATX12V 2.3
- PFC: aktīvs
- Ventilatora izmērs: 120 mm
- Sertifikāts 80 PLUS: nav
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
APB-500B8
Jauda ........................................................................................................................................................................................................
500 W
Standarts ........................................................................................................................................................................................................
ATX12V 2.3
PFC ........................................................................................................................................................................................................
aktīvs
Ventilatora izmērs ........................................................................................................................................................................................................
120 mm
Ligzdas
Mātesplates ligzdas veids ........................................................................................................................................................................................................
24 pin
4-pin CPU ligzdu skaits ........................................................................................................................................................................................................
1
4-pin IDE (Molex) ligzdu skaits ........................................................................................................................................................................................................
2
15-pin SATA ligzdu skaits ........................................................................................................................................................................................................
3
4-pin Floppy ligzdu skaits ........................................................................................................................................................................................................
1
Papildu
Pārsprieguma aizsardzība ........................................................................................................................................................................................................
jā
Pārslodzes aizsardzība ........................................................................................................................................................................................................
jā
Aizsardzība pret īsslēgumu ........................................................................................................................................................................................................
jā
Sertifikāts 80 PLUS ........................................................................................................................................................................................................
nav
Strāvas stiprums
Strāva līnijā +3.3 V ........................................................................................................................................................................................................
22 A
Strāva līnijā +5 V ........................................................................................................................................................................................................
19 A
Strāva līnijā +12 V 1 ........................................................................................................................................................................................................
24 A
Strāva līnijā +12 V 2 ........................................................................................................................................................................................................
21 A
Strāva līnijā -12 V ........................................................................................................................................................................................................
0.3 A
Strāva līnijā +5 V Standby ........................................................................................................................................................................................................
2.5 A
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
