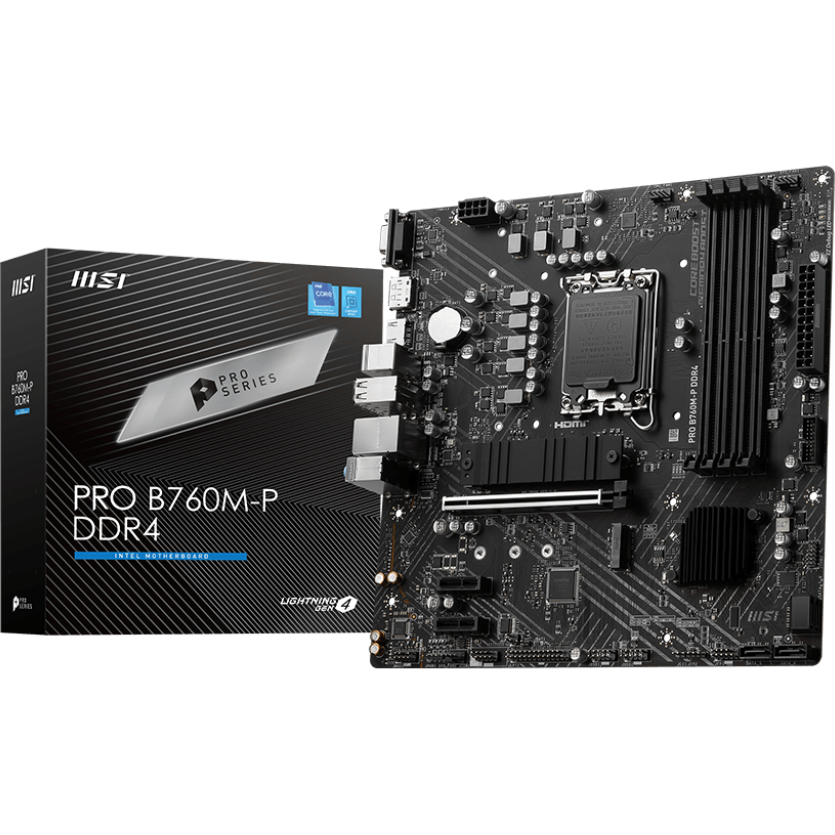

Pamatplate MSI PRO B760M-P (PRO B760M-P DDR4)
ID: 475658
Īsi par preci
- Socket: LGA 1700
- Mikroshēmu kopa (Chipset): Intel B760
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR4
- Paplašināšanas sloti: PCI-E 4.0 x16, 2 x PCI-E x1, 2 x PCI-E M.2
- Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mb/с)
- Ligzdas aizmugurējā panelī: 2 x PS/2, 4 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 Type-C, VGA, HDMI, DisplayPort, RJ-45
- Formfaktors: mATX
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
PRO B760M-P DDR4
Socket ........................................................................................................................................................................................................
LGA 1700
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
Intel B760
Saskarnes
Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
2 x PS/2, 4 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 Type-C, VGA, HDMI, DisplayPort, RJ-45
Barošanas apakšsistēmas radiators (mosfeti) ........................................................................................................................................................................................................
jā
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 4.0 x16, 2 x PCI-E x1, 2 x PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
- Key M, 2280/2260/2242 (PCIe 4.0 x4);
- Key M, 2280/2260/2242 (PCIe 4.0 x4 & SATA).
- Key M, 2280/2260/2242 (PCIe 4.0 x4 & SATA).
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR4
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Audio/Video
Integrētais video ........................................................................................................................................................................................................
jā (ja tiek izmantots procesors ar video kodolu)
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek ALC897
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
Gigabit Ethernet (10/100/1000 Mb/с)
Tīkla kontrolieris ........................................................................................................................................................................................................
Realtek RTL8111H
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/с)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 5, 10
Papildu
Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................
2 x 4-pin
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
8-pin
Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................
2 x USB 2.0, USB 3.2 Gen1
RGB 12V savienotāji uz plates ........................................................................................................................................................................................................
4-pin
Formfaktors ........................................................................................................................................................................................................
mATX
Piegādes veids ........................................................................................................................................................................................................
Retail
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
