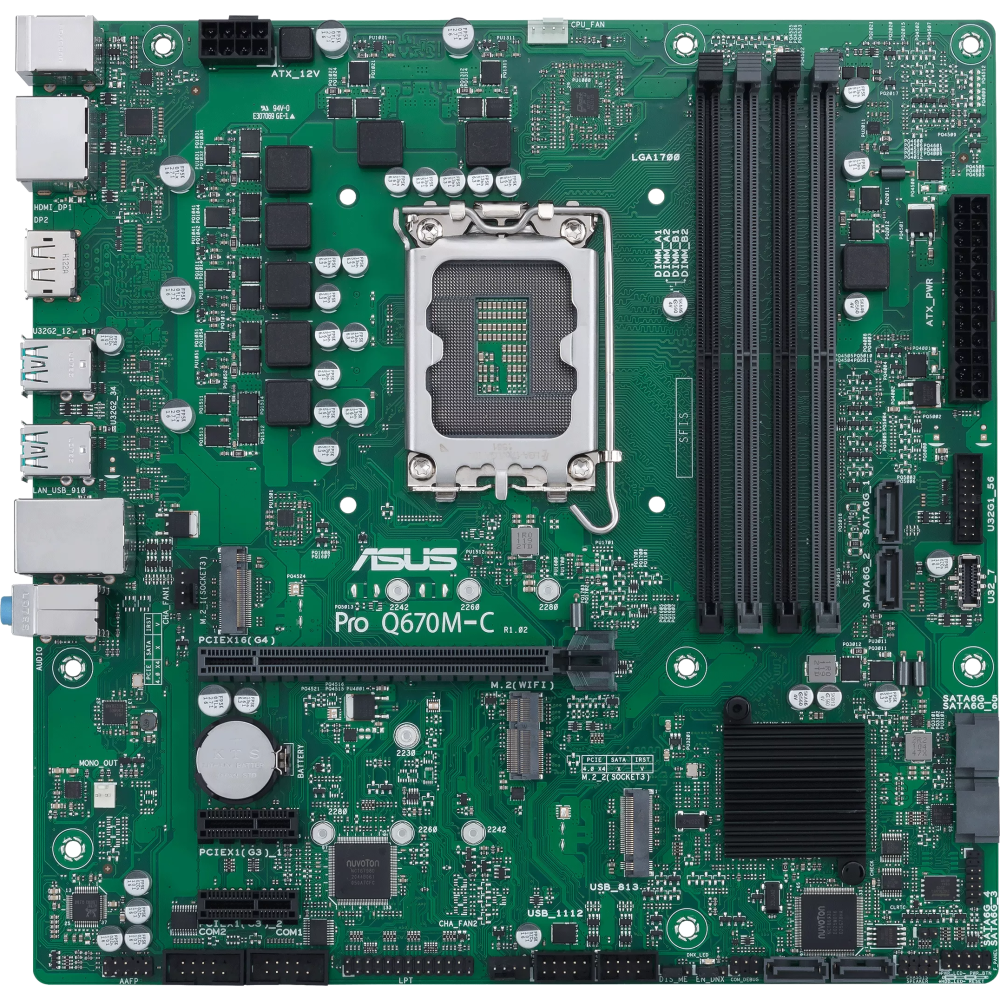

Pamatplate ASUS Pro Q670M-C-CSM (PRO Q670M-C-CSM)

ID: 461757

Īsi par preci

Socket: LGA 1700
Mikroshēmu kopa (Chipset): Intel Q670
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E 4.0 x16, 2 x PCI-E x1, 3 x PCI-E M.2
Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mb/c)
Ligzdas aizmugurējā panelī: 2 x PS/2, 2 x USB 2.0, 4 x USB 3.2 Gen2, HDMI, 2 x DisplayPort, RJ-45
Formfaktors: mATX

Pilnas specifikācijas

202,³⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar Lateko līzings

Pamatplate ASUS Pro Q670M-C-CSM (PRO Q670M-C-CSM)

202,³⁰ €

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

ASUS

Ražotāja kods ........................................................................................................................................................................................................

PRO Q670M-C-CSM

Socket ........................................................................................................................................................................................................

LGA 1700

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel Q670

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

2 x PS/2, 2 x USB 2.0, 4 x USB 3.2 Gen2, HDMI, 2 x DisplayPort, RJ-45

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 4.0 x16, 2 x PCI-E x1, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

- Key M, 2242/2260/2280 (PCIe 4.0 x4);
- Key M, 2242/2260/2280 (PCIe 4.0 x4);
- Key E, for the Wi-Fi module.

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Audio/Video

Integrētais video ........................................................................................................................................................................................................

jā (ja tiek izmantots procesors ar video kodolu)

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Gigabit Ethernet (10/100/1000 Mb/c)

Tīkla kontrolieris ........................................................................................................................................................................................................

Intel

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

6 x SATA-III (6 Gb/с)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

2 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen1 Type-C

Formfaktors ........................................................................................................................................................................................................

mATX

Piegādes veids ........................................................................................................................................................................................................

Retail

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

zaļš

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asus.com
