- Pamatplate MSI MAG Z790 TOMAHAWK WIFI (MAG Z790 TOMAHAWK WIFI DDR4)

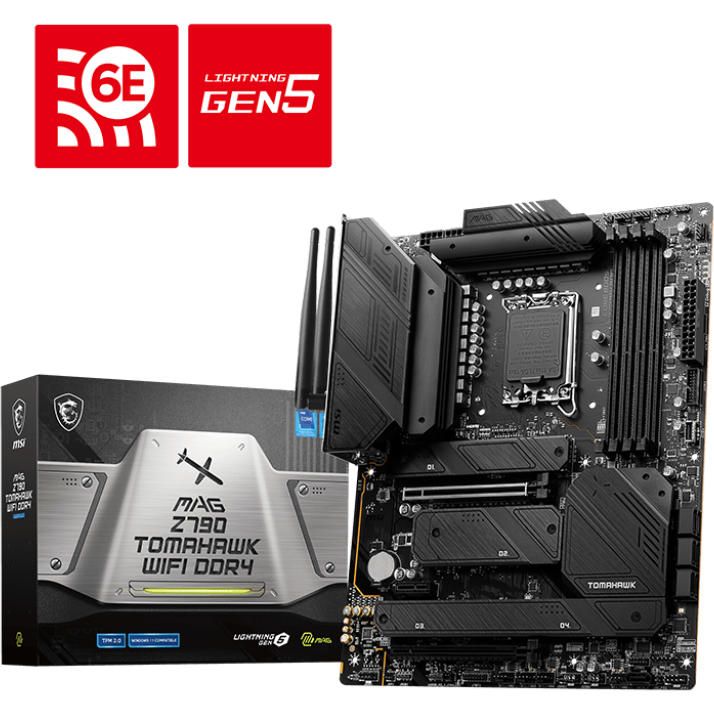

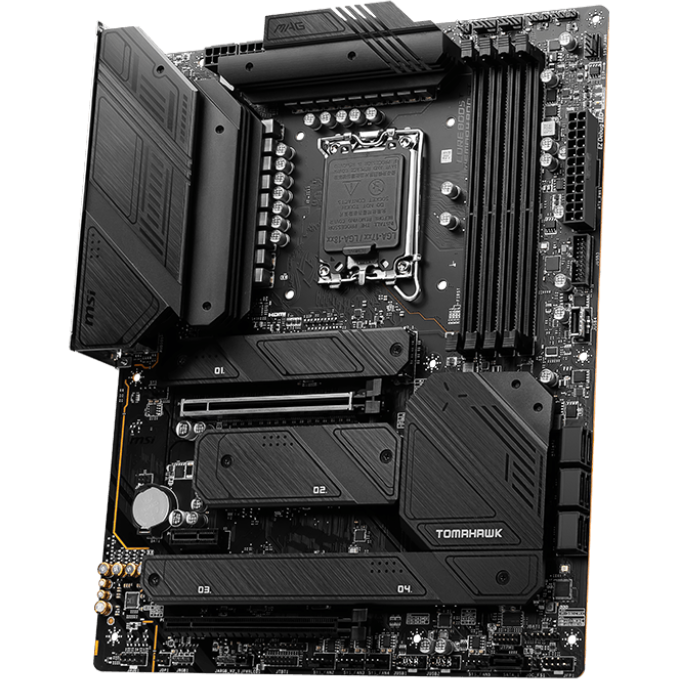

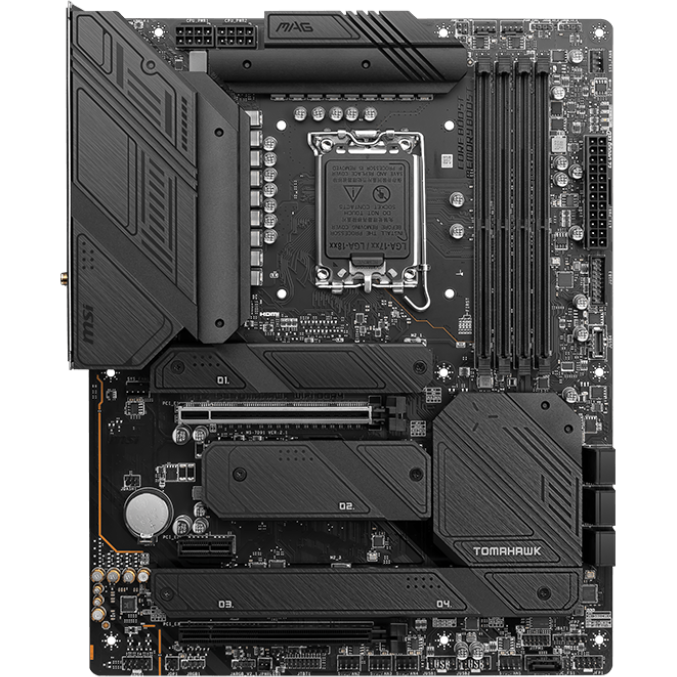

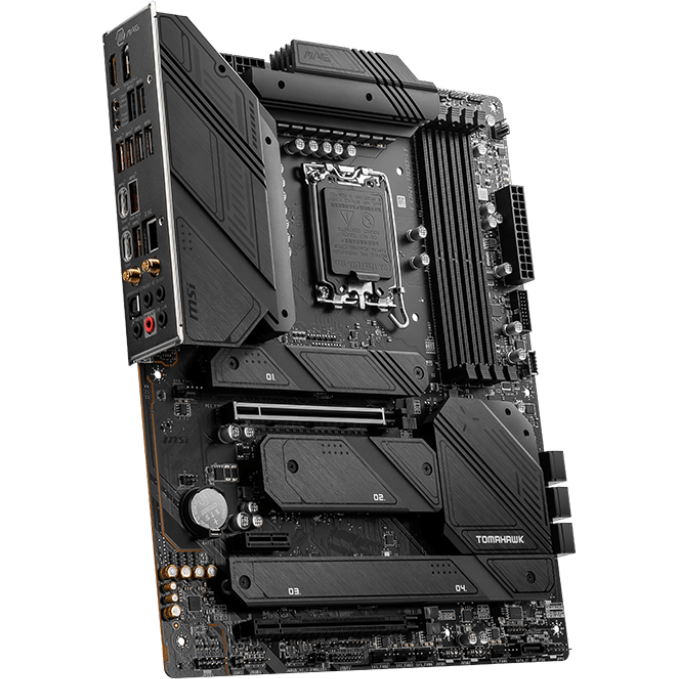

Pamatplate MSI MAG Z790 TOMAHAWK WIFI (MAG Z790 TOMAHAWK WIFI DDR4)
ID: 459381
Īsi par preci
- Socket: LGA 1700
- Mikroshēmu kopa (Chipset): Intel Z790
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR4
- Paplašināšanas sloti: PCI-E 5.0 x16, PCI-E 4.0 x16, PCI-E x1, 4 x PCI-E M.2
- Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/с), Wi-Fi, Bluetooth
- Ligzdas aizmugurējā panelī: 4 x USB 3.2 Gen1, 4 x USB 3.2 Gen2, USB 3.2 Gen2 Type-C, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)
- Formfaktors: ATX
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
MAG Z790 TOMAHAWK WIFI DDR4
Socket ........................................................................................................................................................................................................
LGA 1700
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
Intel Z790
Saskarnes

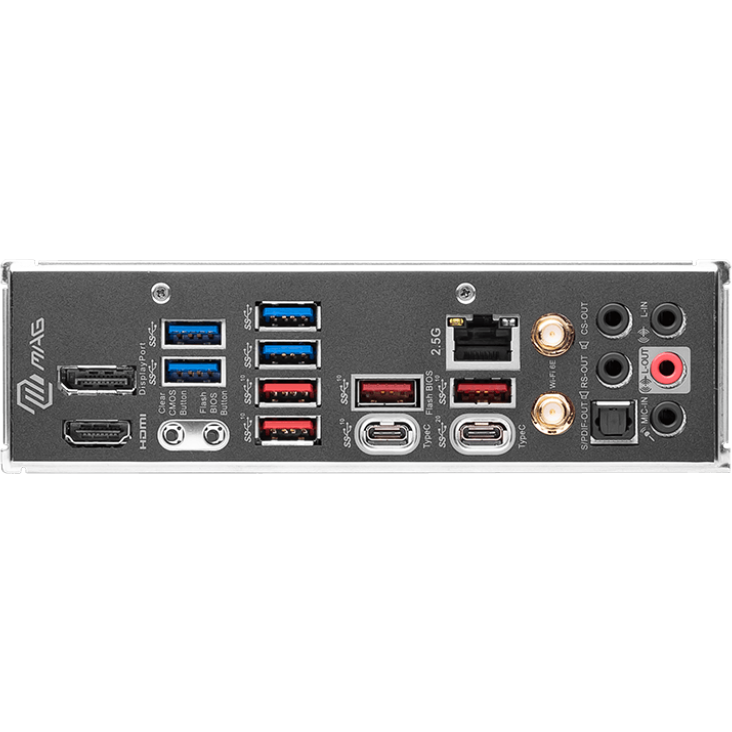

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
4 x USB 3.2 Gen1, 4 x USB 3.2 Gen2, USB 3.2 Gen2 Type-C, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)
Barošanas apakšsistēmas radiators (mosfeti) ........................................................................................................................................................................................................
jā
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
7 x SATA-III (6 Gb/с)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 5, 10
Audio/Video
Integrētais video ........................................................................................................................................................................................................
jā (ja tiek izmantots procesors ar video kodolu)
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek ALC4080
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 5.0 x16, PCI-E 4.0 x16, PCI-E x1, 4 x PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
- Key M, 22110/2280/2260 (PCIe 4.0 x4);
- Key M, 2280/2260 (PCIe 4.0 x4);
- 2x Key M, 2280/2260/2242 (PCIe 4.0 x4 & SATA).
- Key M, 2280/2260 (PCIe 4.0 x4);
- 2x Key M, 2280/2260/2242 (PCIe 4.0 x4 & SATA).
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
x16/x4
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mb/с), Wi-Fi, Bluetooth
Tīkla kontrolieris ........................................................................................................................................................................................................
Intel
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR4
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Papildu
Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................
6 x 4-pin
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
2 x 8-pin
Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................
2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 Type-C
ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................
3-pin
RGB 12V savienotāji uz plates ........................................................................................................................................................................................................
3 x 4-pin
Formfaktors ........................................................................................................................................................................................................
ATX
Piegādes veids ........................................................................................................................................................................................................
Retail
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
