- Barošanas bloks be quiet! POWER ZONE 2 750W (BP006EU)

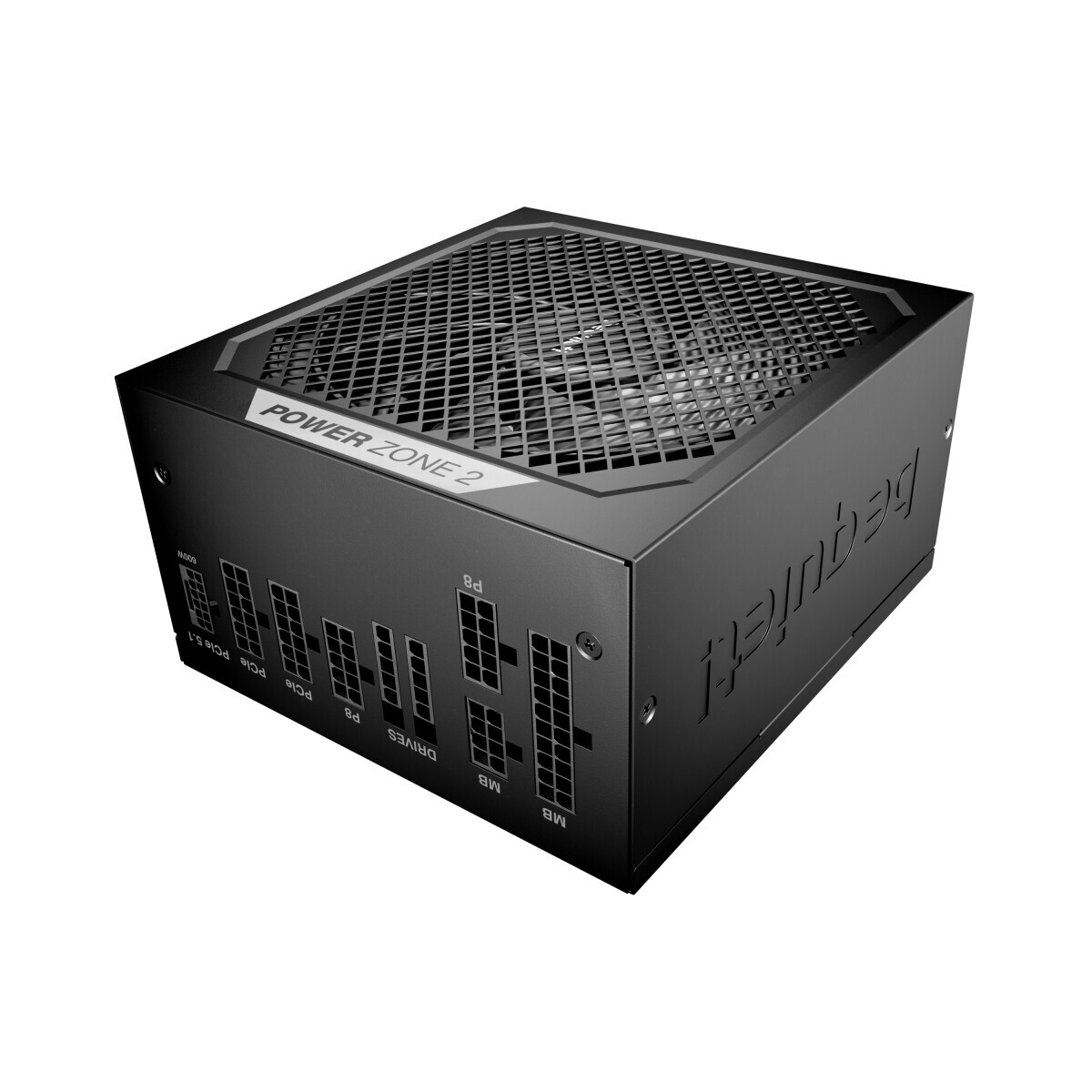

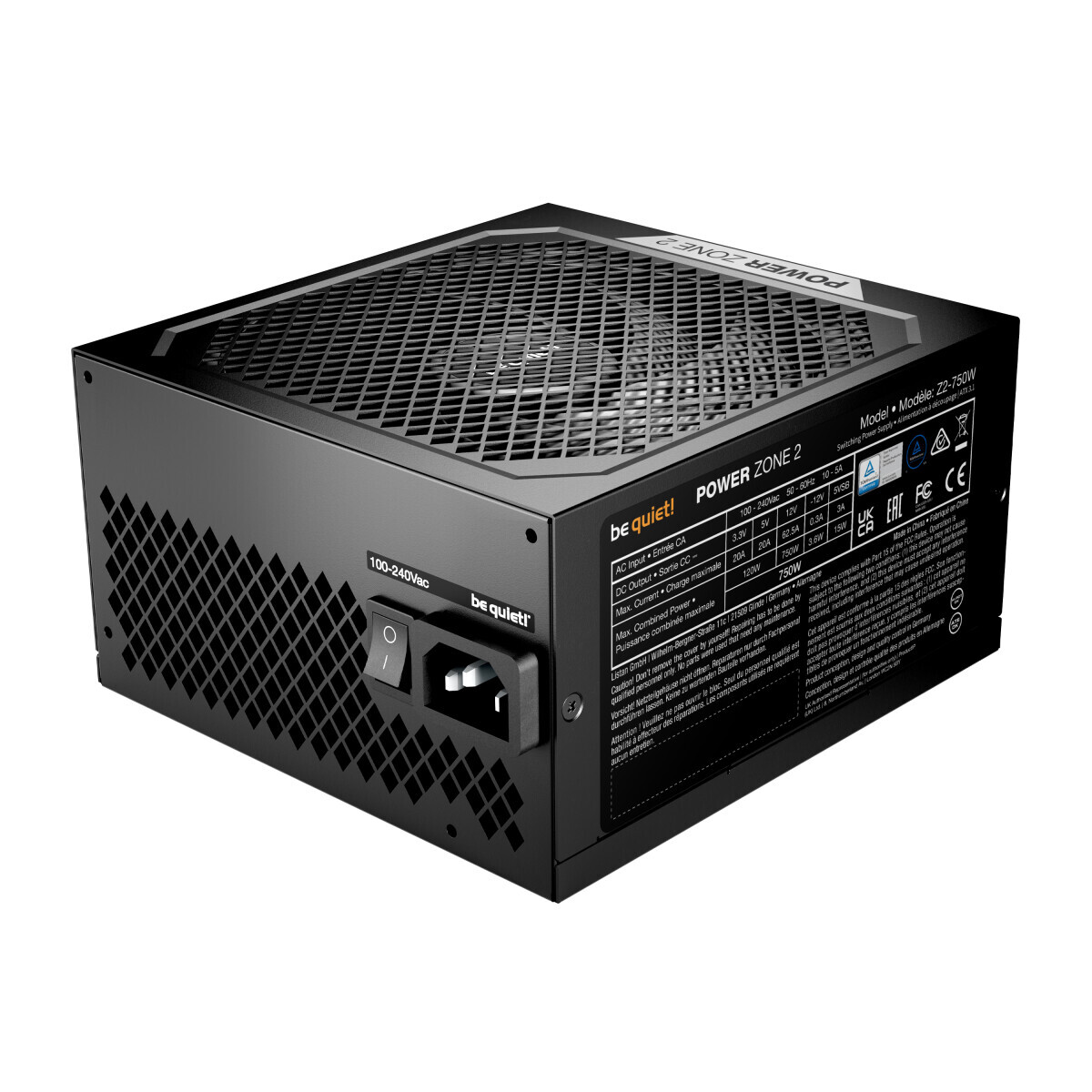

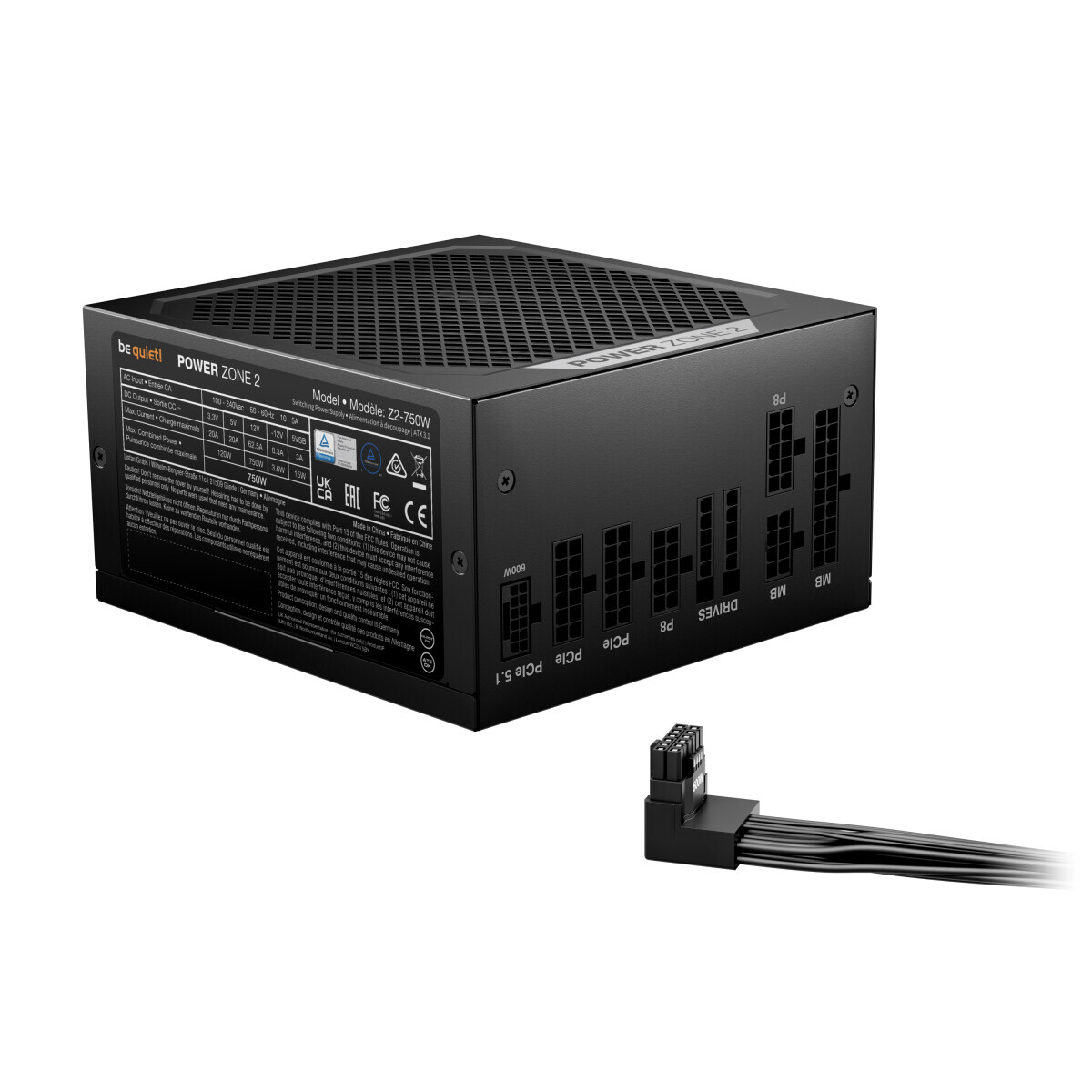

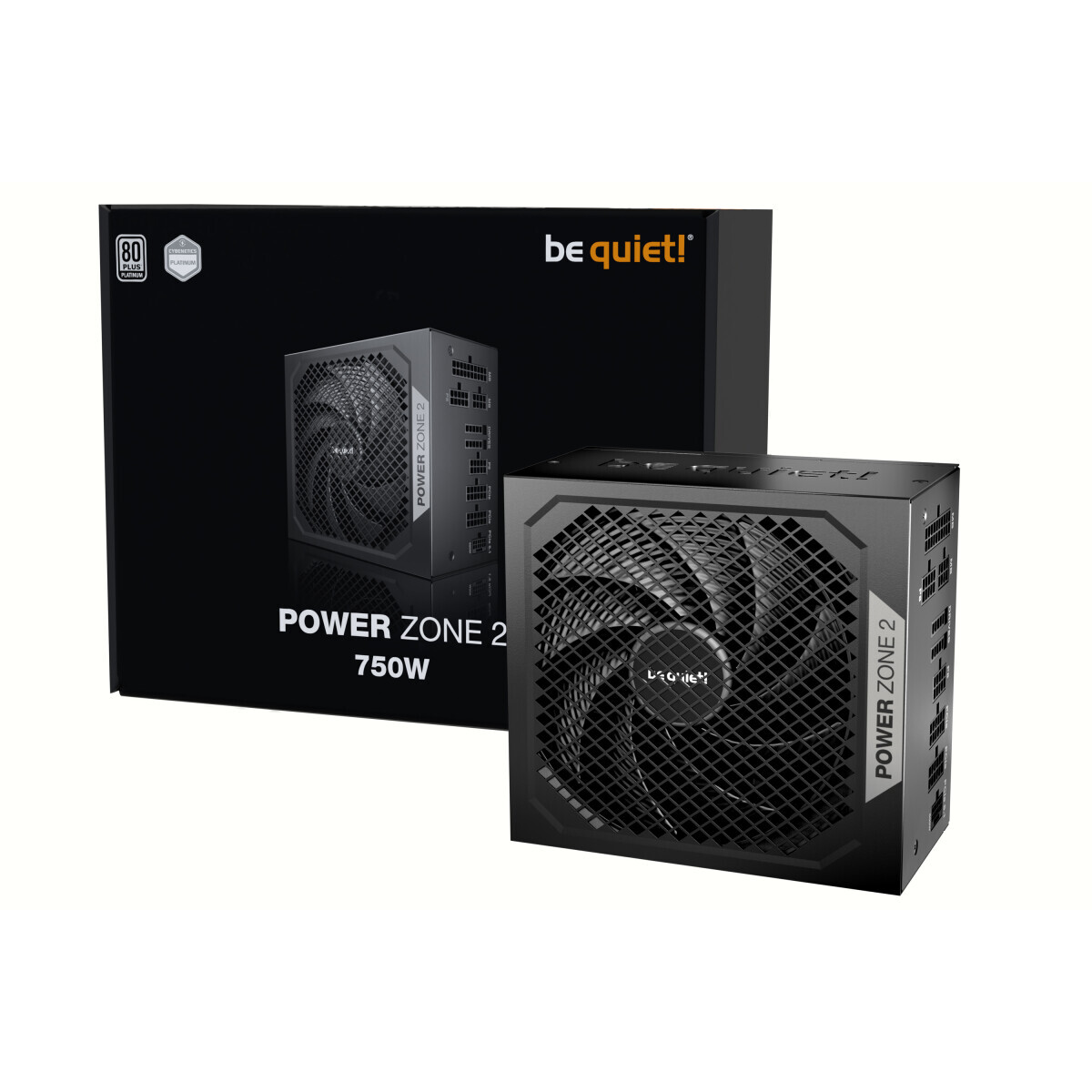

Barošanas bloks be quiet! POWER ZONE 2 750W (BP006EU)
ID: 43524
Īsi par preci
- Jauda: 750 W
- Standarts: ATX12V
- PFC: aktīvs
- Ventilatora izmērs: 140 mm
- Sertifikāts 80 PLUS: Platinum
- Noņemami kabeļi: Jā
Pilnas specifikācijas
Basic
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
BP006EU
Jauda ........................................................................................................................................................................................................
750 W
Standarts ........................................................................................................................................................................................................
ATX12V
PFC ........................................................................................................................................................................................................
aktīvs
Ventilatora izmērs ........................................................................................................................................................................................................
140 mm
Papildu
Pārsprieguma aizsardzība ........................................................................................................................................................................................................
jā
Pārslodzes aizsardzība ........................................................................................................................................................................................................
jā
Aizsardzība pret īsslēgumu ........................................................................................................................................................................................................
jā
Sertifikāts 80 PLUS ........................................................................................................................................................................................................
Platinum
Sertifikāts LAMBDA ........................................................................................................................................................................................................
A+

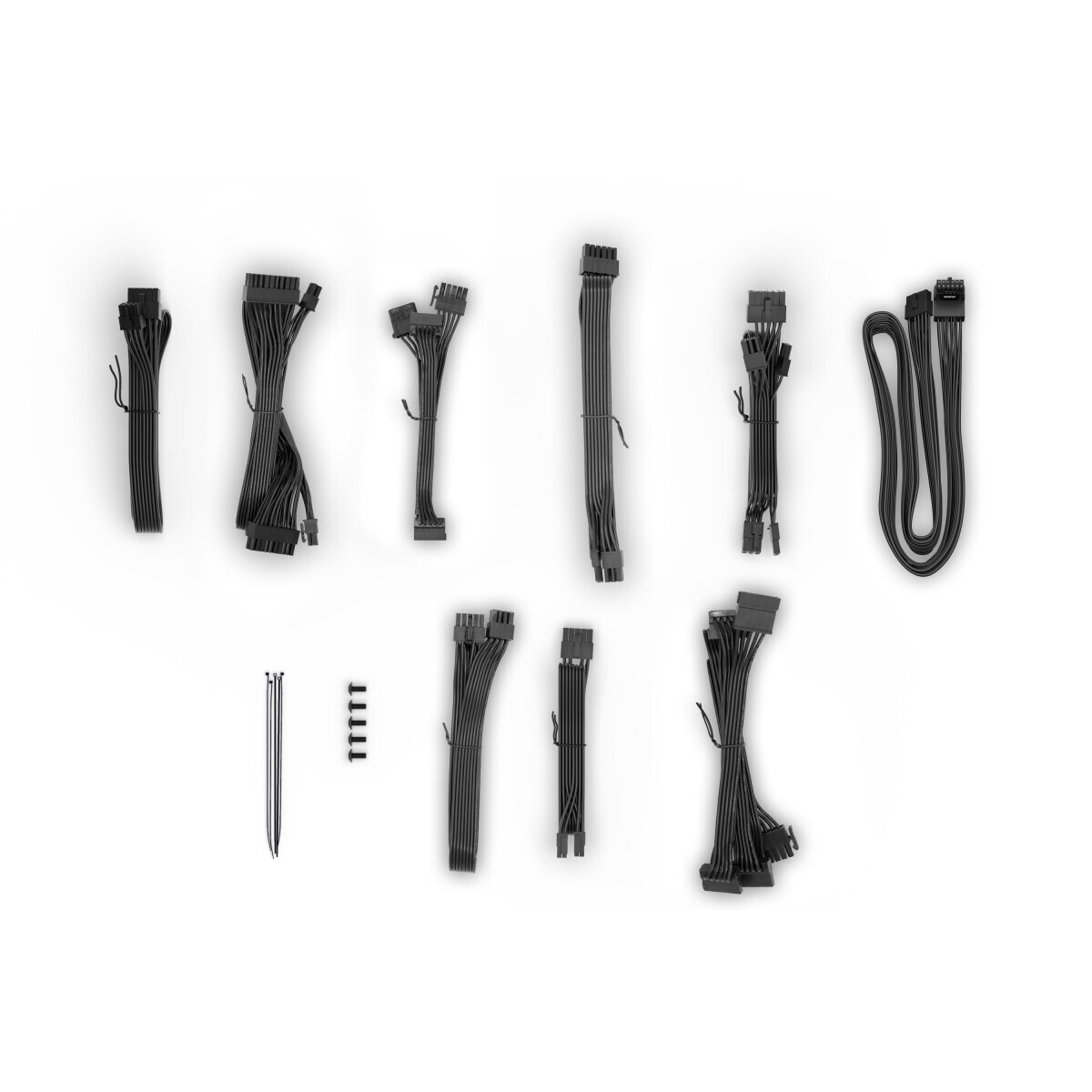

Noņemami kabeļi ........................................................................................................................................................................................................
jā
Mātesplates barošanas kabeļa garums ........................................................................................................................................................................................................
60 cm
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
metāls
Strāvas stiprums
Strāva līnijā +3.3 V ........................................................................................................................................................................................................
20 A
Strāva līnijā +5 V ........................................................................................................................................................................................................
20 A
Strāva līnijā +12 V 1 ........................................................................................................................................................................................................
83.3 A
Strāva līnijā -12 V ........................................................................................................................................................................................................
0.5 A
Strāva līnijā +5 V Standby ........................................................................................................................................................................................................
3 A
Ligzdas
Mātesplates ligzdas veids ........................................................................................................................................................................................................
20+4 pin
4-pin CPU ligzdu skaits ........................................................................................................................................................................................................
1
4 +4-pin CPU ligzdu skaits ........................................................................................................................................................................................................
1
8-pin CPU ligzdu skaits ........................................................................................................................................................................................................
1
6-pin PCI-E ligzdu skaits ........................................................................................................................................................................................................
1
6+2-pin PCI-E ligzdu skaits ........................................................................................................................................................................................................
3
12+4-pin PCI-E 5.0 (12VHPWR) ligzdu skaits ........................................................................................................................................................................................................
1
15-pin SATA ligzdu skaits ........................................................................................................................................................................................................
7
Papildus
Izmēri (PxAxD) ........................................................................................................................................................................................................
150 x 86 x 160 mm
Svars ........................................................................................................................................................................................................
2.82 kg
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
