- Barošanas bloks CHIEFTEC APB-600B8 VALUE 600w (APB-600B8-BK)

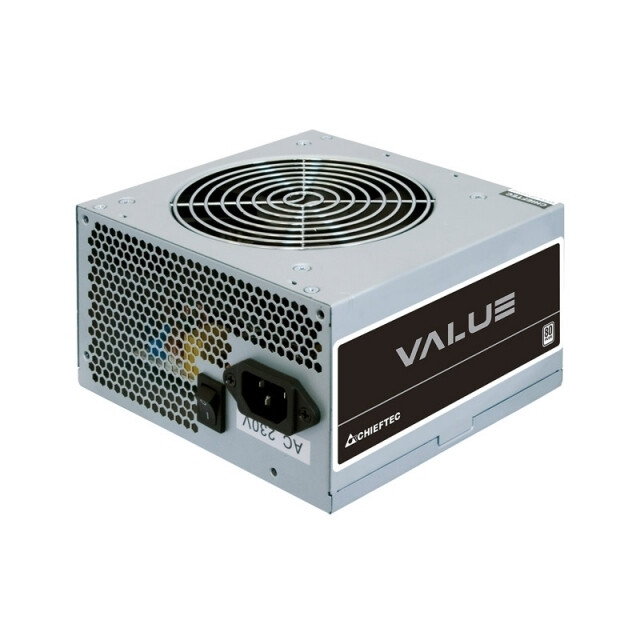

Barošanas bloks CHIEFTEC APB-600B8 VALUE 600w (APB-600B8-BK)
ID: 43275
Īsi par preci
- Jauda: 600 W
- Standarts: ATX12V 2.3
- PFC: aktīvs
- Ventilatora izmērs: 120 mm
- Sertifikāts 80 PLUS: Standard
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
APB-600B8-BK
Jauda ........................................................................................................................................................................................................
600 W
Standarts ........................................................................................................................................................................................................
ATX12V 2.3
PFC ........................................................................................................................................................................................................
aktīvs
Ventilatora izmērs ........................................................................................................................................................................................................
120 mm
Strāvas stiprums
Strāva līnijā +3.3 V ........................................................................................................................................................................................................
20 A
Strāva līnijā +5 V ........................................................................................................................................................................................................
20 A
Strāva līnijā +12 V 1 ........................................................................................................................................................................................................
46 A
Strāva līnijā -12 V ........................................................................................................................................................................................................
0.3 A
Strāva līnijā +5 V Standby ........................................................................................................................................................................................................
2.5 A
Papildu
Pārsprieguma aizsardzība ........................................................................................................................................................................................................
jā
Pārslodzes aizsardzība ........................................................................................................................................................................................................
jā
Aizsardzība pret īsslēgumu ........................................................................................................................................................................................................
jā
Sertifikāts 80 PLUS ........................................................................................................................................................................................................
Standard
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
metāls
Ligzdas
Mātesplates ligzdas veids ........................................................................................................................................................................................................
20+4 pin
4 +4-pin CPU ligzdu skaits ........................................................................................................................................................................................................
1
6+2-pin PCI-E ligzdu skaits ........................................................................................................................................................................................................
2
4-pin IDE (Molex) ligzdu skaits ........................................................................................................................................................................................................
2
15-pin SATA ligzdu skaits ........................................................................................................................................................................................................
4
4-pin Floppy ligzdu skaits ........................................................................................................................................................................................................
1
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
