- Pamatplate ASUS PRIME B550M-A WIFI II (PRIME B550M-A WIFI II)

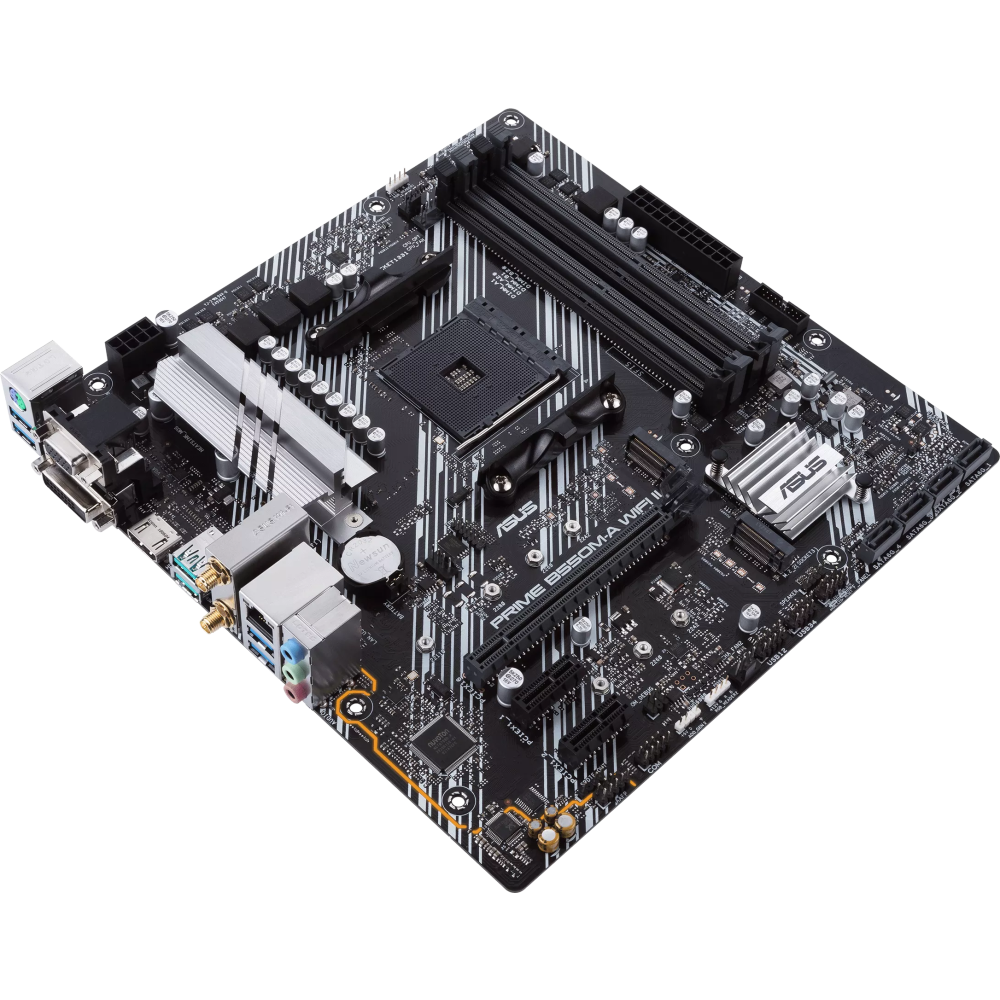

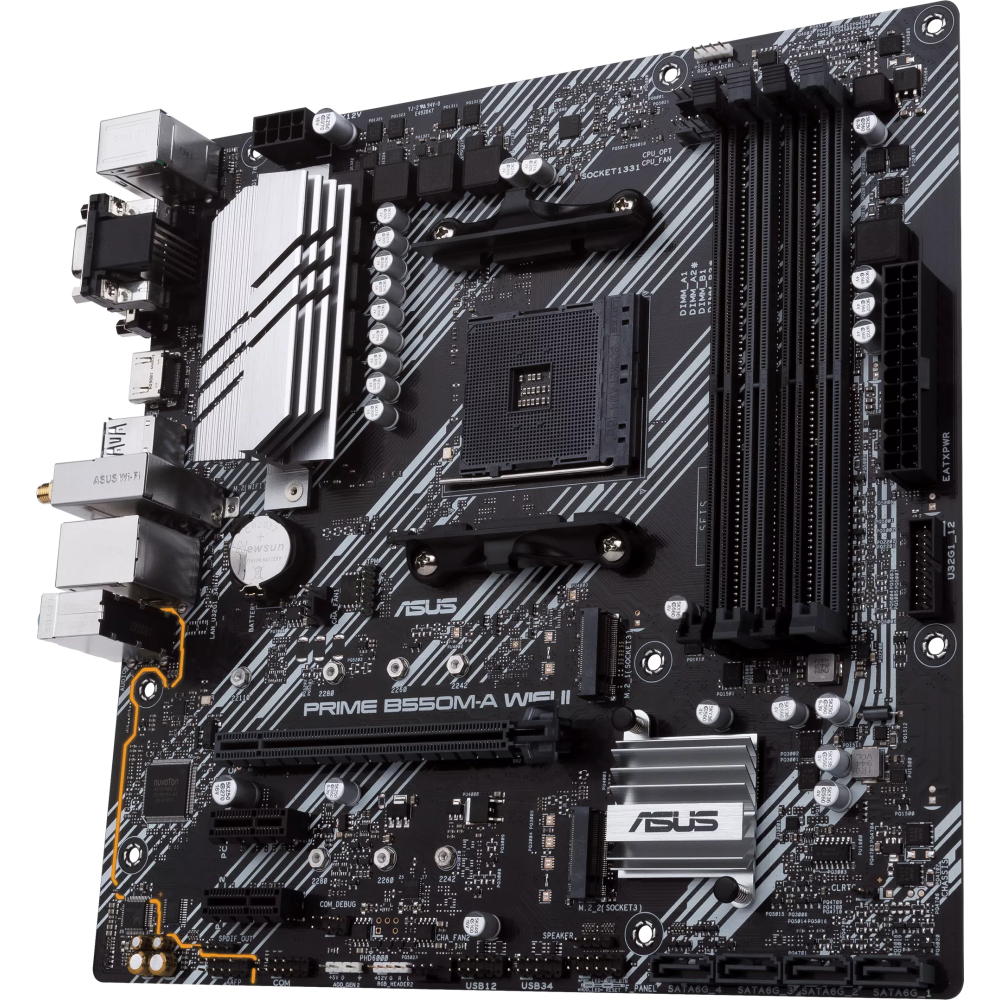

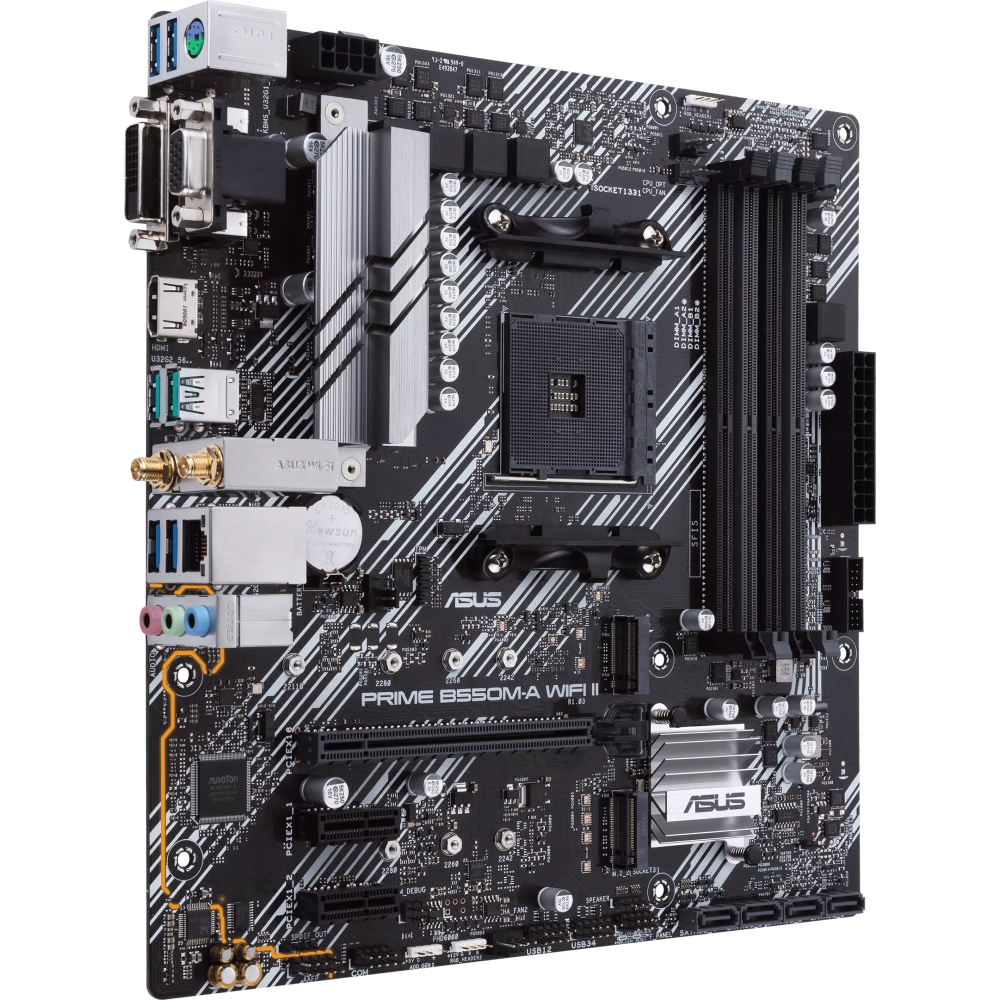

Pamatplate ASUS PRIME B550M-A WIFI II (PRIME B550M-A WIFI II)
ID: 418218
Modifikācija
Īsi par preci
- Socket: AM4
- Mikroshēmu kopa (Chipset): AMD B550
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR4
- Paplašināšanas sloti: PCI-E 4.0 x16, 2 x PCI-E x1, 2 x PCI-E M.2
- Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mb/с), Wi-Fi, Bluetooth
- Ligzdas aizmugurējā panelī: PS/2, 4 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, VGA, DVI, HDMI, RJ-45
- Formfaktors: mATX
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
PRIME B550M-A WIFI II
Socket ........................................................................................................................................................................................................
AM4
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B550
Saskarnes

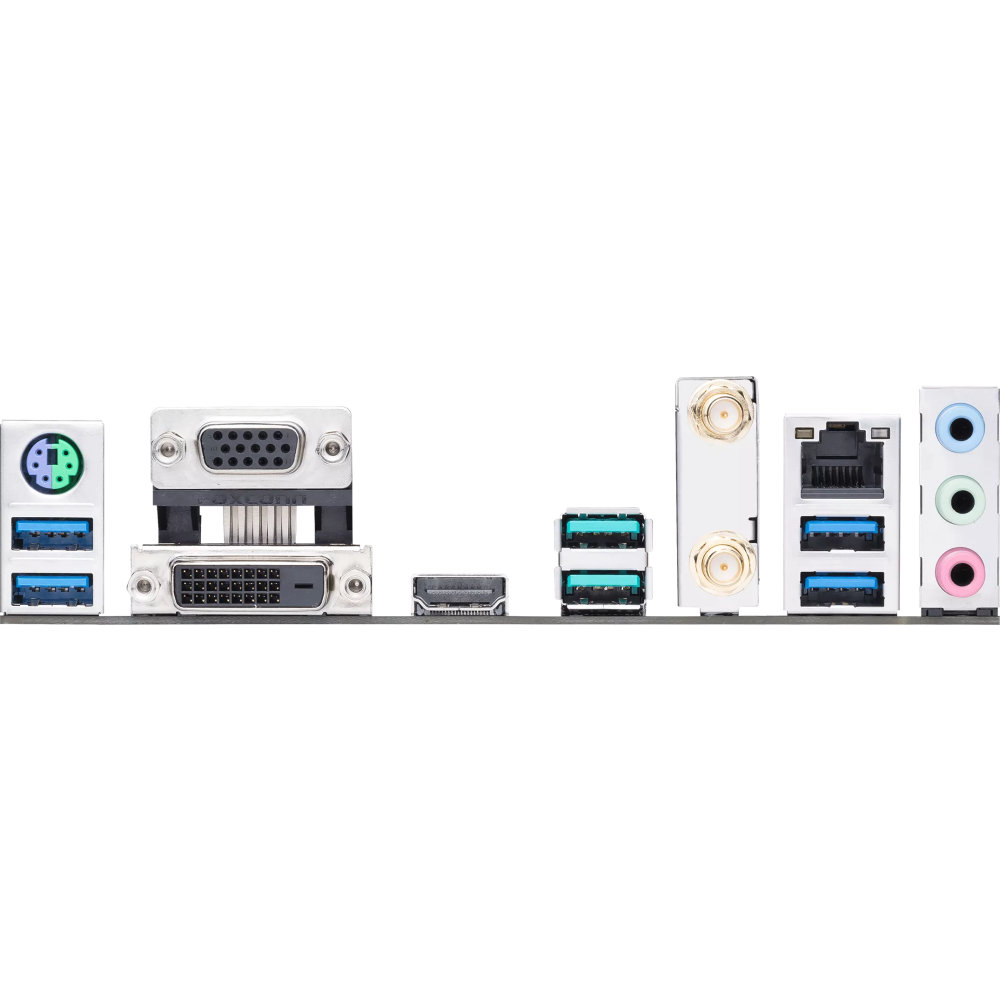

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
PS/2, 4 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, VGA, DVI, HDMI, RJ-45
Barošanas apakšsistēmas radiators (mosfeti) ........................................................................................................................................................................................................
jā
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 4.0 x16, 2 x PCI-E x1, 2 x PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
- Key M, 2242/2260/2280/22110 (PCIe 4.0 x4 & SATA);
- Key M, 2242/2260/2280 (PCIe 3.0 x4 & SATA).
- Key M, 2242/2260/2280 (PCIe 3.0 x4 & SATA).
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR4
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Audio/Video
Integrētais video ........................................................................................................................................................................................................
jā (ja tiek izmantots procesors ar video kodolu)
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
Gigabit Ethernet (10/100/1000 Mb/с), Wi-Fi, Bluetooth
Tīkla kontrolieris ........................................................................................................................................................................................................
Realtek
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/с)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 10
Papildu
Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................
2 x 4-pin
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
8-pin
Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................
2 x USB 2.0, USB 3.2 Gen1
ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................
3-pin
RGB 12V savienotāji uz plates ........................................................................................................................................................................................................
2 x 4-pin
Formfaktors ........................................................................................................................................................................................................
mATX

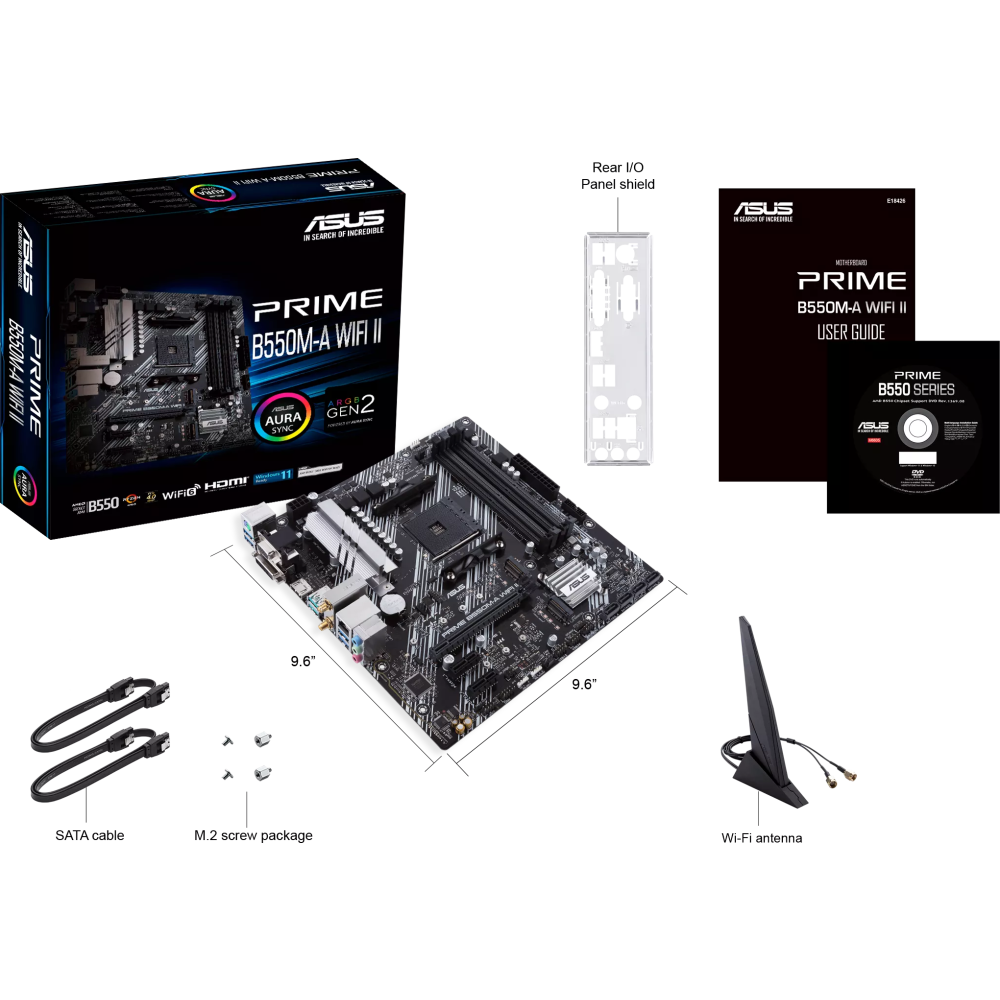

Piegādes veids ........................................................................................................................................................................................................
Retail
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns, pelēks
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
