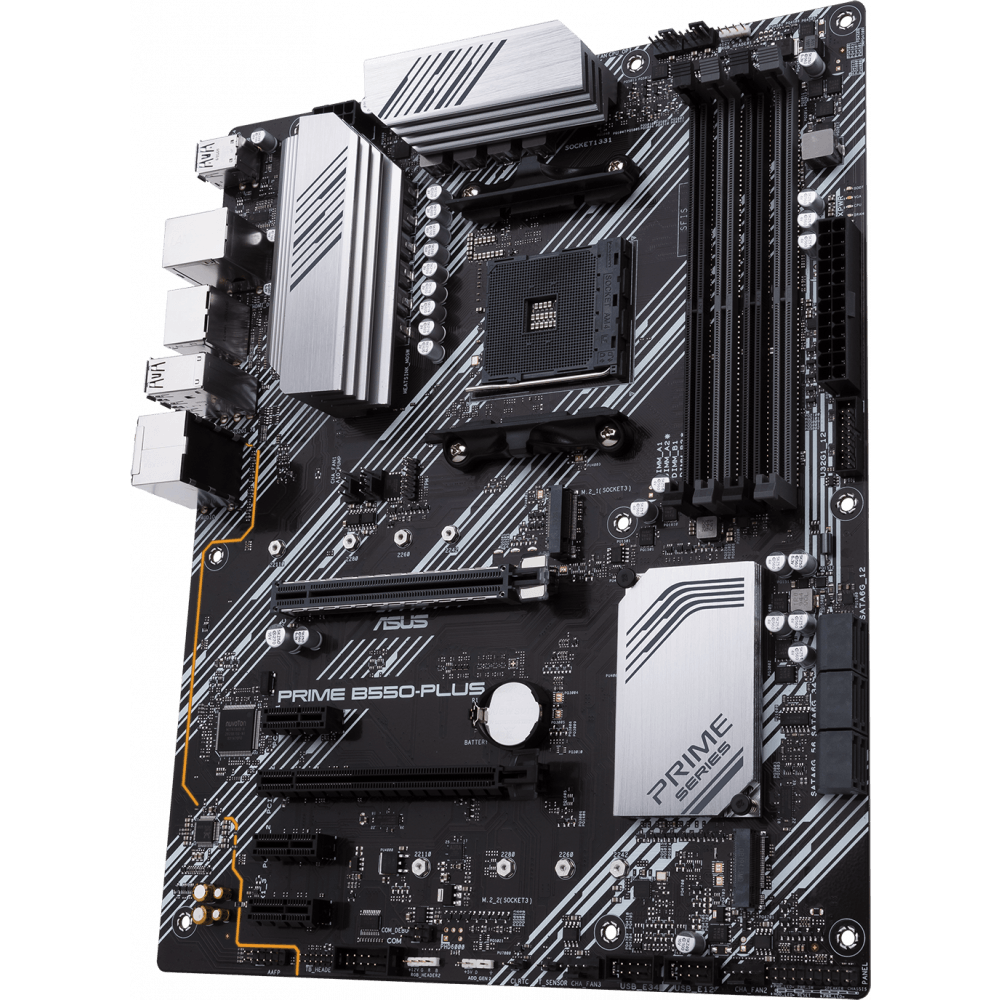

Pamatplate ASUS PRIME B550-PLUS (PRIME B550-PLUS)

Name: Pamatplate ASUS PRIME B550-PLUS (PRIME B550-PLUS)
Brand: ASUS
SKU: 357330
Availability: OutOfStock
Rating: 4.3 (12 reviews)

Pamatplate ASUS PRIME B550-PLUS (PRIME B550-PLUS) - foto 2

Pamatplate ASUS PRIME B550-PLUS (PRIME B550-PLUS) - foto 3

Pamatplate ASUS PRIME B550-PLUS (PRIME B550-PLUS) - foto 4

ID: 357330

4.3

Īsi par preci

Socket: AM4
Mikroshēmu kopa (Chipset): AMD B550
Atmiņas slotu skaits: 4
Atmiņas veids: DDR4
Paplašināšanas sloti: PCI-E 4.0 x16, PCI-E 3.0 x16, 3 x PCI-E x1, 2 x PCI-E M.2
Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mb/с)
Ligzdas aizmugurējā panelī: 2 x USB 2.0, 4 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)
Apgaismojums: Jā
Formfaktors: ATX

Pilnas specifikācijas

Nav noliktavā

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

ASUS

Ražotāja kods ........................................................................................................................................................................................................

PRIME B550-PLUS

Uzmanību ........................................................................................................................................................................................................

1st and 2nd generation Ryzen processors are not officially supported on the board with the B550 chipset

Socket ........................................................................................................................................................................................................

AM4

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

AMD B550

Saskarnes

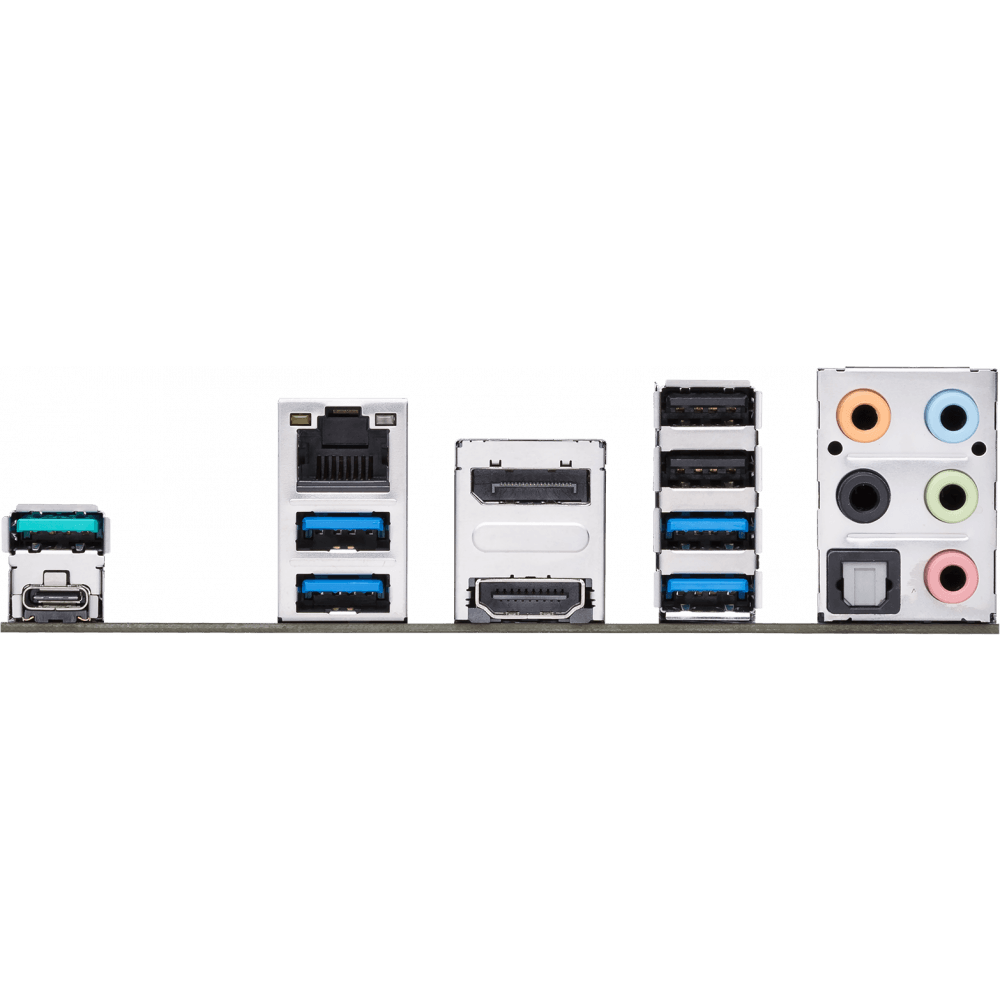

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

2 x USB 2.0, 4 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)

Barošanas apakšsistēmas radiators (mosfeti) ........................................................................................................................................................................................................

jā

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

6 x SATA-III (6 Gb/с)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 10

Audio/Video

Integrētais video ........................................................................................................................................................................................................

jā (ja tiek izmantots procesors ar video kodolu)

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC887

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 4.0 x16, PCI-E 3.0 x16, 3 x PCI-E x1, 2 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

3rd Gen AMD Ryzen Processors:
1 x M.2 Socket 3, M key, 2242/2260/2280/22110 (SATA & PCIe 4.0 x4 mode).
AMD B550 Chipset:
1 x M.2 Socket 3, M key, 2242/2260/2280/22110 (SATA & PCIE 3.0 x 4 mode).

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

3rd Gen AMD Ryzen Processors:
1 x PCIe 4.0 x16 (x16 mode).
AMD B550 Chipset:
1 x PCIe 3.0 x16 (x4 mode).

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Gigabit Ethernet (10/100/1000 Mb/с)

Tīkla kontrolieris ........................................................................................................................................................................................................

Realtek RTL8111H

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR4

Atmiņas slotu skaits ........................................................................................................................................................................................................

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

4 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1

ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................

3-pin

RGB 12V savienotāji uz plates ........................................................................................................................................................................................................

2 x 4-pin

Apgaismojums ........................................................................................................................................................................................................

jā

Formfaktors ........................................................................................................................................................................................................

ATX

Piegādes veids ........................................................................................................................................................................................................

Retail

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

melns, sudraba

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asus.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
