- Pamatplate ASUS TUF GAMING B550M-PLUS (TUF GAMING B550M-PLUS)

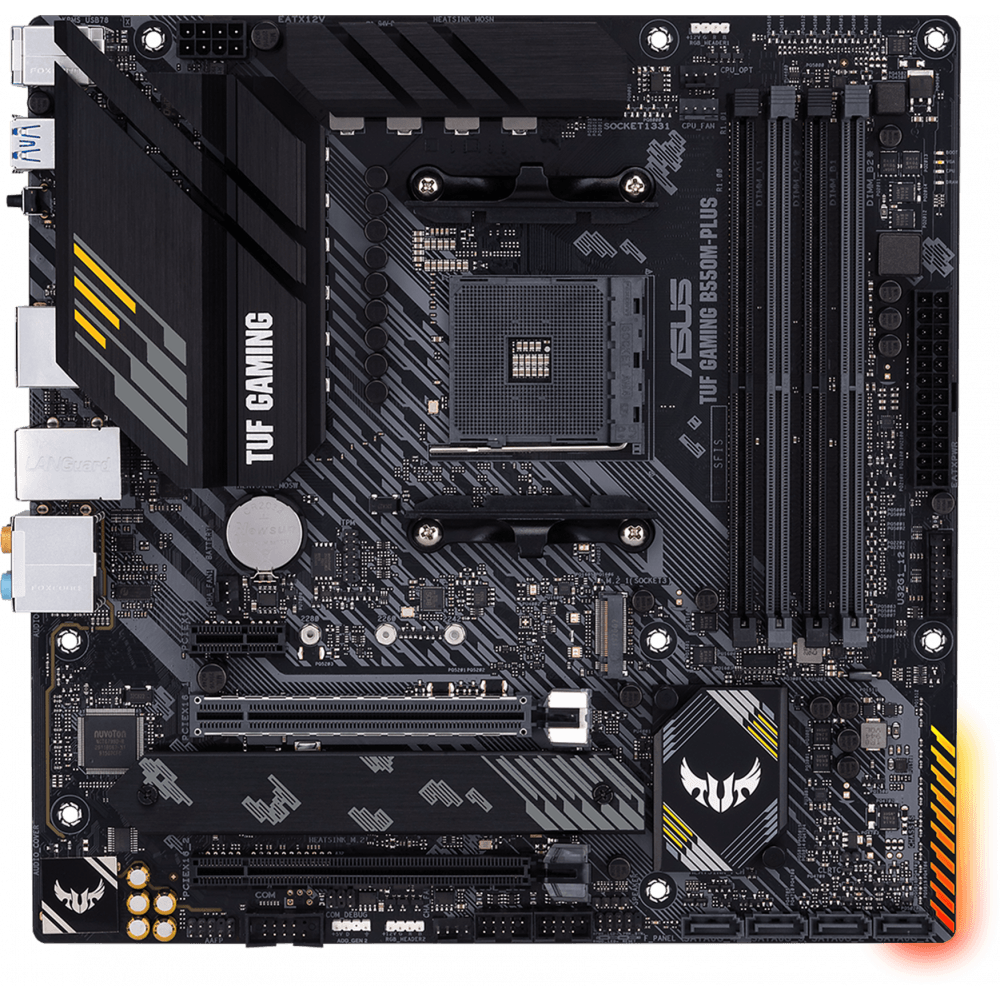

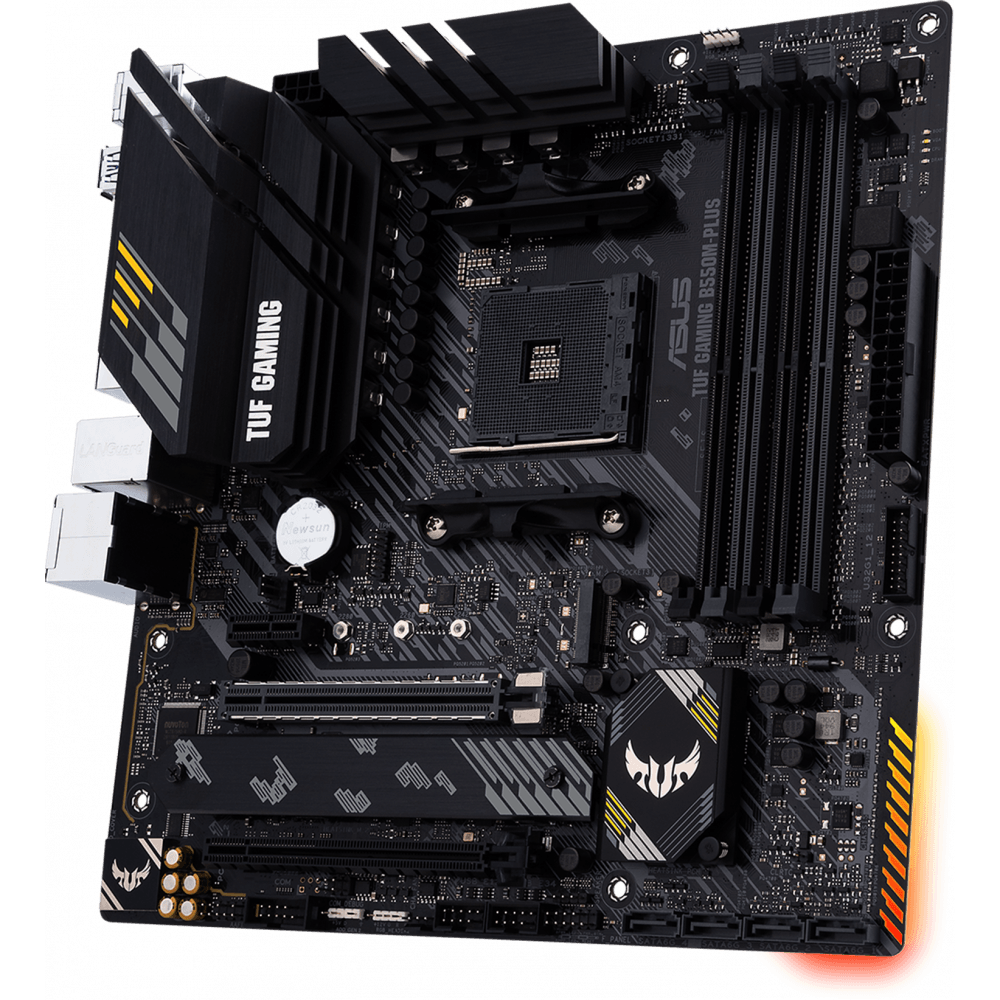

Pamatplate ASUS TUF GAMING B550M-PLUS (TUF GAMING B550M-PLUS)
ID: 357258
4.3
Modifikācija
Īsi par preci
- Socket: AM4
- Mikroshēmu kopa (Chipset): AMD B550
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR4
- Paplašināšanas sloti: PCI-E 4.0 x16, PCI-E 3.0 x16, PCI-E x1, 2 x PCI-E M.2
- Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/c)
- Ligzdas aizmugurējā panelī: PS/2, 2 x USB 2.0, 4 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)
- Apgaismojums: Jā
- Formfaktors: mATX
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
TUF GAMING B550M-PLUS
Uzmanību ........................................................................................................................................................................................................
1st and 2nd generation Ryzen processors are not officially supported on the board with the B550 chipset
Socket ........................................................................................................................................................................................................
AM4
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B550
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mb/c)
Tīkla kontrolieris ........................................................................................................................................................................................................
Realtek RTL8125B
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR4
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Audio/Video
Integrētais video ........................................................................................................................................................................................................
jā (ja tiek izmantots procesors ar video kodolu)
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek ALC S1200A
Saskarnes

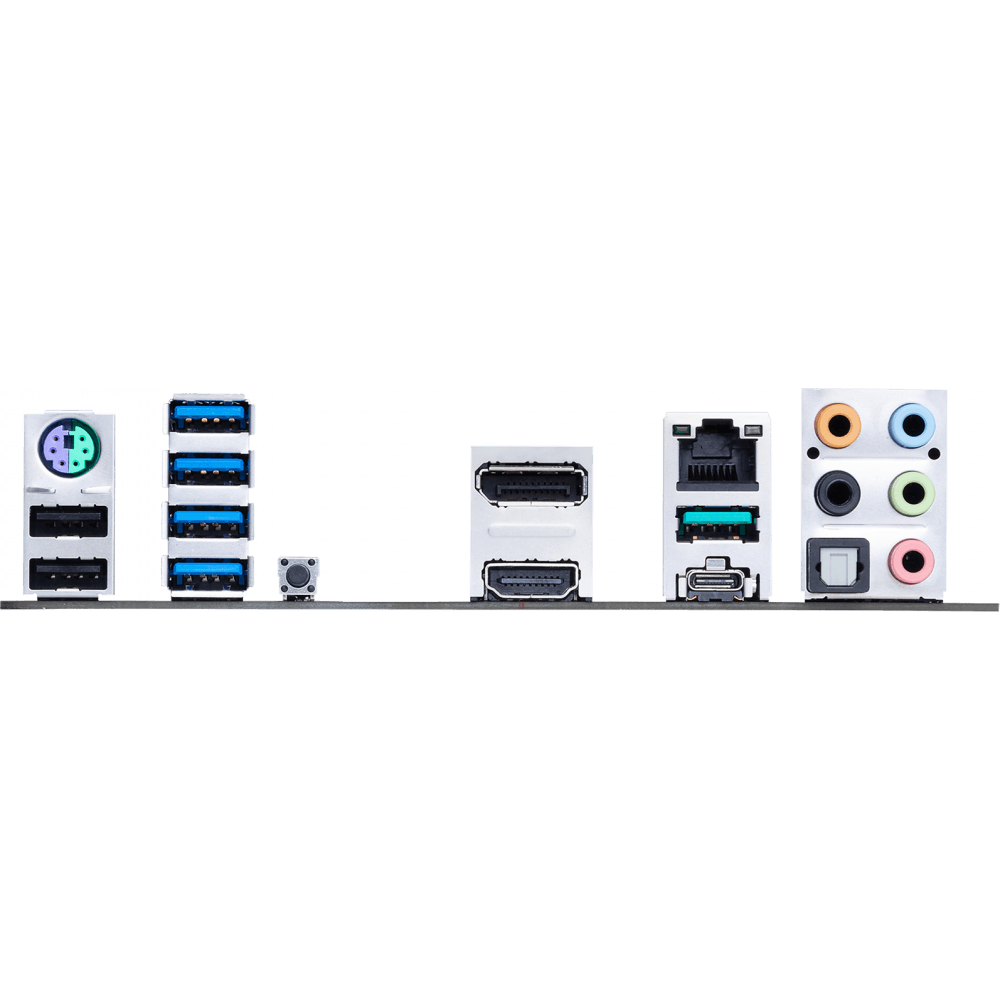

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
PS/2, 2 x USB 2.0, 4 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/с)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 10
Papildu
Apgaismojums ........................................................................................................................................................................................................
jā
Formfaktors ........................................................................................................................................................................................................
mATX
Piegādes veids ........................................................................................................................................................................................................
Retail
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 4.0 x16, PCI-E 3.0 x16, PCI-E x1, 2 x PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
3rd Gen AMD Ryzen Processors:
1 x M.2 Socket 3, M Key, 2242/2260/2280 (PCIE 4.0 x4 and SATA modes)
AMD B550 Chipset:
1 x M.2 Socket 3, M Key, 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes).
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
3rd Gen AMD Ryzen Processors:
1 x PCIe 4.0 x16 (x16 mode).
AMD B550 Chipset:
1 x PCIe 3.0 x16 (x4 mode).
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
