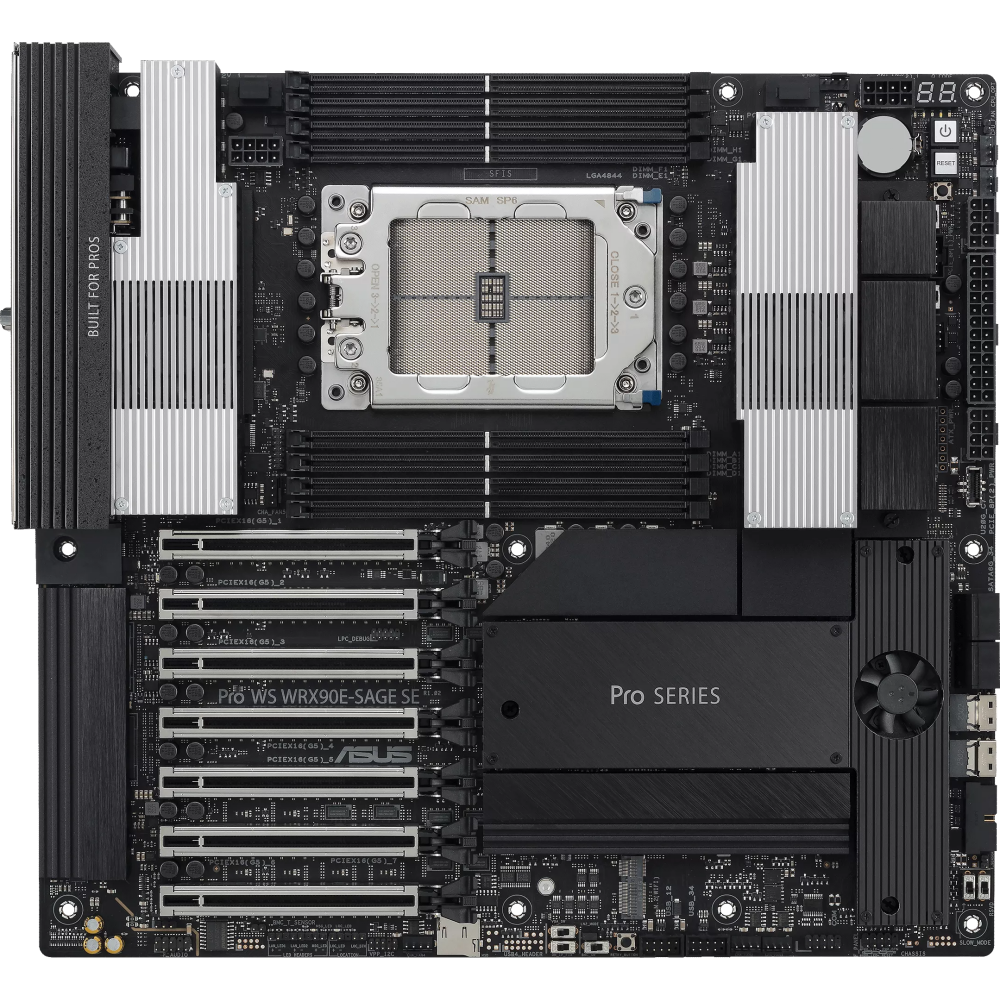

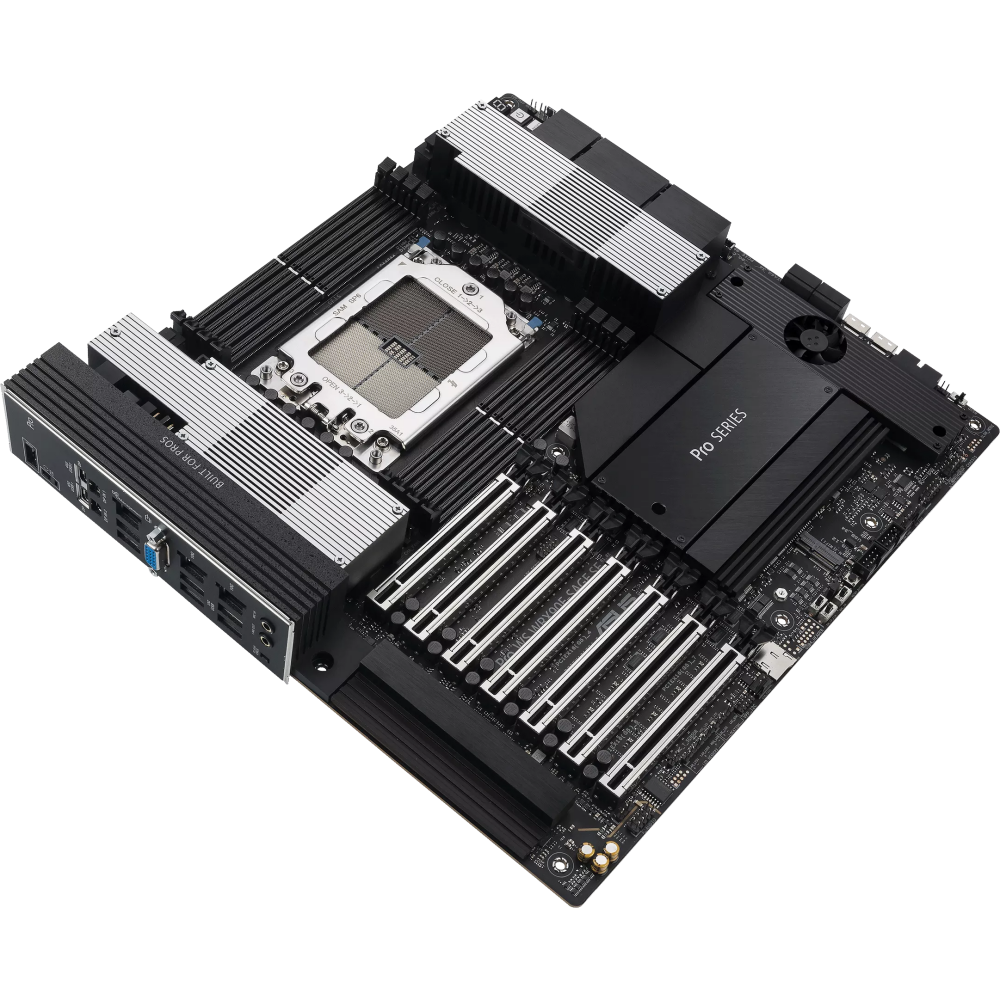

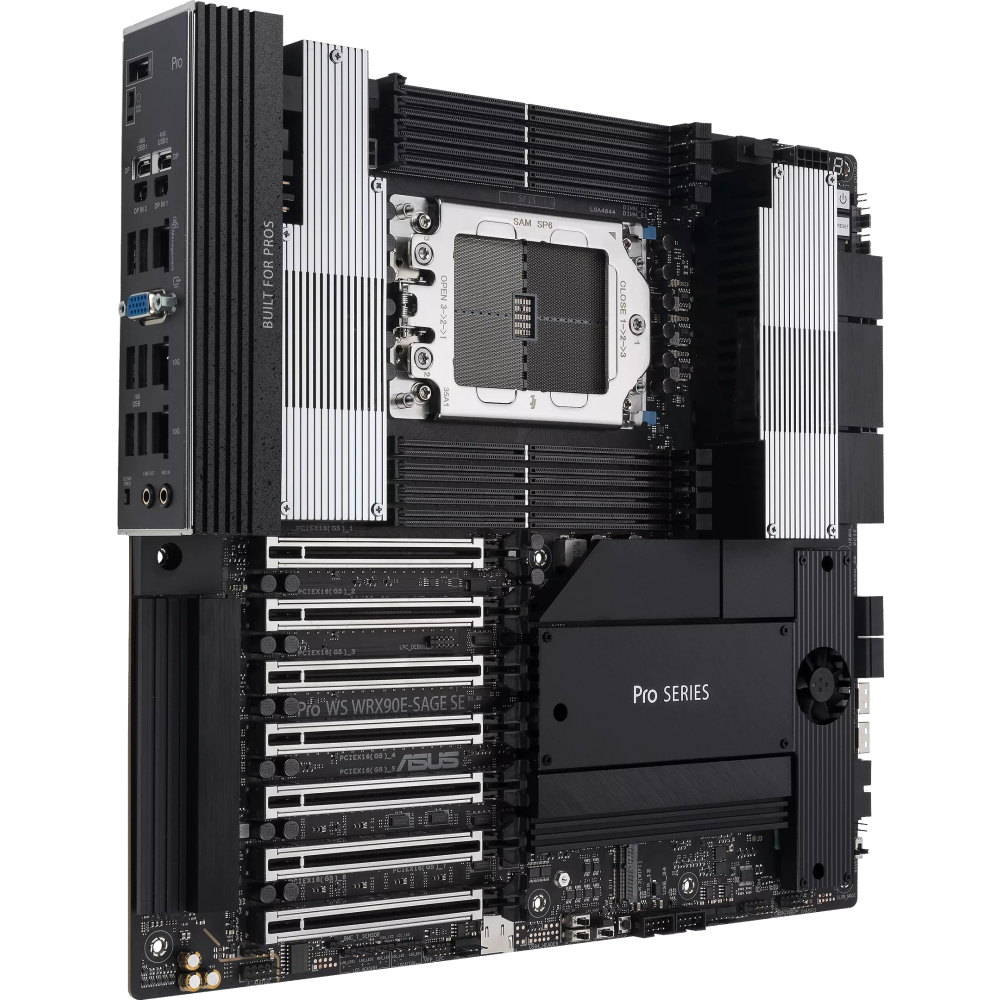

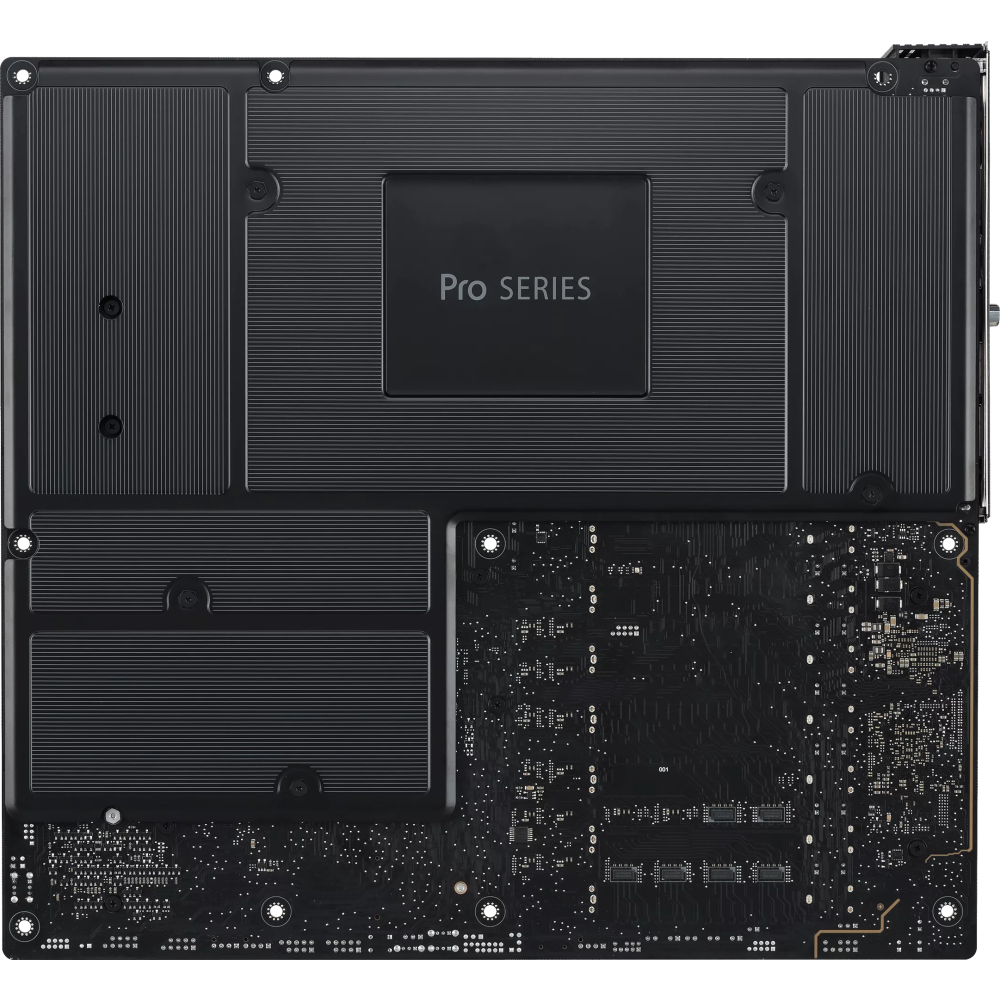

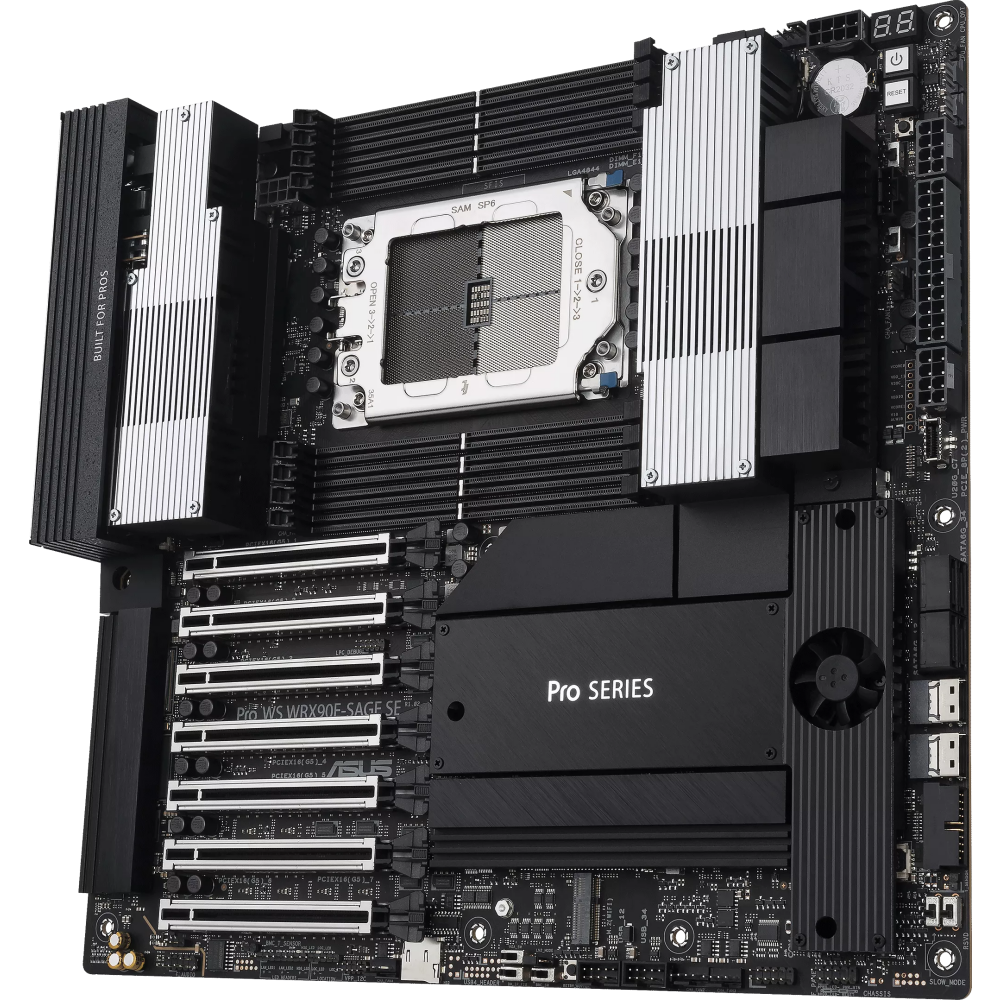

Mātesplate serveriem ASUS PRO WS WRX90E-SAGE SE (PRO WS WRX90E-SAGE SE)
ID: 25934
Īsi par preci
- Izmērs: SSI EEB
- Kontaktligzdu skaits: 1
- Socket: TR5
- Mikroshēma: AMD WRX80
- Atmiņas slotu skaits: 8
- Atmiņas tips: DDR5
- Disku kontrolieri: 4 x SATA-III (6 Gb/s)
- Tīkla saskarne: 2.5 Gigabit Ethernet (2500 Mb/c), 10 Gigabit Ethernet (10000 Mb/c)
Pilnas specifikācijas
Galvenais
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
PRO WS WRX90E-SAGE SE
Izmērs ........................................................................................................................................................................................................
SSI EEB
Socket ........................................................................................................................................................................................................
TR5
Kontaktligzdu skaits ........................................................................................................................................................................................................
1
Atbalstītie procesori ........................................................................................................................................................................................................
Ryzen Threadripper PRO 7000 WX-Series
Mikroshēma ........................................................................................................................................................................................................
AMD WRX80
Audio/video
Skaņa ........................................................................................................................................................................................................
jā
Disku kontrolieri un paplašināšanas slots
Disku kontrolieri ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
, 1, 5, 10
Paplašināšanas slots ........................................................................................................................................................................................................
PCI-E 5.0 x16, M.2
M.2 saskarne ........................................................................................................................................................................................................
PCI-E
M.2 izmērs ........................................................................................................................................................................................................
2280, 22110
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (2500 Mb/c), 10 Gigabit Ethernet (10000 Mb/c)
Savienojamība

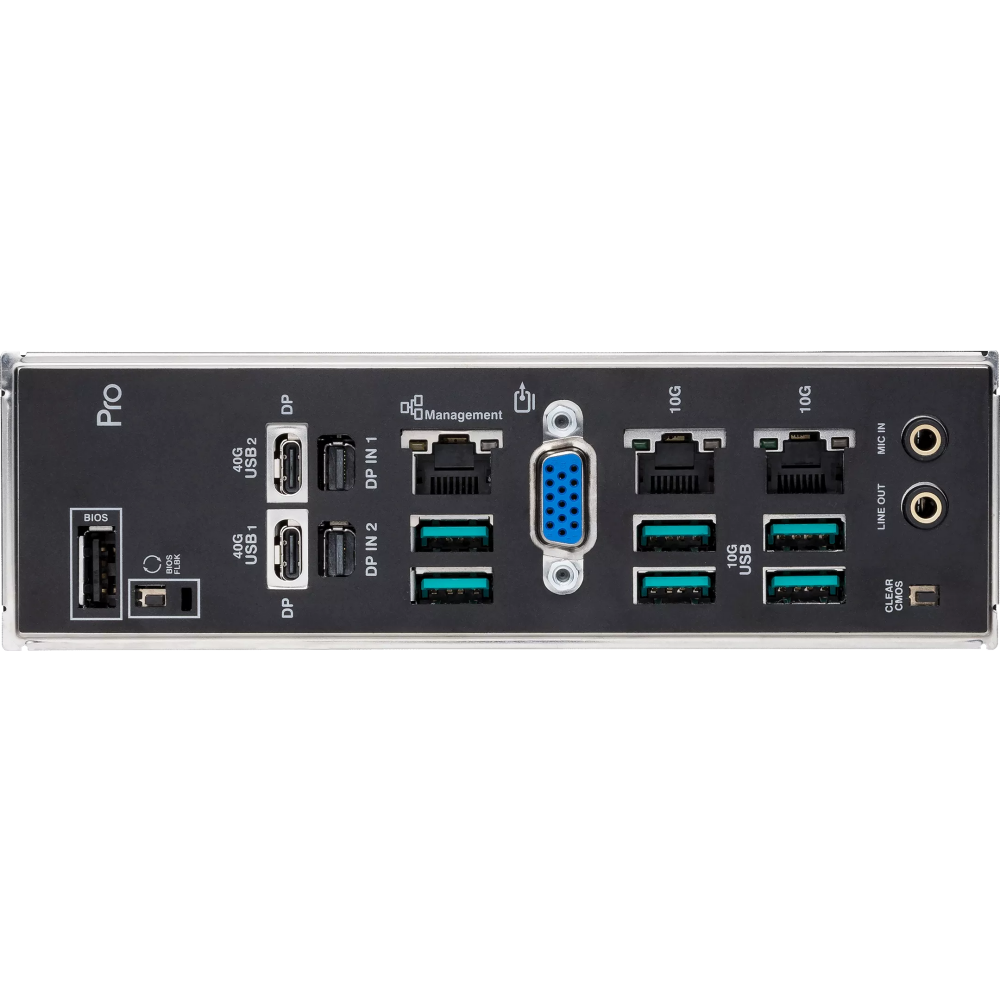

Aizmugurējā paneļa savienotāji ........................................................................................................................................................................................................
USB 3.2 Gen 2, USB Type-C, VGA, RJ-45
Galvenais barošanas savienotājs ........................................................................................................................................................................................................
24-pin
Procesora barošanas savienotājs ........................................................................................................................................................................................................
8-pin + 8-pin
Atmiņa
Atmiņas tips ........................................................................................................................................................................................................
DDR5
ECC atbalsts ........................................................................................................................................................................................................
tikai ECC
Atmiņas slotu skaits ........................................................................................................................................................................................................
8
Frekvenču atbalsts ........................................................................................................................................................................................................
4800 MHz, 5600 MHz, 6000 MHz
Maksimālā atmiņas ietilpība ........................................................................................................................................................................................................
2048 Gb
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
