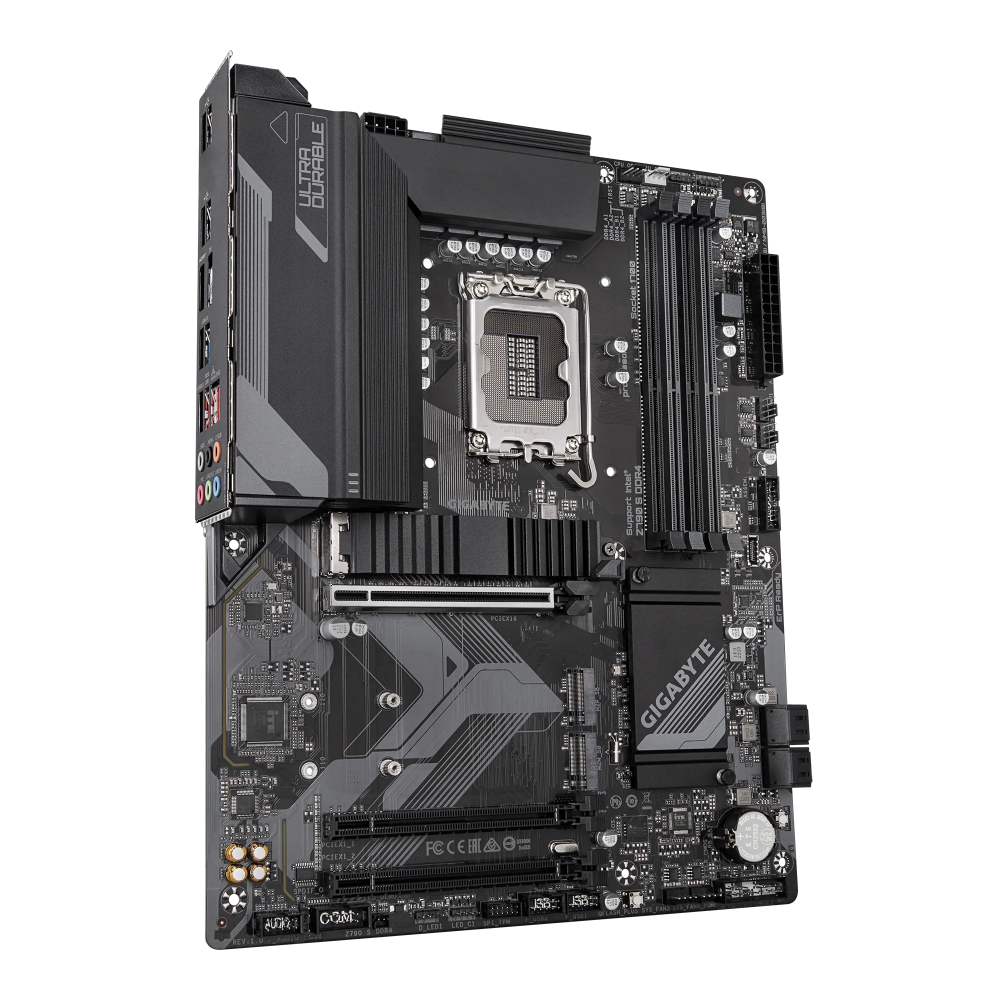

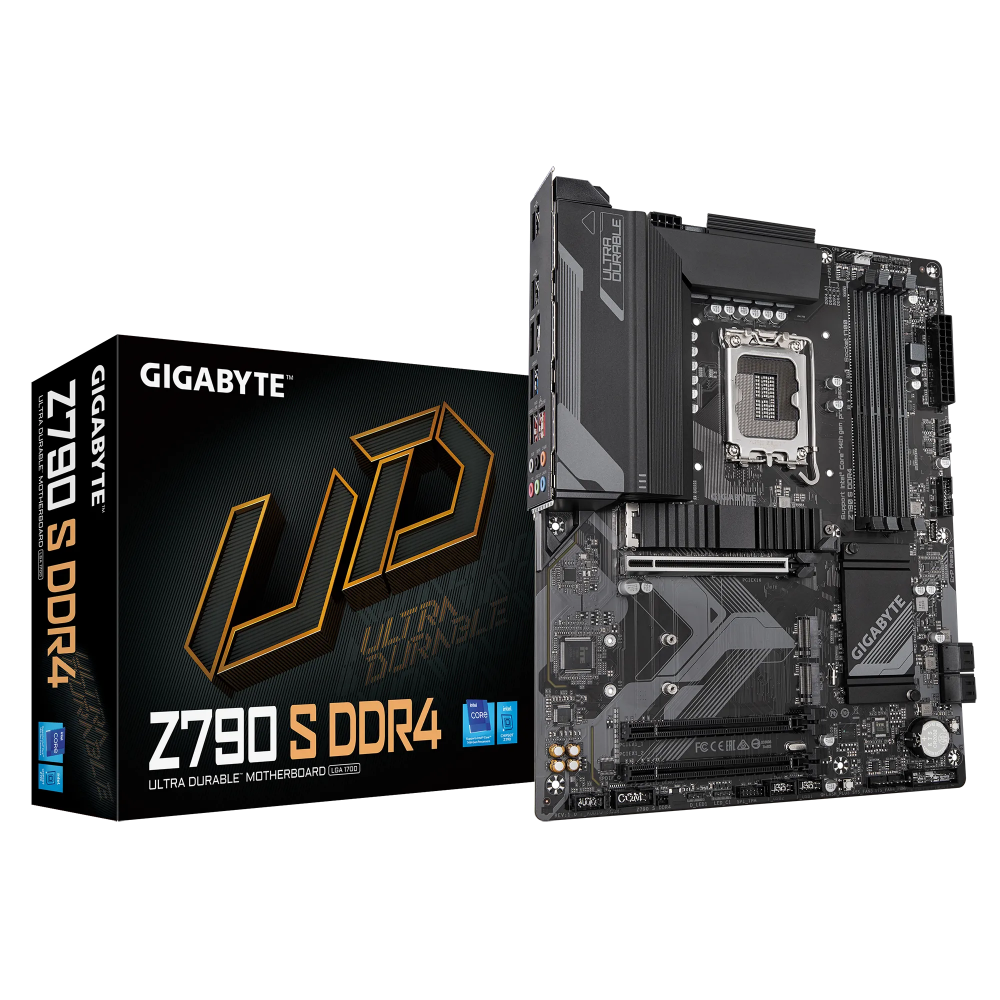

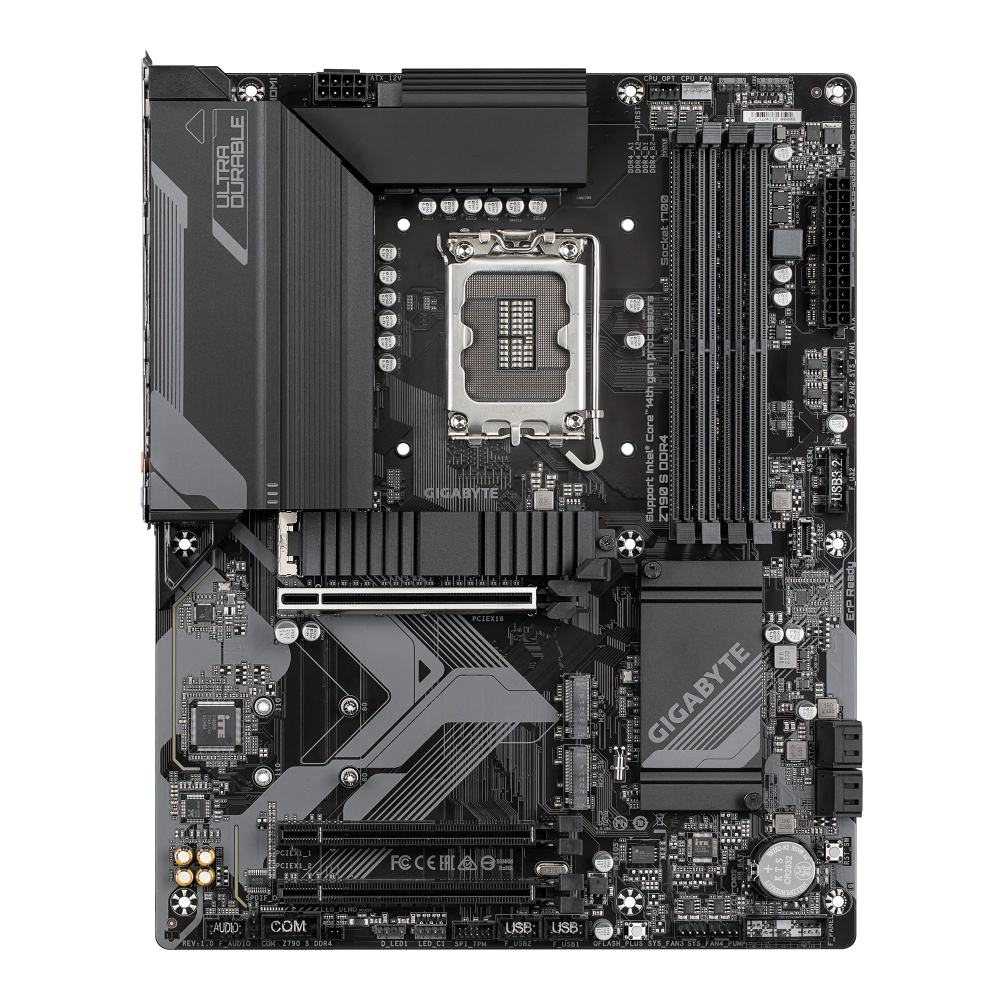

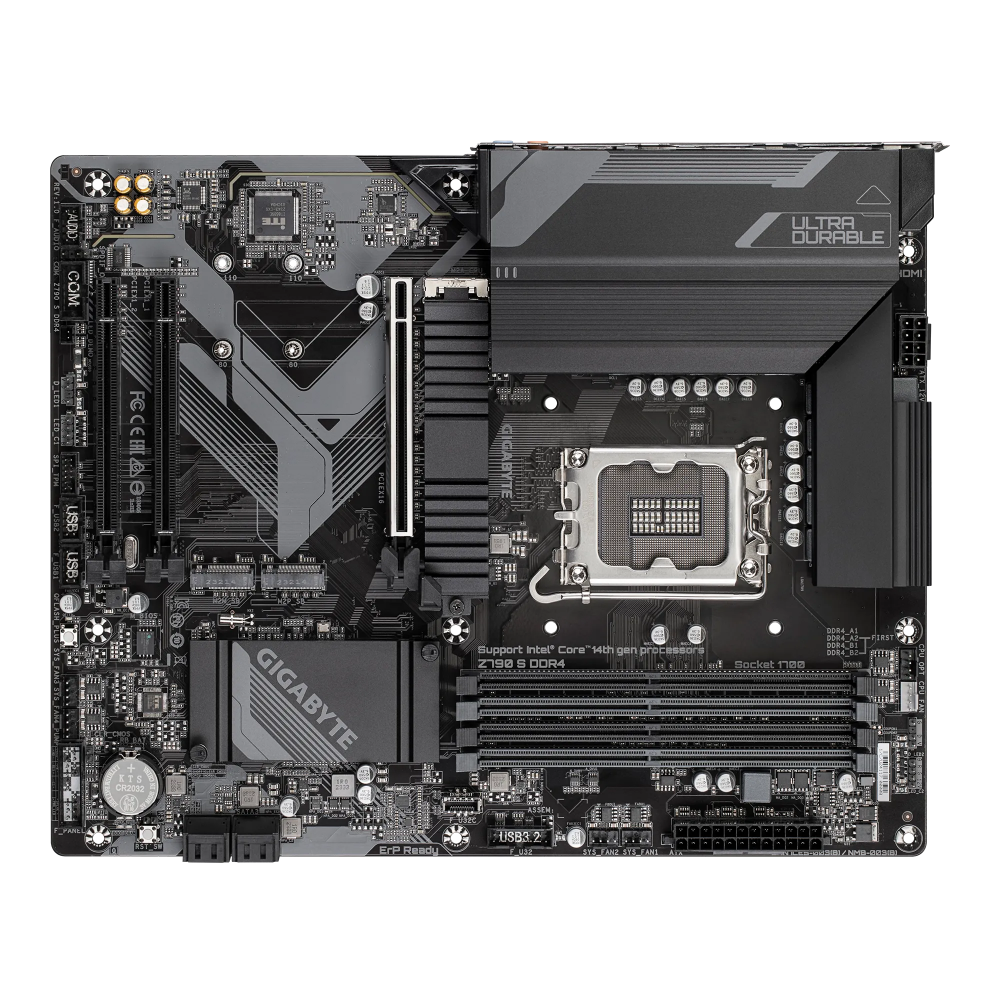

Pamatplate Gigabyte Z790 S DDR4 (Z790 S DDR4)

ID: 1895

Īsi par preci

Socket: LGA 1700
Mikroshēmu kopa (Chipset): Intel Z790
Atmiņas slotu skaits: 4
Atmiņas veids: DDR4
Paplašināšanas sloti: PCI-E 4.0 x16, 2 x PCI-E 3.0 x16, 3 x PCI-E M.2
Grafiskā mikroshēmas kopa: Intel HD Graphics
Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/c)
Ligzdas aizmugurējā panelī: 5 x USB 2.0, 6 x audio jacks, 2 x USB 3.2 Gen1, USB 3.2 Gen2, HDMI, DisplayPort, RJ-45
Formfaktors: ATX

Pilnas specifikācijas

163,⁴⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar Lateko līzings

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

Gigabyte

Ražotāja kods ........................................................................................................................................................................................................

Z790 S DDR4

Socket ........................................................................................................................................................................................................

LGA 1700

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel Z790

Saskarnes

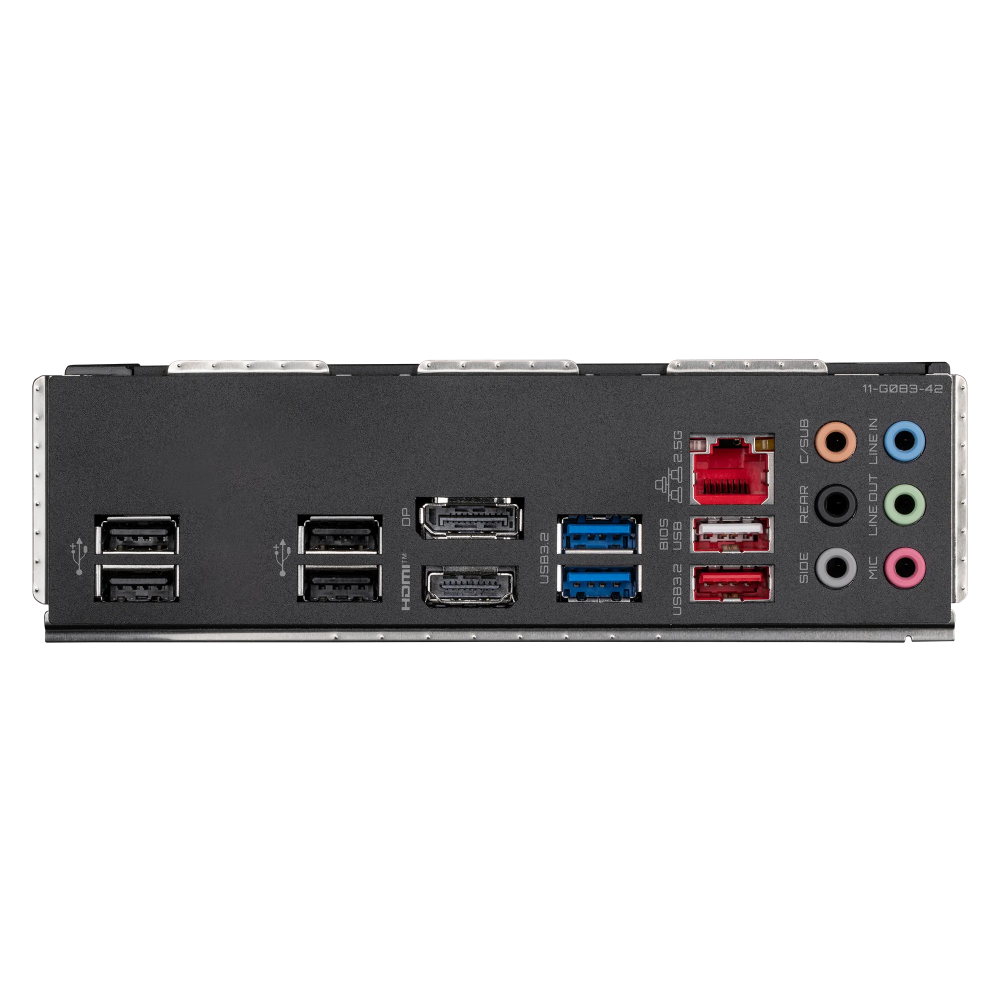

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

5 x USB 2.0, 6 x audio jacks, 2 x USB 3.2 Gen1, USB 3.2 Gen2, HDMI, DisplayPort, RJ-45

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mb/c)

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/с)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 4.0 x16, 2 x PCI-E 3.0 x16, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

Papildu

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

8-pin

Formfaktors ........................................................................................................................................................................................................

ATX

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR4

Atmiņas slotu skaits ........................................................................................................................................................................................................

Audio/Video

Integrētais video ........................................................................................................................................................................................................

jā

Grafiskā mikroshēmas kopa ........................................................................................................................................................................................................

Intel HD Graphics

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek Audio CODEC

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

gigabyte.com
