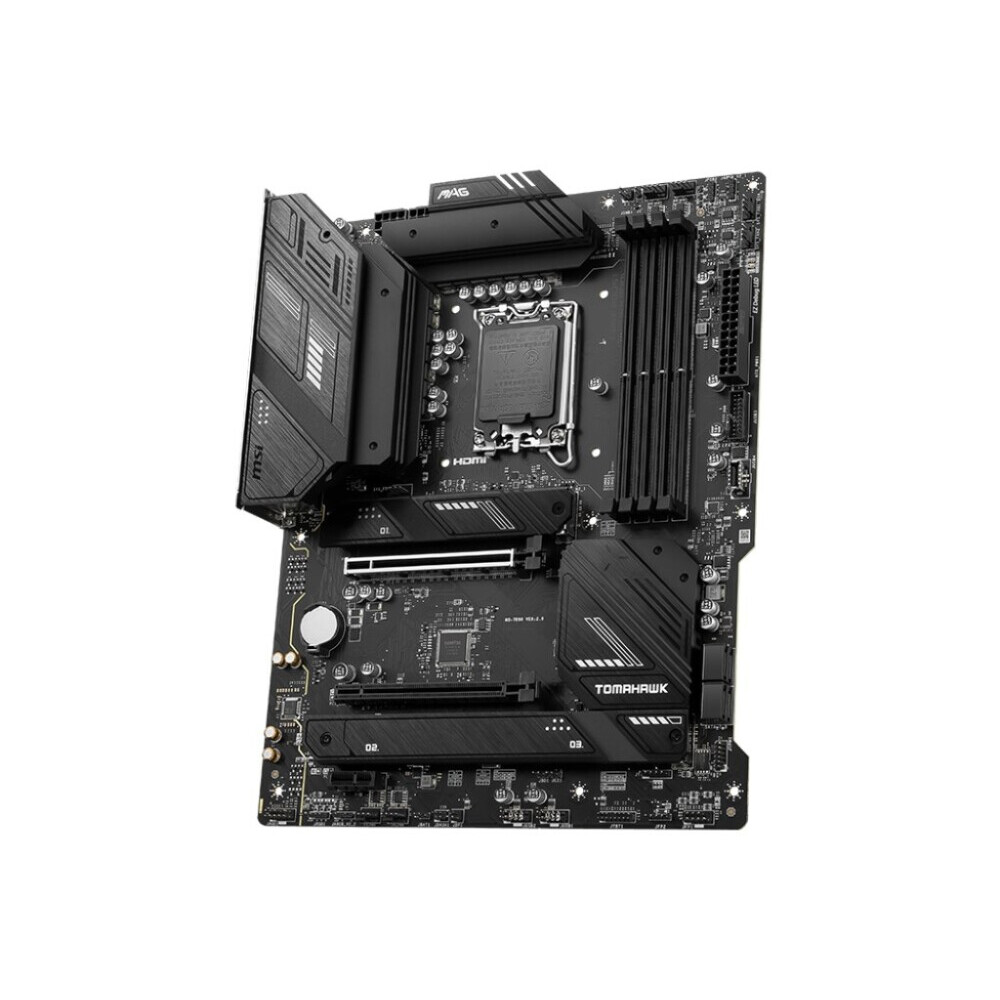

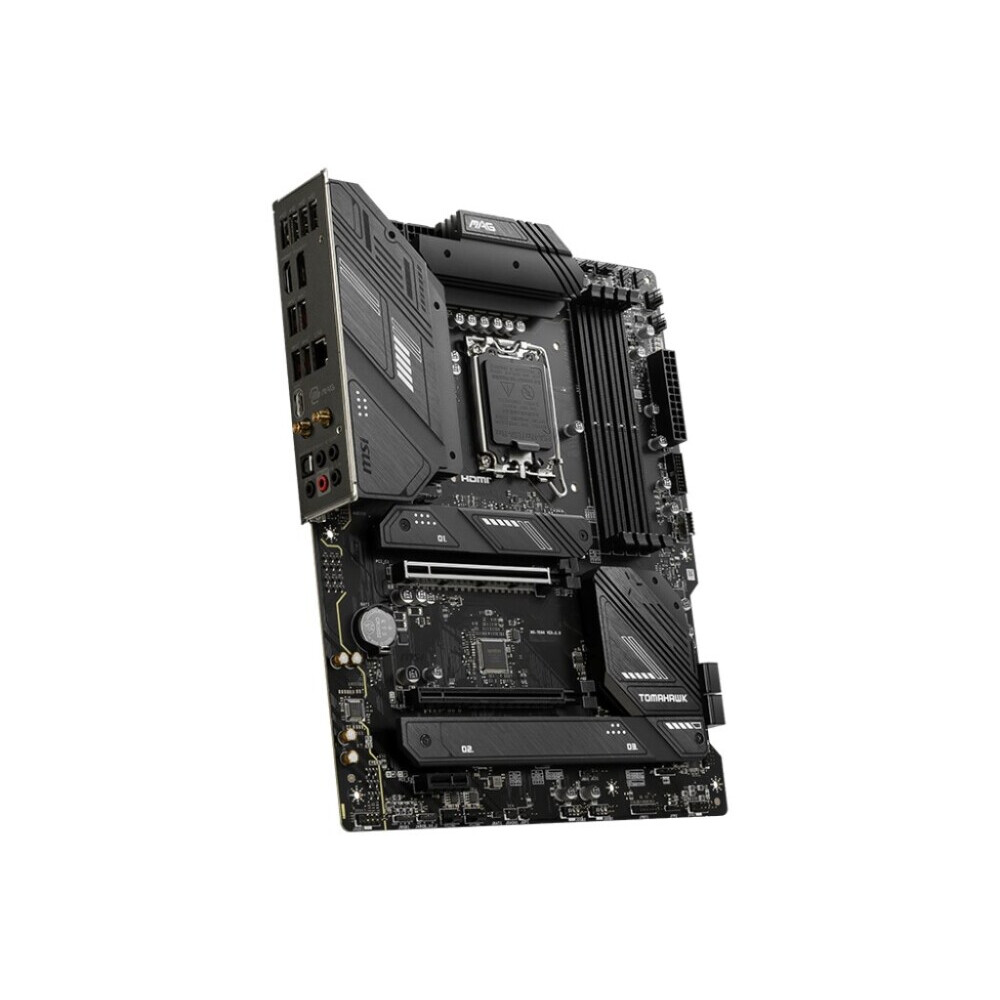

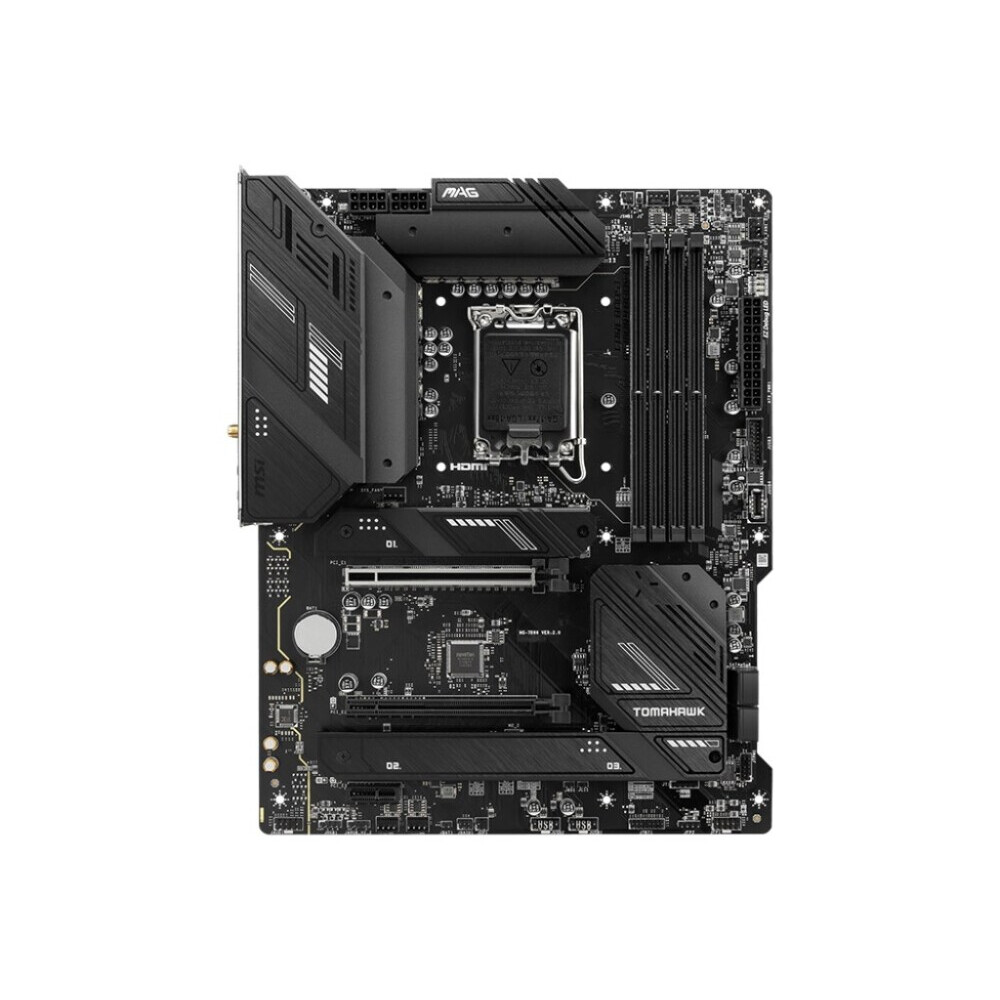

Pamatplate MSI MAG B760 TOMAHAWK WIFI (7D96-003R)

ID: 1883

Īsi par preci

Socket: LGA 1700
Mikroshēmu kopa (Chipset): Intel B760
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: 2 x PCI-E 4.0 x16, PCIe 3.0 x1, 3 x PCI-E M.2
Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth
Ligzdas aizmugurējā panelī: 4 x USB 2.0, 4 x USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45
Formfaktors: ATX

Pilnas specifikācijas

191,⁷⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar Lateko līzings

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

MSI

Ražotāja kods ........................................................................................................................................................................................................

7D96-003R

Socket ........................................................................................................................................................................................................

LGA 1700

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel B760

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC897

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5, SDRAM

Atmiņas slotu skaits ........................................................................................................................................................................................................

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

2 x PCI-E 4.0 x16, PCIe 3.0 x1, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)

Saskarnes

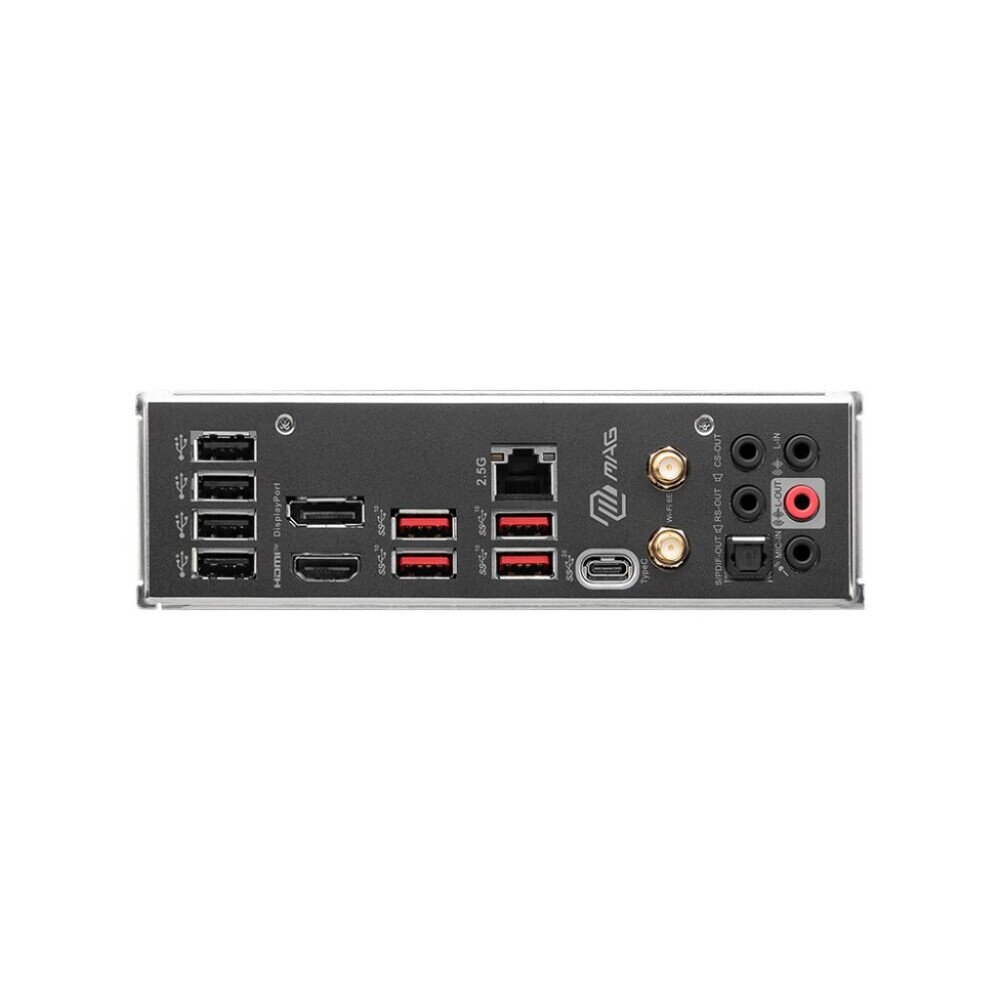

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

4 x USB 2.0, 4 x USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/с)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

5 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

2 x 8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 3.2 Gen1, 4 x USB 2.0, USB 3.2 Gen2

Formfaktors ........................................................................................................................................................................................................

ATX

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

melns

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

msi.com
