- Pamatplate ASUS ROG STRIX B860-I GAMING WIFI (90MB1JB0-M0EAY0)
Pamatplate ASUS ROG STRIX B860-I GAMING WIFI (90MB1JB0-M0EAY0)
ID: 1851
Īsi par preci
- Socket: LGA1851
- Mikroshēmu kopa (Chipset): Intel B860
- Atmiņas slotu skaits: 2
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 5.0 x16, 2 x PCI-E M.2
- Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth

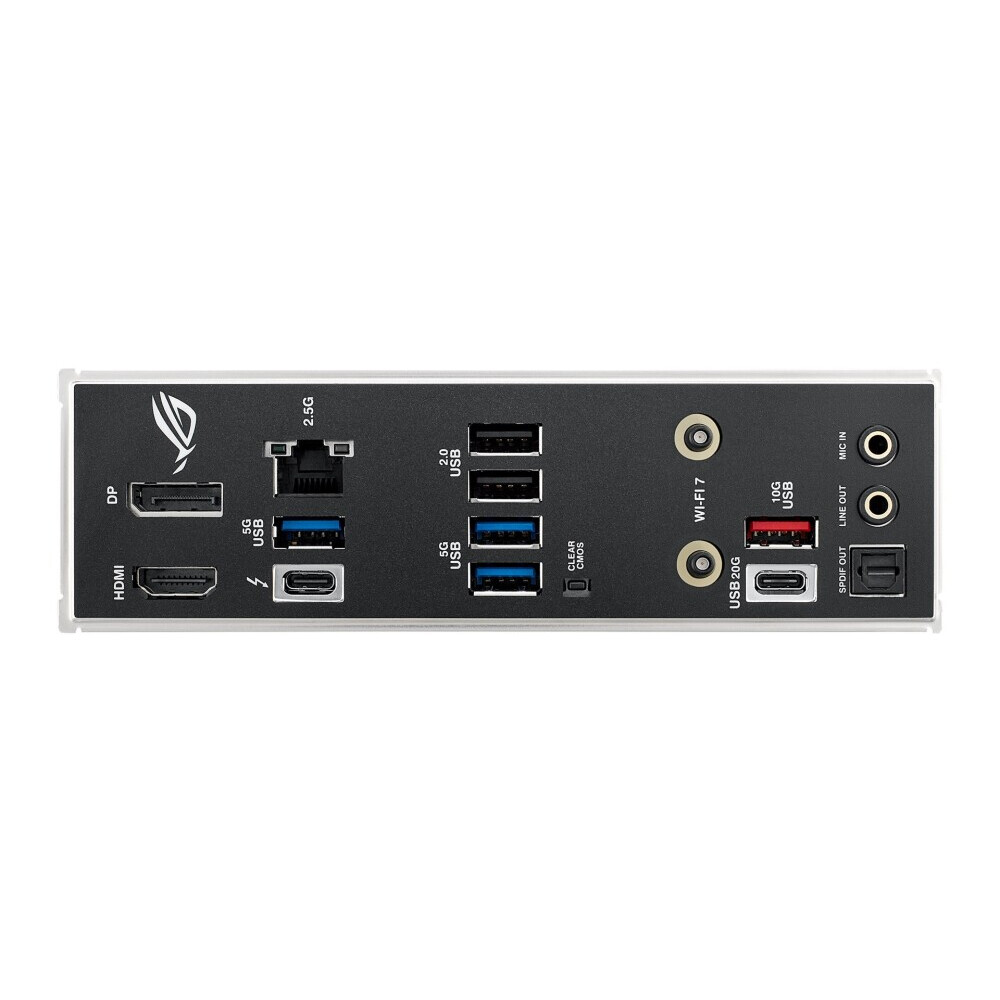

- Ligzdas aizmugurējā panelī: 2 x USB 2.0, 3 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)
- Formfaktors: Mini-ITX
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
90MB1JB0-M0EAY0
Socket ........................................................................................................................................................................................................
LGA1851
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
Intel B860
Saskarnes
Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
2 x USB 2.0, 3 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek ALC1220P
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5, SDRAM
Atmiņas slotu skaits ........................................................................................................................................................................................................
2
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 5.0 x16, 2 x PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
Intel® Core™ Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2260/2280
(supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 5, 10
Papildu
Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................
4-pin
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
8-pin
Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................
USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2
Papildu informācija ........................................................................................................................................................................................................
Miscellaneous
2 x Addressable Gen2 headers
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
Formfaktors ........................................................................................................................................................................................................
Mini-ITX
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
