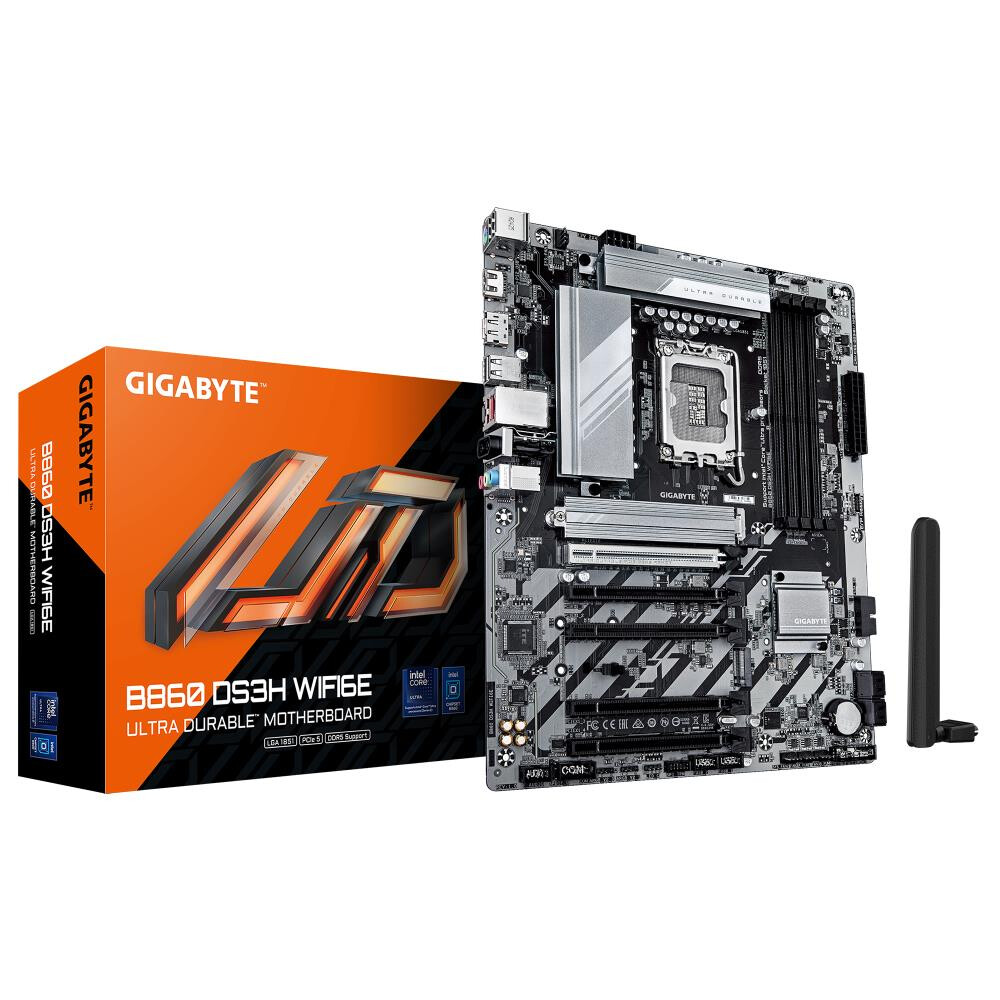

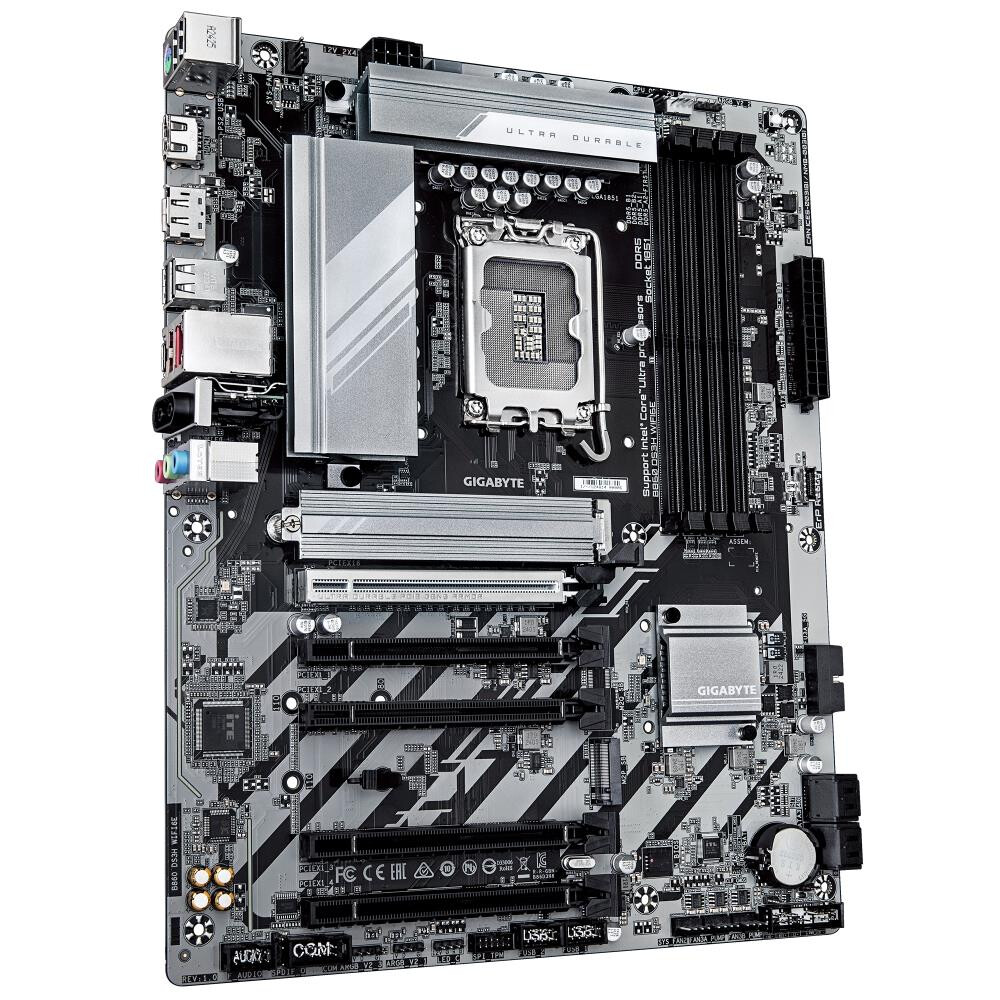

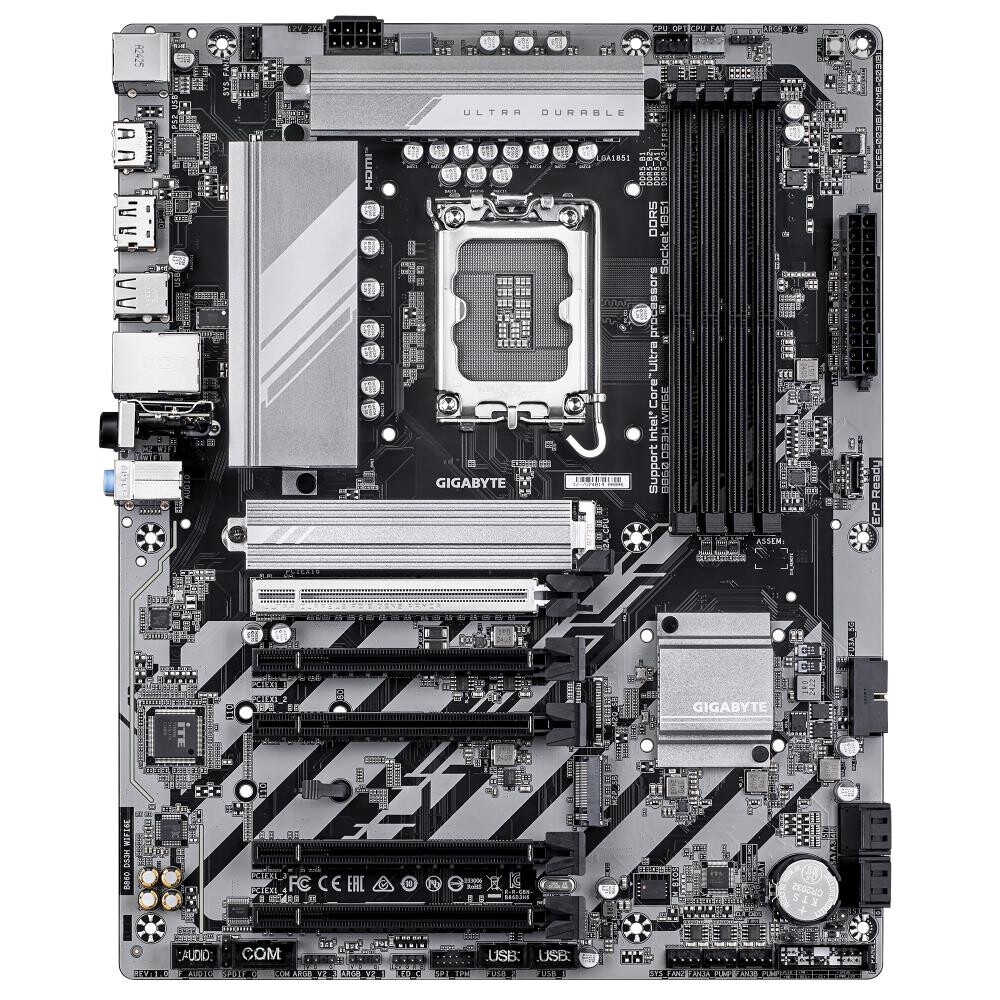

Pamatplate GIGABYTE B860 DS3H WIFI6E (B860 DS3H WIFI6E 1.0)
ID: 1818
Īsi par preci
- Socket: LGA1851
- Mikroshēmu kopa (Chipset): Intel B860
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 5.0 x16, PCI-E 4.0 x16, 2 x PCI-E M.2
- Tīkla saskarne: Wi-Fi, Bluetooth
- Ligzdas aizmugurējā panelī: PS/2, 4 x USB 2.0, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45
- Formfaktors: ATX
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
B860 DS3H WIFI6E 1.0
Socket ........................................................................................................................................................................................................
LGA1851
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
Intel B860
Papildu
Formfaktors ........................................................................................................................................................................................................
ATX
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
Wi-Fi, Bluetooth
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Saskarnes

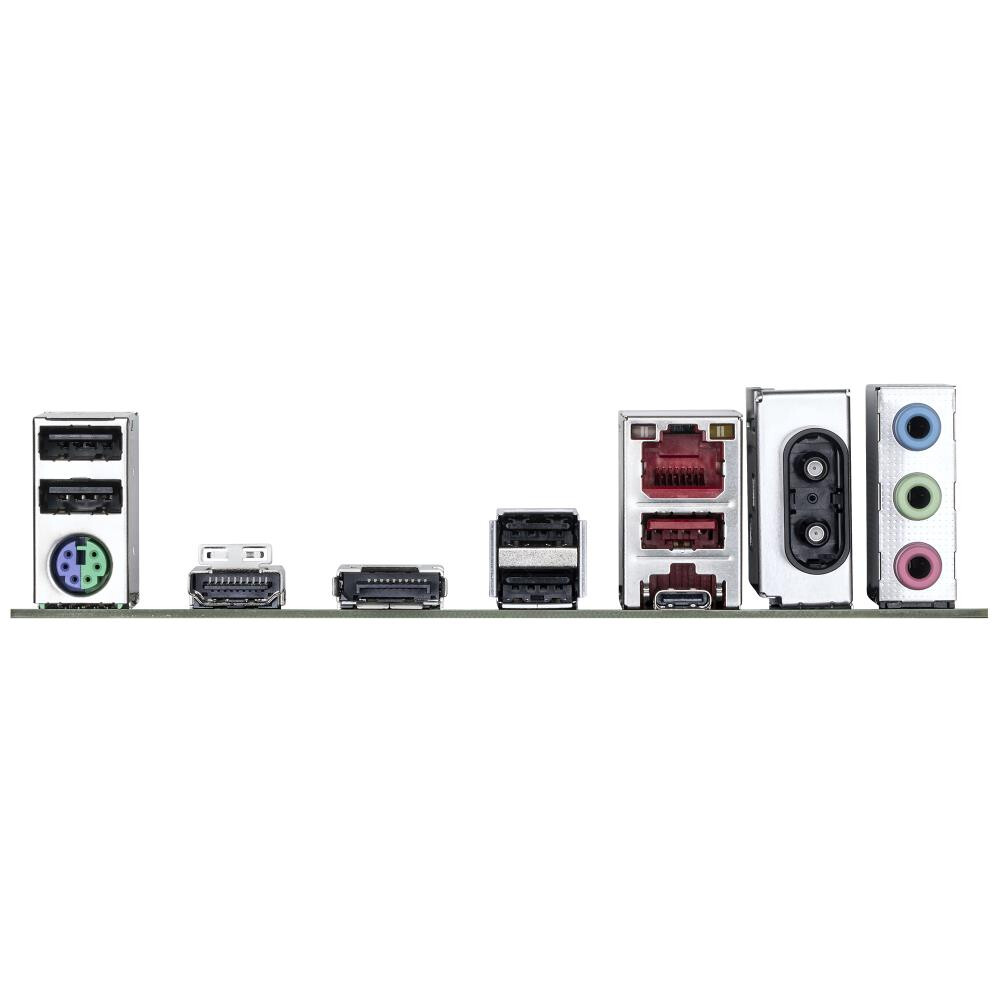

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
PS/2, 4 x USB 2.0, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/с)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 5, 10
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 5.0 x16, PCI-E 4.0 x16, 2 x PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 4 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1~PCIEX1_4)
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
