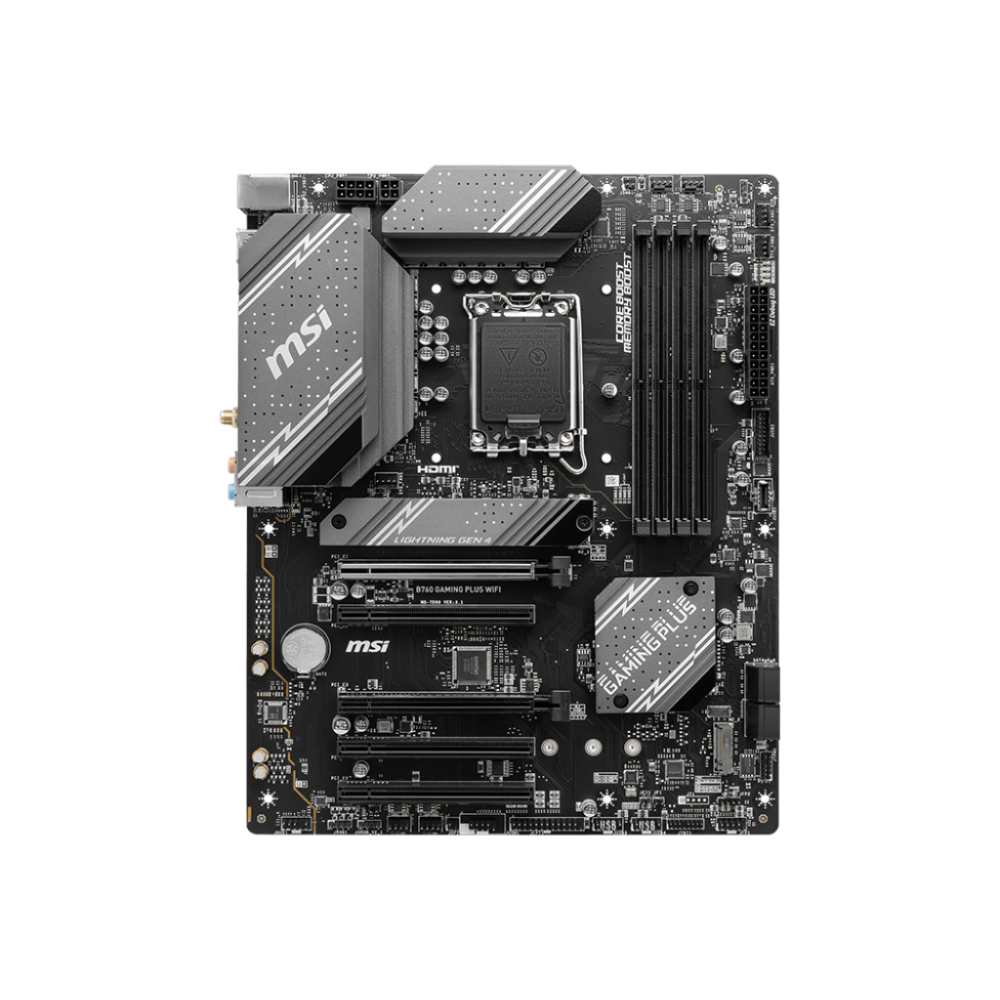

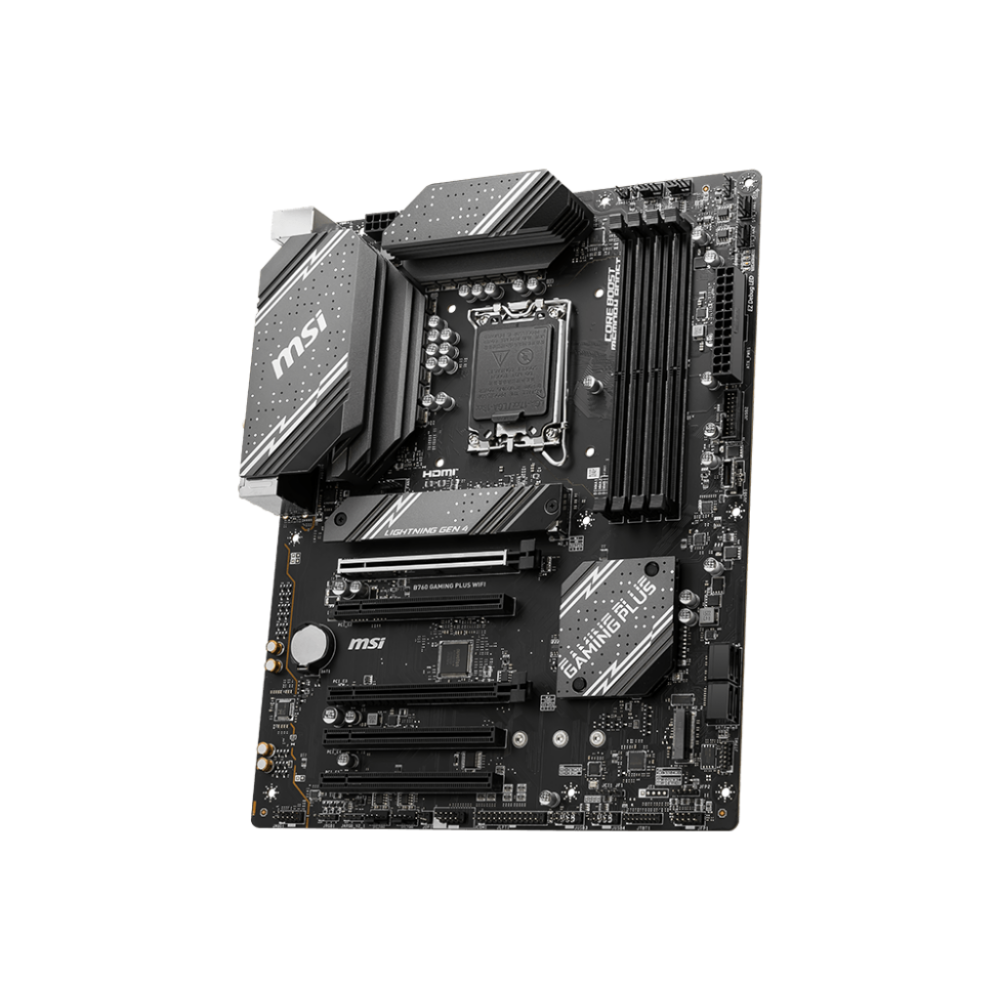

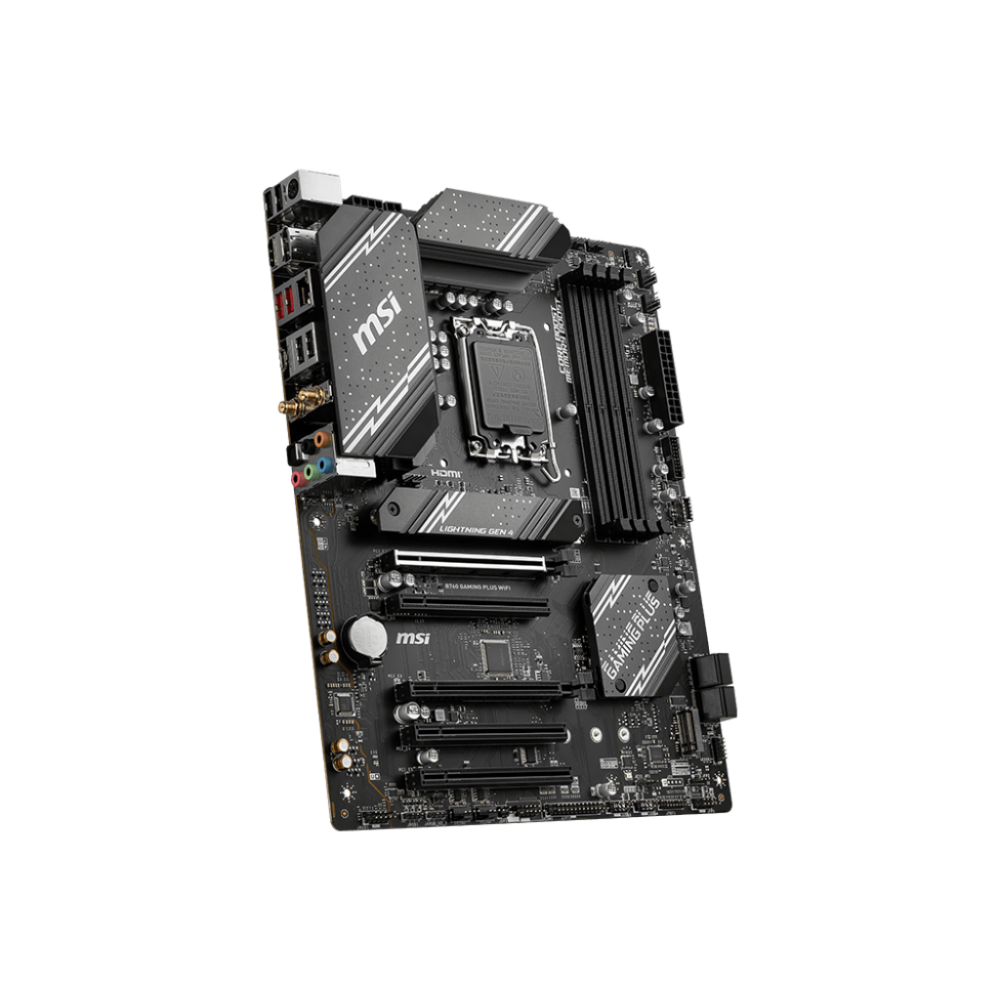

Pamatplate MSI B760 GAMING PLUS WIFI (7D98-007R)

ID: 1635

Īsi par preci

Socket: LGA 1700
Mikroshēmu kopa (Chipset): Intel B760
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E 4.0 x16, PCI-E x16, PCIe 3.0 x1, PCI-E M.2
Tīkla saskarne: Wi-Fi, Bluetooth

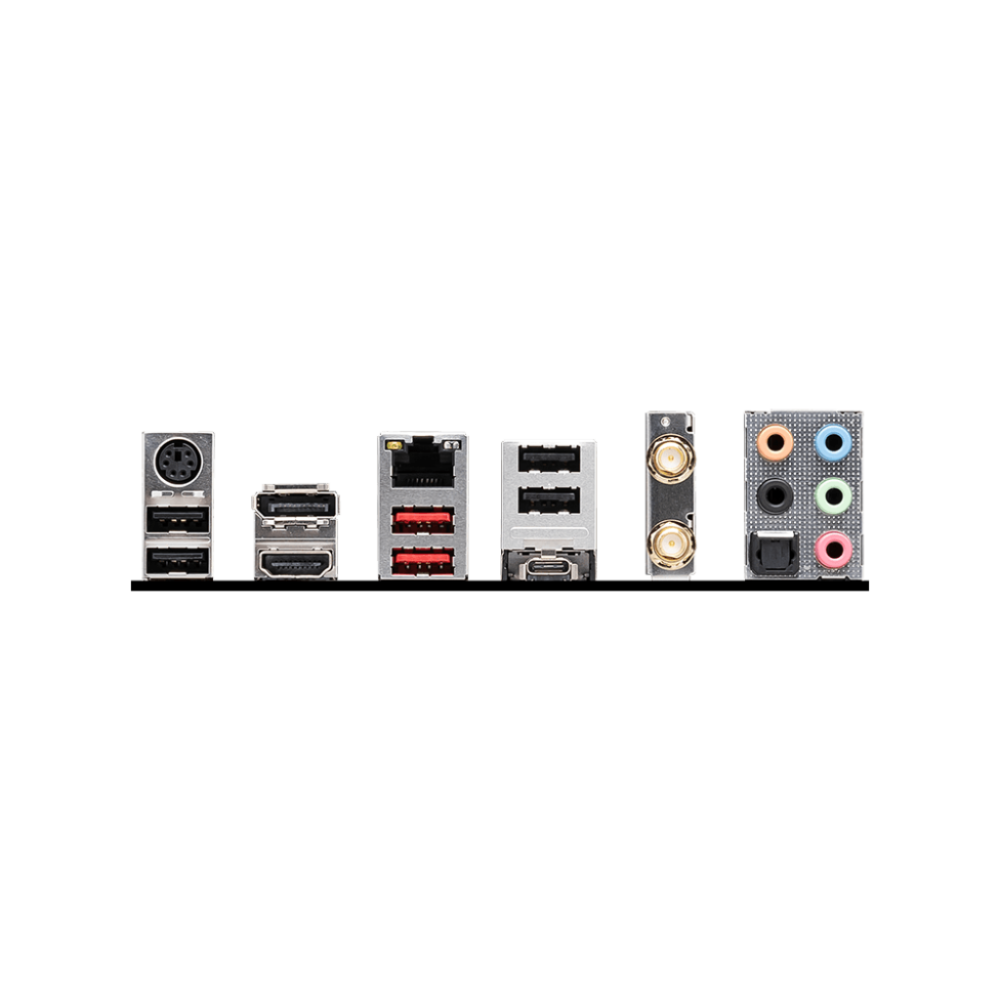

Ligzdas aizmugurējā panelī: PS/2, USB 2.0, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, DisplayPort
Formfaktors: mATX

Pilnas specifikācijas

156,⁸⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar Lateko līzings

Pamatplate MSI B760 GAMING PLUS WIFI (7D98-007R)

156,⁸⁰ €

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

MSI

Ražotāja kods ........................................................................................................................................................................................................

7D98-007R

Socket ........................................................................................................................................................................................................

LGA 1700

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel B760

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

PS/2, USB 2.0, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, DisplayPort

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC897

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Papildu

Formfaktors ........................................................................................................................................................................................................

mATX

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Wi-Fi, Bluetooth

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

SATA-III (6 Gb/с)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 4.0 x16, PCI-E x16, PCIe 3.0 x1, PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

msi.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
