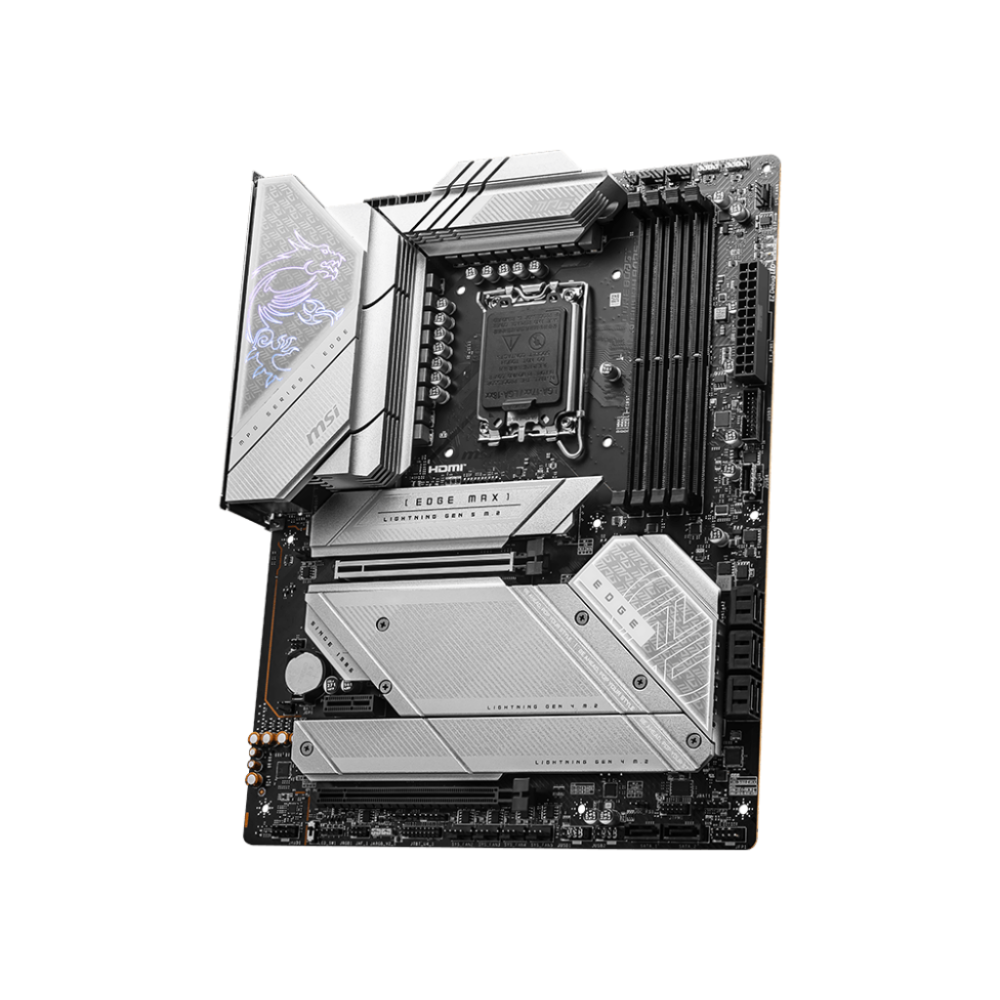

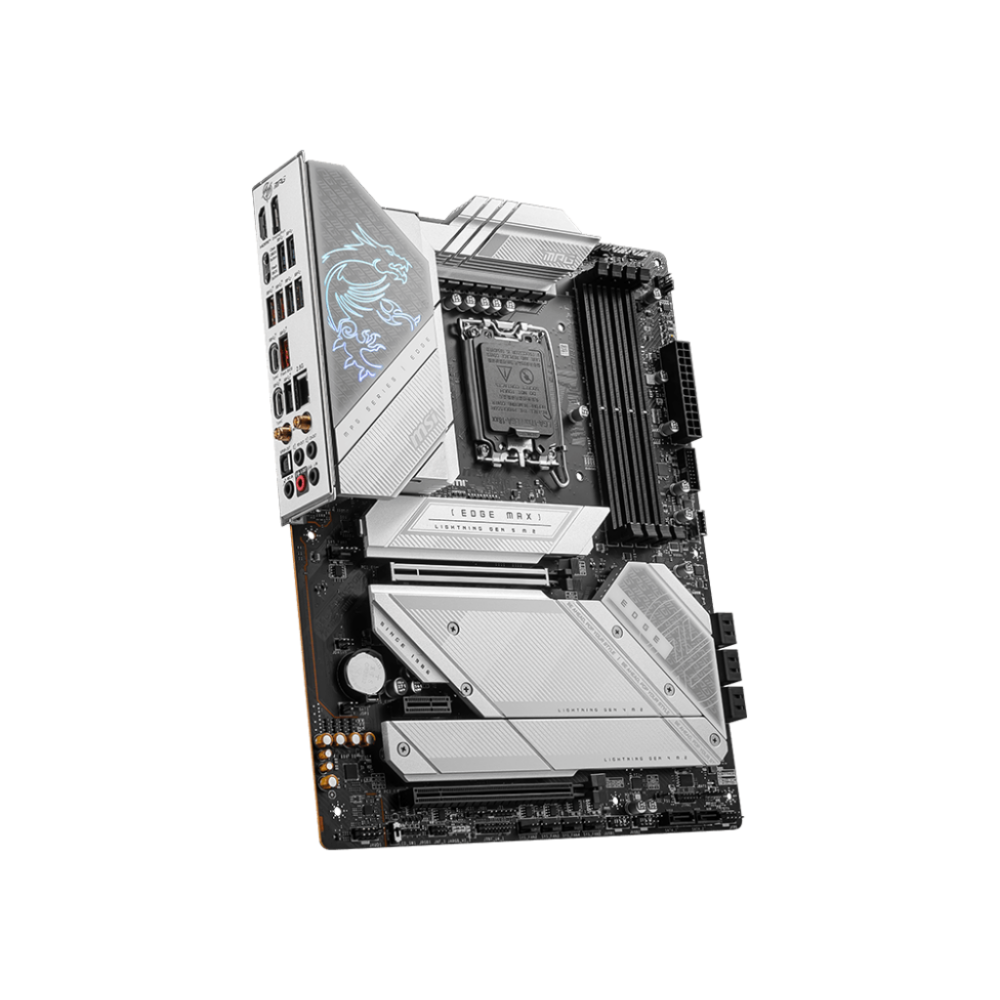

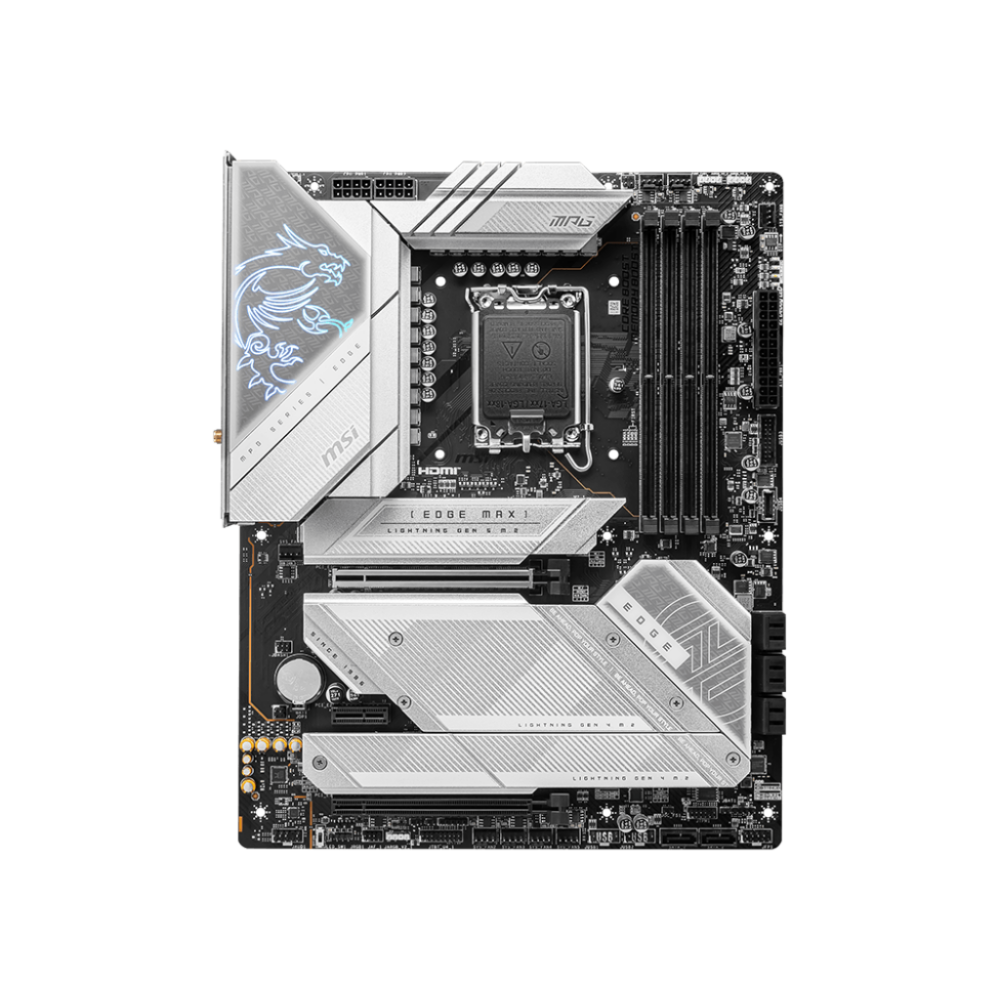

Pamatplate MSI MPG Z790 EDGE TI MAX WIFI (MPGZ790EDGETIMAXWIFI)

Pamatplate MSI MPG Z790 EDGE TI MAX WIFI (MPGZ790EDGETIMAXWIFI)

ID: 1507

Īsi par preci

Socket: LGA 1700
Mikroshēmu kopa (Chipset): Intel Z790
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: PCI-E 5.0 x16, PCI-E x16, PCIe 3.0 x1, 4.0 x PCI-E x4, PCI-E x1, PCI-E M.2
Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/с), Wi-Fi, Bluetooth
Ligzdas aizmugurējā panelī: USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, S/PDIF (optiskais)
Formfaktors: ATX

Pilnas specifikācijas

297,⁹⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar Lateko līzings

Pamata

Ražotājs ........................................................................................................................................................................................................

MSI

Ražotāja kods ........................................................................................................................................................................................................

MPGZ790EDGETIMAXWIFI

Socket ........................................................................................................................................................................................................

LGA 1700

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel Z790

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mb/с), Wi-Fi, Bluetooth

Papildu

Formfaktors ........................................................................................................................................................................................................

ATX

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

balts, melns

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Saskarnes

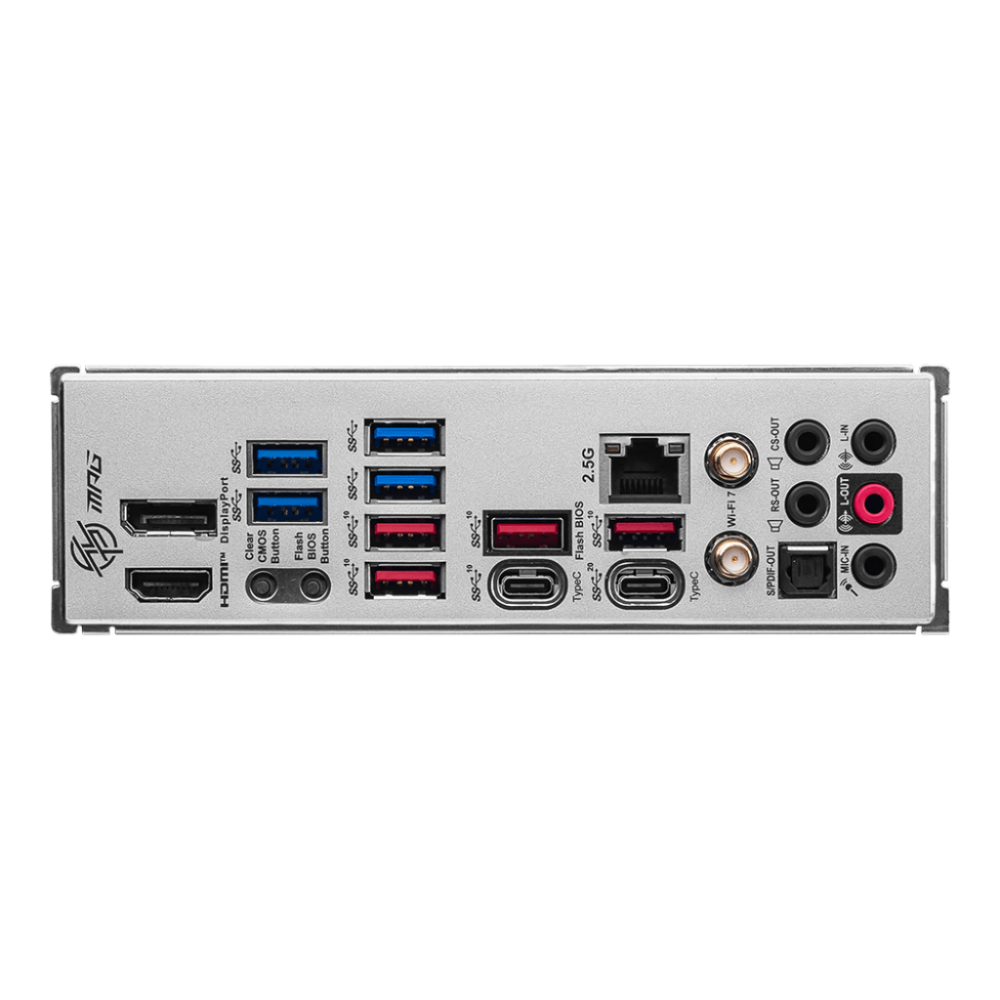

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, S/PDIF (optiskais)

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

8 x SATA-III (6 Gb/с)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 5.0 x16, PCI-E x16, PCIe 3.0 x1, 4.0 x PCI-E x4, PCI-E x1, PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

msi.com
