- Pamatplate ASUS PRIME B650M-R (PRIMEB650M-R)

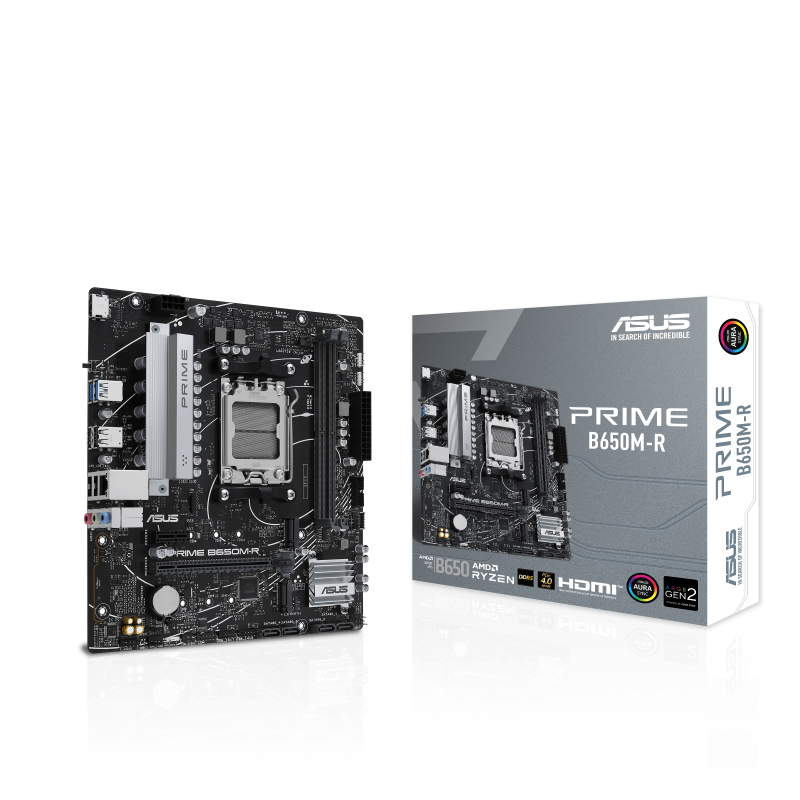

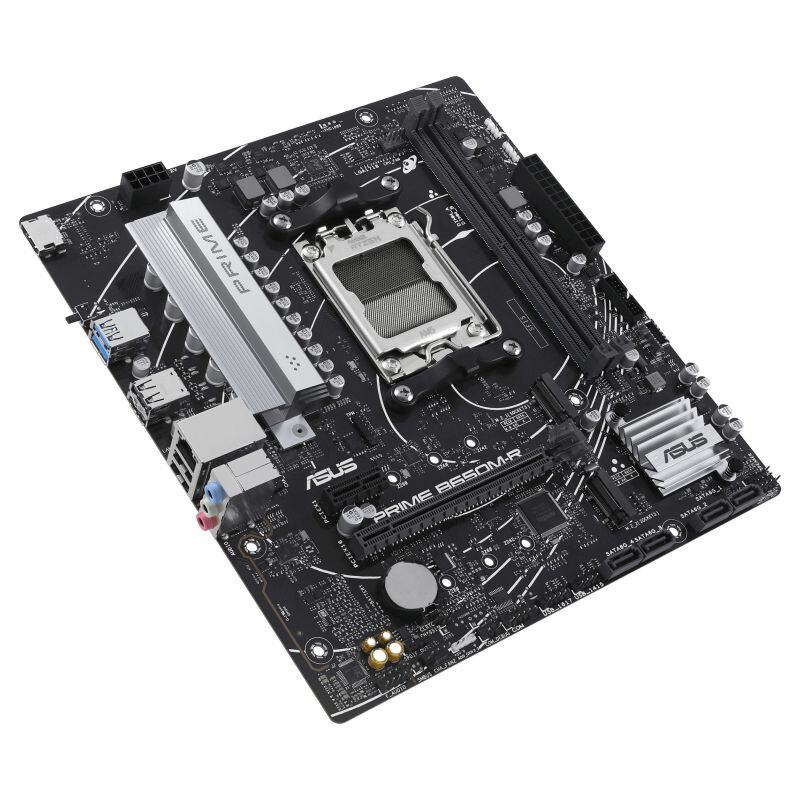

Pamatplate ASUS PRIME B650M-R (PRIMEB650M-R)
ID: 1466
Modifikācija
Īsi par preci
- Socket: AM5
- Mikroshēmu kopa (Chipset): AMD B650
- Atmiņas slotu skaits: 2
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 4.0 x16, PCI-E M.2
- Ligzdas aizmugurējā panelī: USB 2.0, HDMI
- Formfaktors: mATX
Pilnas specifikācijas
Nav noliktavā
Pamatplate ASUS PRIME B650M-R (PRIMEB650M-R)
Nav noliktavā
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
PRIMEB650M-R
Socket ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B650, R
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
2
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 4.0 x16, PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
Supports 2 x M.2 slots
M.2_1 slot (Key M), type 2242/2260/2280
M.2_2 slot (Key M), type 2242/2260/2280
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
supports PCIe 4.0 x4 mode
Saskarnes

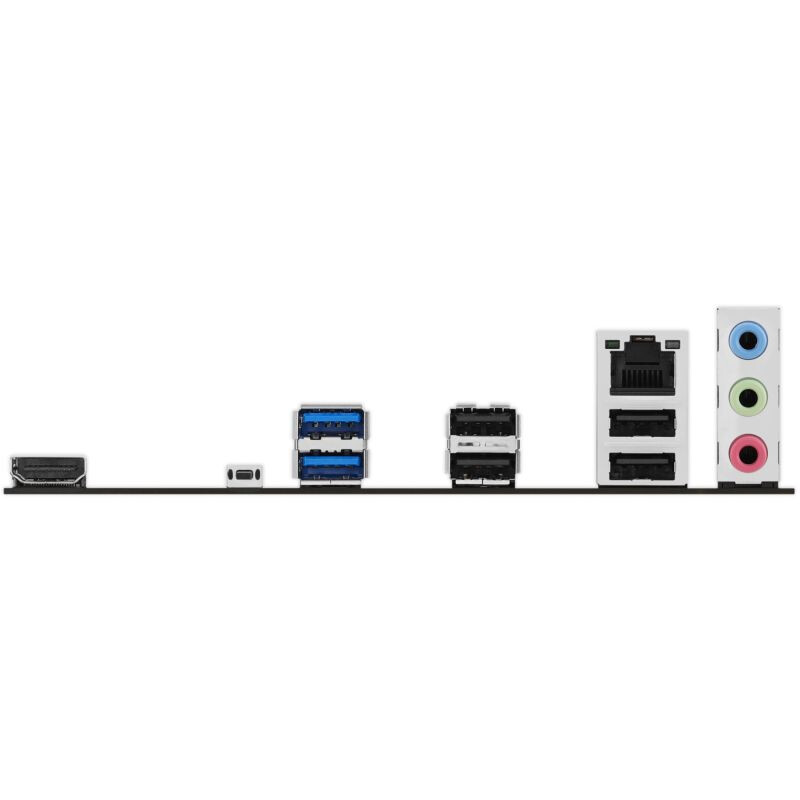

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
USB 2.0, HDMI
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/с)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 10
Papildu
Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................
4-pin
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
8-pin
Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................
USB 2.0
Formfaktors ........................................................................................................................................................................................................
mATX
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
