- Pamatplate GIGABYTE Intel Z790 LGA1700 ATX (Z790AORUSELITEXWIFI7)
Pamatplate GIGABYTE Intel Z790 LGA1700 ATX (Z790AORUSELITEXWIFI7)
ID: 1436
Modifikācija
Īsi par preci
- Socket: LGA 1700
- Mikroshēmu kopa (Chipset): Intel Z790
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 5.0 x16, x4 x PCI-E x4, PCI-E M.2
- Grafiskā mikroshēmas kopa: Intel HD Graphics
- Tīkla saskarne: Wi-Fi, Bluetooth
- Ligzdas aizmugurējā panelī: USB 2.0, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45
- Formfaktors: ATX
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
Z790AORUSELITEXWIFI7
Socket ........................................................................................................................................................................................................
LGA 1700
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
Intel Z790
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
Wi-Fi, Bluetooth
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
x6 x SATA-III (6 Gb/с)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 5, 10
Papildu
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
8-pin
Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................
USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 Type-C
Formfaktors ........................................................................................................................................................................................................
ATX
Saskarnes
Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

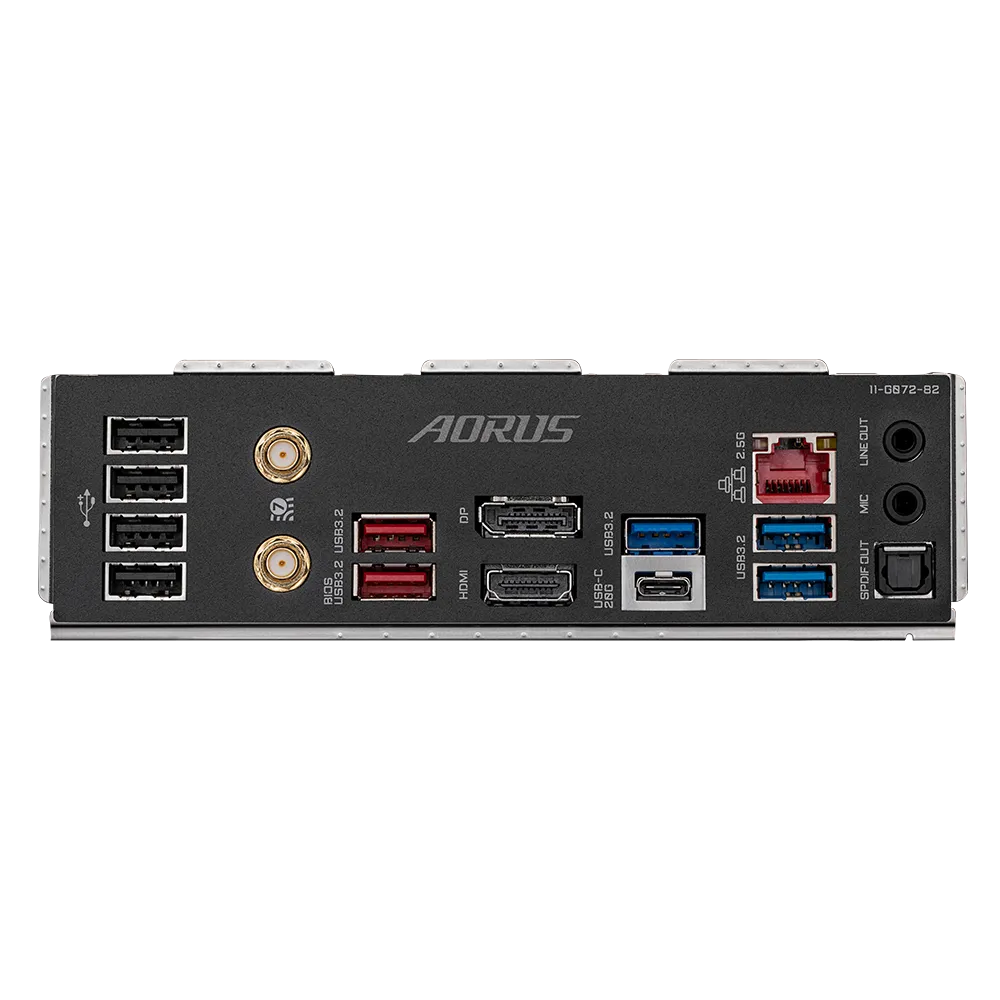

USB 2.0, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45
Audio/Video
Grafiskā mikroshēmas kopa ........................................................................................................................................................................................................
Intel HD Graphics
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 5.0 x16, x4 x PCI-E x4, PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
CPU:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD
support) (M2A_CPU)
Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD
support) (M2P_SB, M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4
SSD support) (M2M_SB)
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
