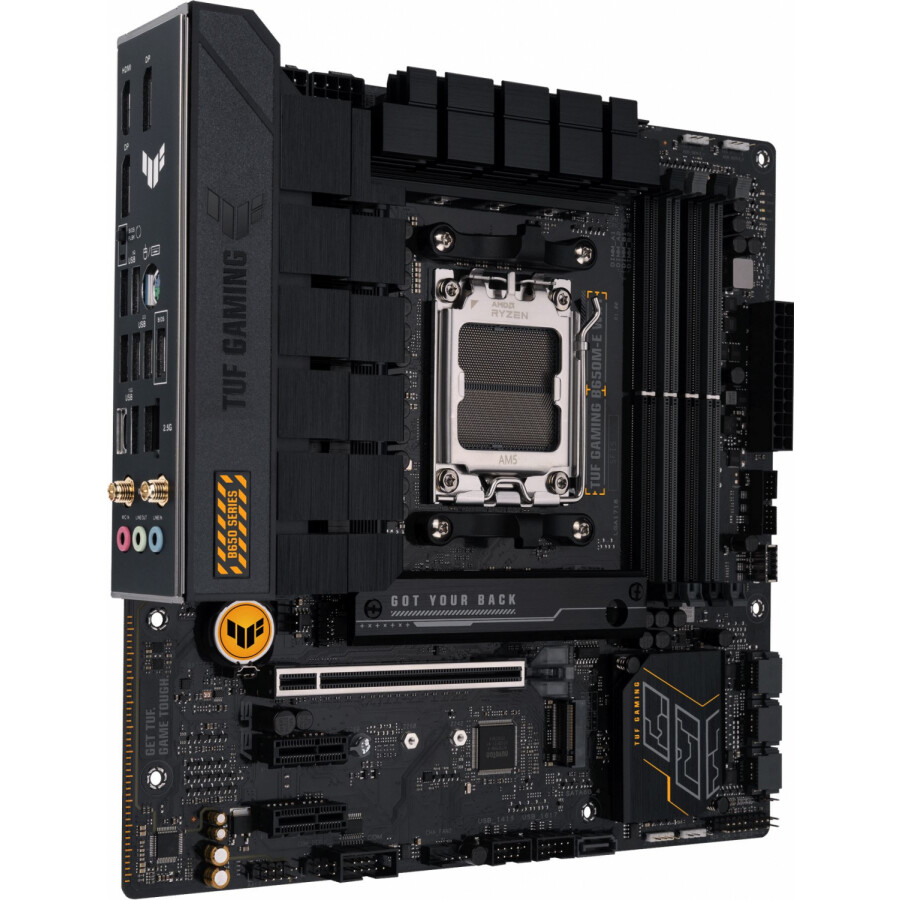

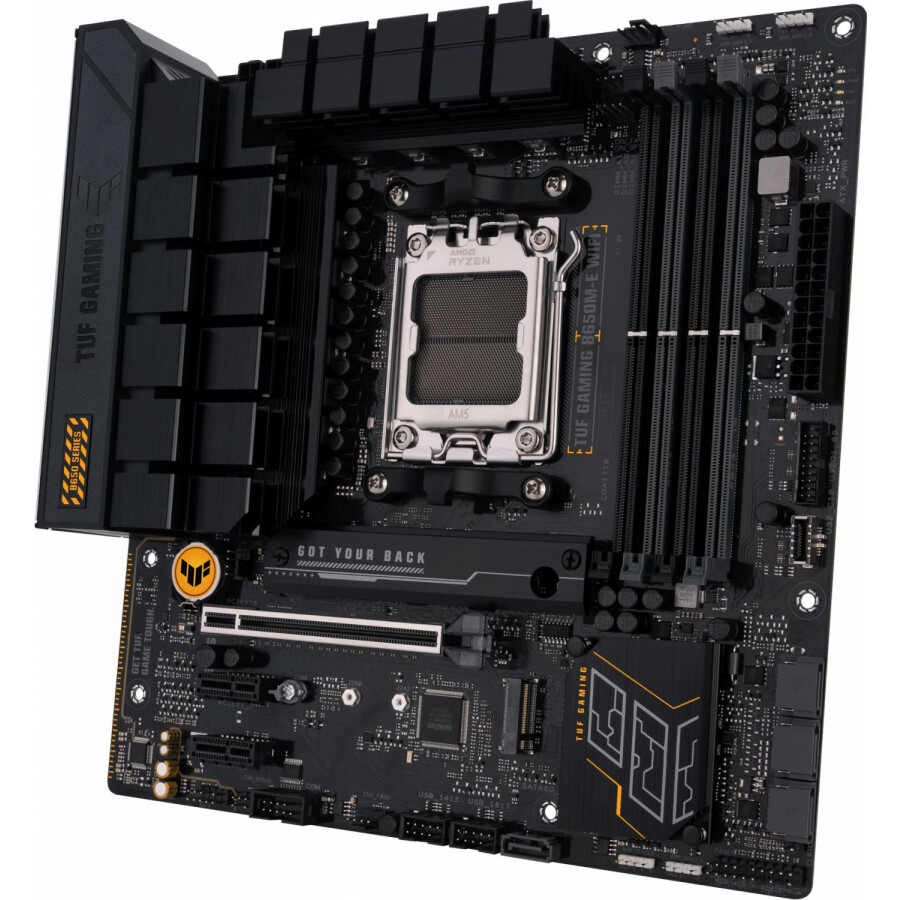

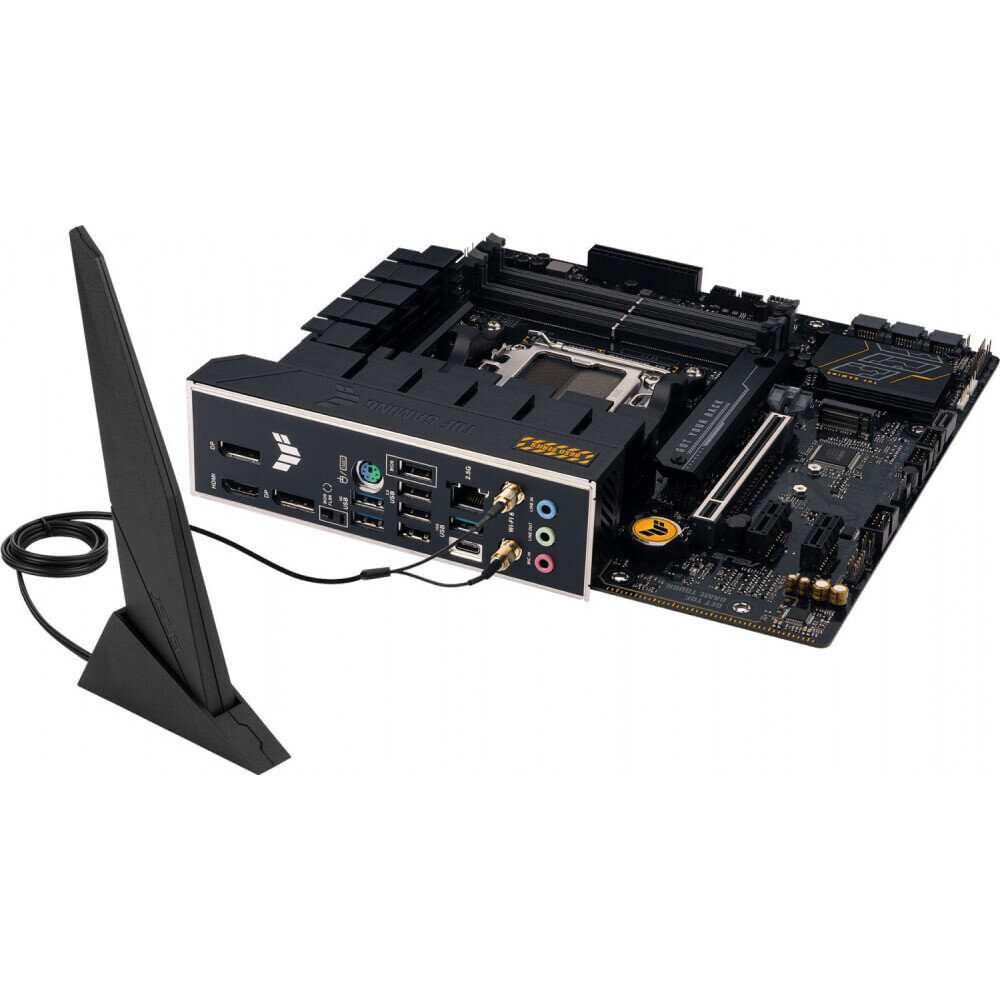

- Pamatplate ASUS TUF GAMING B650M-E (TUFGAMINGB650M-E)
Pamatplate ASUS TUF GAMING B650M-E (TUFGAMINGB650M-E)
ID: 1352
Modifikācija
Īsi par preci
- Socket: AM5
- Mikroshēmu kopa (Chipset): AMD B650
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 4.0 x16, PCI-E x4, PCI-E M.2
- Ligzdas aizmugurējā panelī: PS/2, USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2, HDMI, DisplayPort
- Formfaktors: mATX
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
TUFGAMINGB650M-E
Socket ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B650
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
SATA-III (6 Gb/с)
Papildu
Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................
4-pin
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
4-pin, 8-pin
Formfaktors ........................................................................................................................................................................................................
mATX
Saskarnes

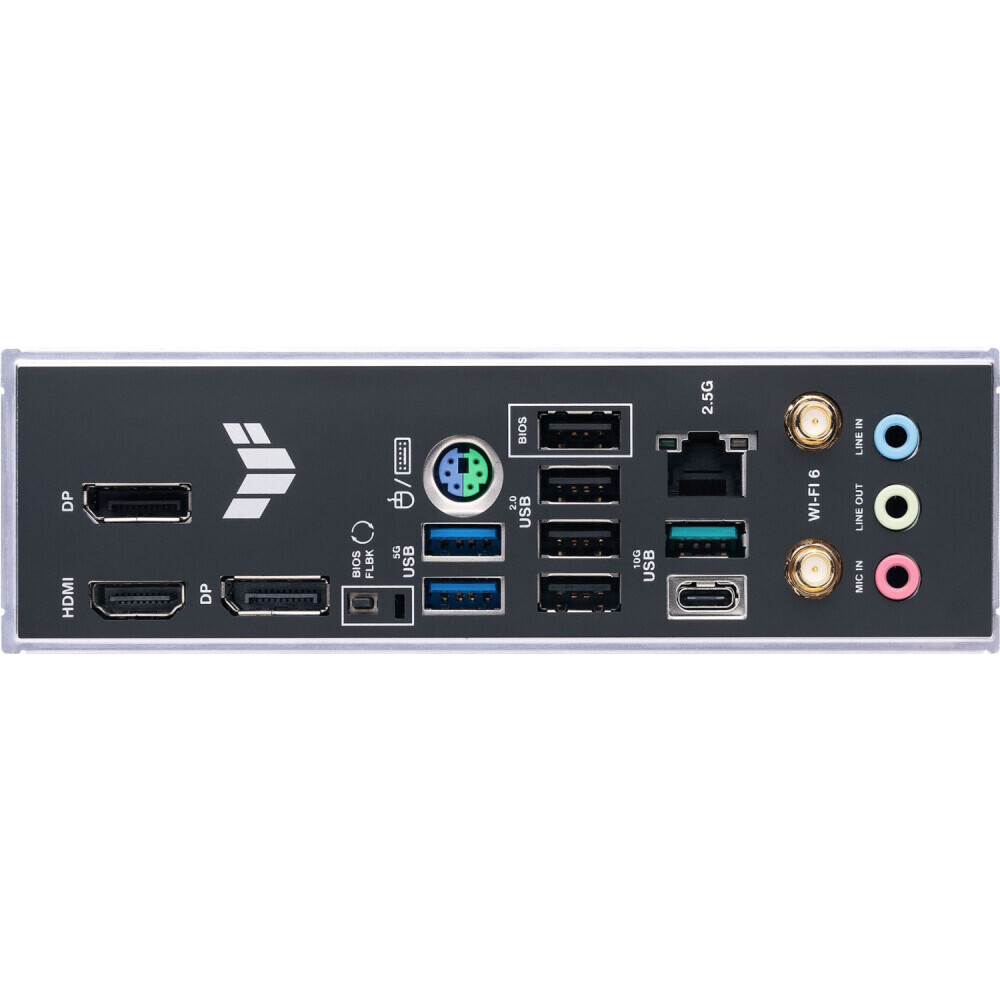

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
PS/2, USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2, HDMI, DisplayPort
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 4.0 x16, PCI-E x4, PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B650 Chipset
2 x PCIe 4.0 x1 slots
Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot
AMD B650 Chipset
2 x PCIe 4.0 x1 slots
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
