- Pamatplate GIGABYTE B650 GAMING X AX V2 (B650 GAMING X AX V2)

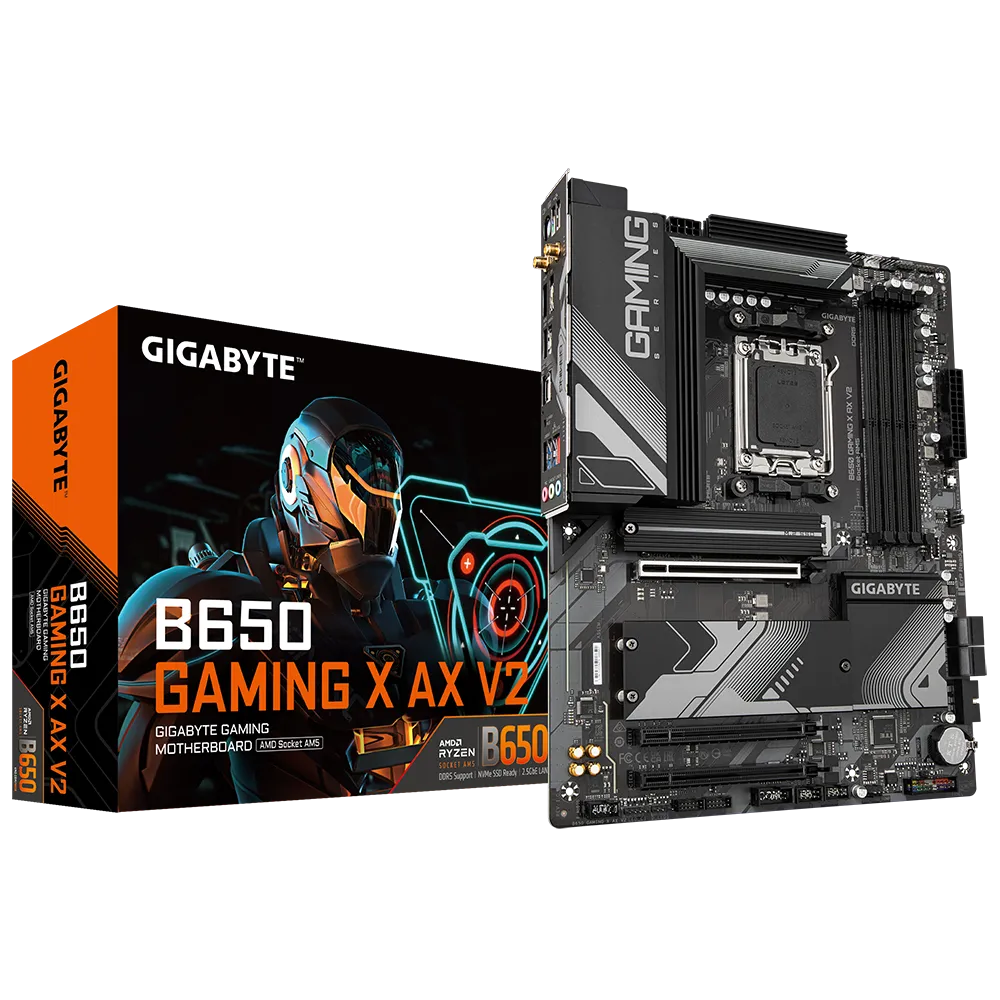

Pamatplate GIGABYTE B650 GAMING X AX V2 (B650 GAMING X AX V2)
ID: 1336
Modifikācija
Īsi par preci
- Socket: AM5
- Mikroshēmu kopa (Chipset): AMD B650
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 4.0 x16, PCIe 3.0 x1, PCI-E x4, PCI-E M.2
- Tīkla saskarne: Wi-Fi, Bluetooth
- Ligzdas aizmugurējā panelī: USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2, HDMI, DisplayPort, RJ-45
- Formfaktors: ATX
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
B650 GAMING X AX V2
Socket ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B650
Saskarnes
Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2, HDMI, DisplayPort, RJ-45
Papildu
Formfaktors ........................................................................................................................................................................................................
ATX
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
Wi-Fi, Bluetooth
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
SATA Express
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 10
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 4.0 x16, PCIe 3.0 x1, PCI-E x4, PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:
AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/2580 PCIe 4.0 x4/x2 SSDs
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
