- Pamatplate GIGABYTE B450 AORUS ELITE V2 (B450 AORUS ELITE V2)

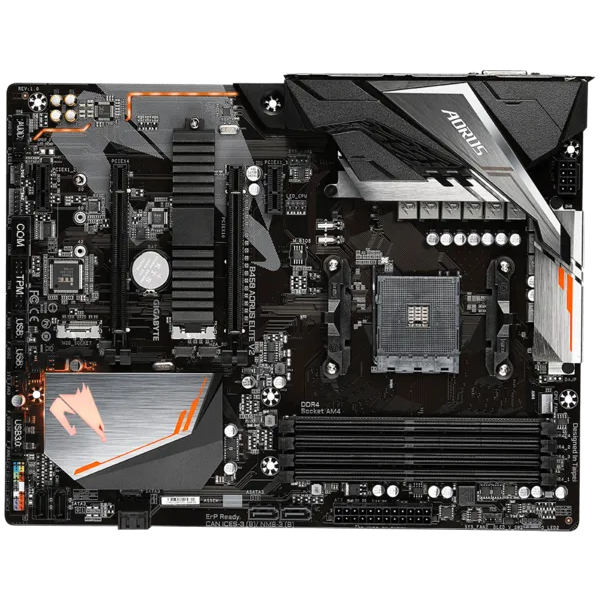

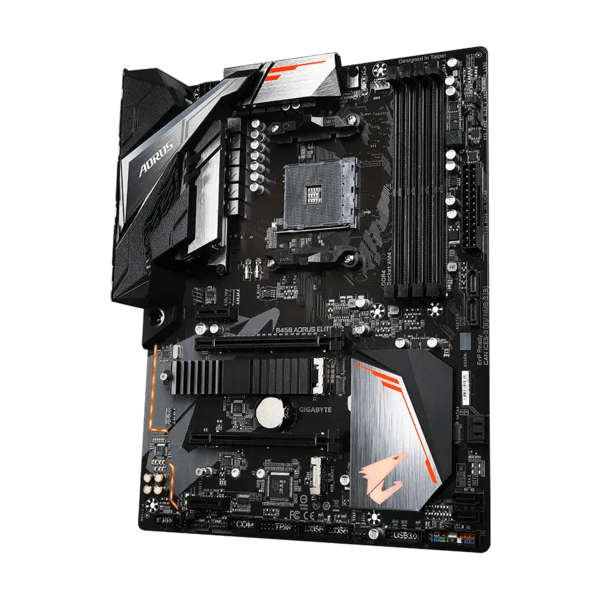

Pamatplate GIGABYTE B450 AORUS ELITE V2 (B450 AORUS ELITE V2)
ID: 1325
Īsi par preci
- Socket: AM4
- Mikroshēmu kopa (Chipset): AMD B450
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR4
- Paplašināšanas sloti: PCI-E x16, PCI-E x1, PCI-E M.2
- Ligzdas aizmugurējā panelī: PS/2, USB 2.0, USB 3.0, HDMI
- Formfaktors: ATX
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
B450 AORUS ELITE V2
Socket ........................................................................................................................................................................................................
AM4
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B450
Saskarnes
Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
PS/2, USB 2.0, USB 3.0, HDMI
Papildu
Formfaktors ........................................................................................................................................................................................................
ATX
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR4
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Audio/Video
Audio kontrolieris ........................................................................................................................................................................................................
Realtek ALC892
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
SATA-III (6 Gb/с)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 10
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E x16, PCI-E x1, PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)
6 x SATA 6Gb/s connectors
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when the PCIEX1_2 is empty.
2 x PCI Express x1 slots
(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
