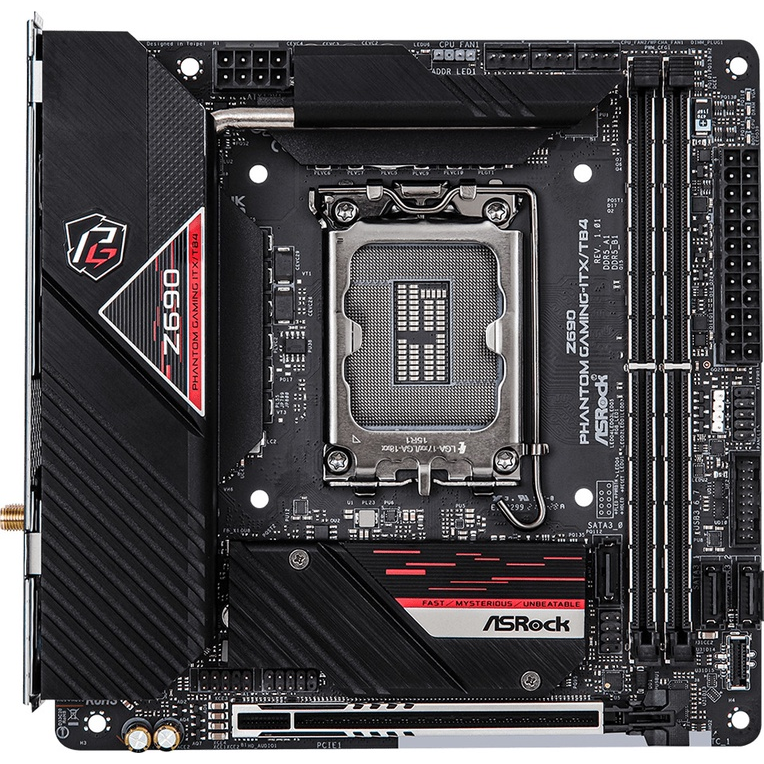

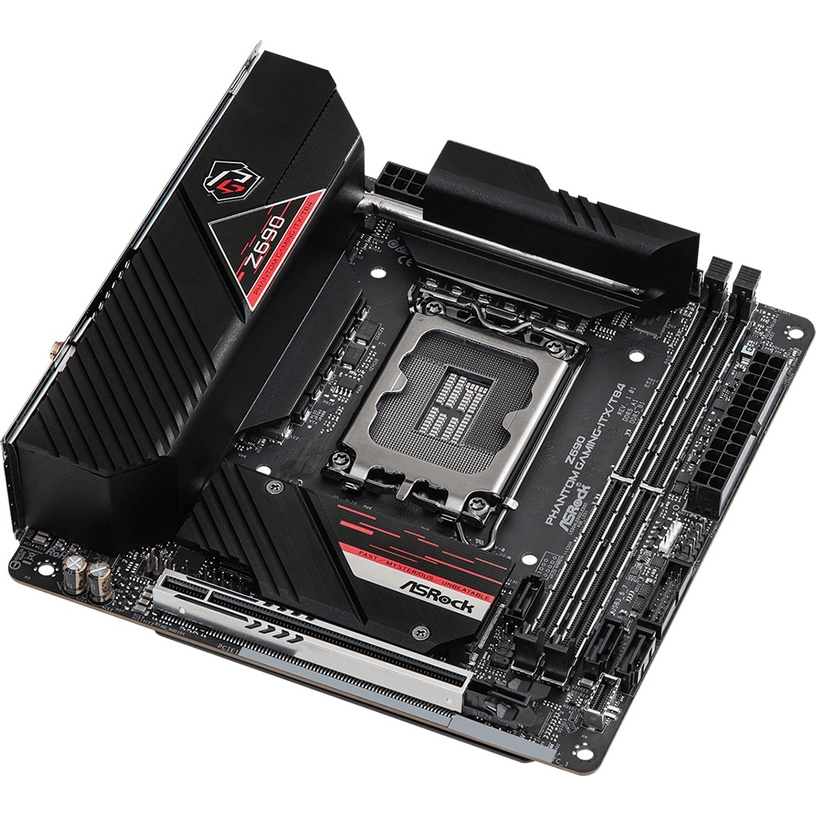

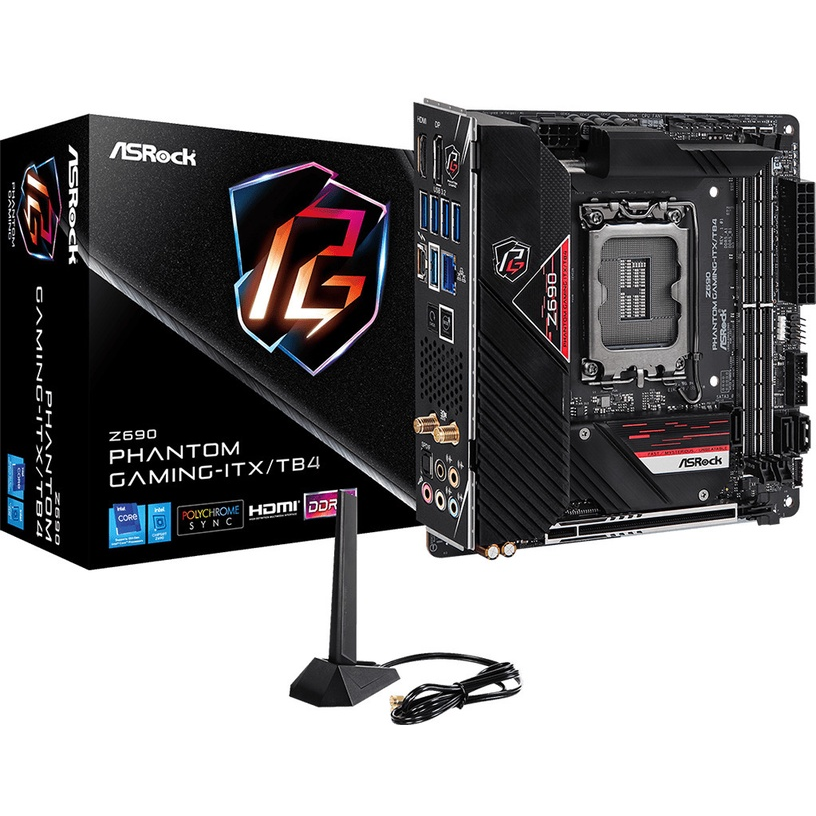

Pamatplate ASROCK Z690 PHANTOM GAMING(Z690 PHANTOM GAMING-ITX/TB4)
ID: 1232
Īsi par preci
- Socket: LGA 1700
- Mikroshēmu kopa (Chipset): Intel Z690
- Atmiņas slotu skaits: 2
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E x16, 2 x PCI-E M.2
- Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mb/с), Wi-Fi
- Ligzdas aizmugurējā panelī: PS/2, USB 3.2 Gen1, 4 x USB 3.2 Gen2, HDMI, DisplayPort, Thunderbolt 4/USB-C, RJ-45, S/PDIF (optiskais)
- Formfaktors: Mini-ITX
Pilnas specifikācijas
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
Z690 PHANTOM GAMING-ITX/TB4
Socket ........................................................................................................................................................................................................
LGA 1700
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
Intel Z690
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E x16, 2 x PCI-E M.2
Papildu
Formfaktors ........................................................................................................................................................................................................
Mini-ITX
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
melns
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek ALC1220
Saskarnes

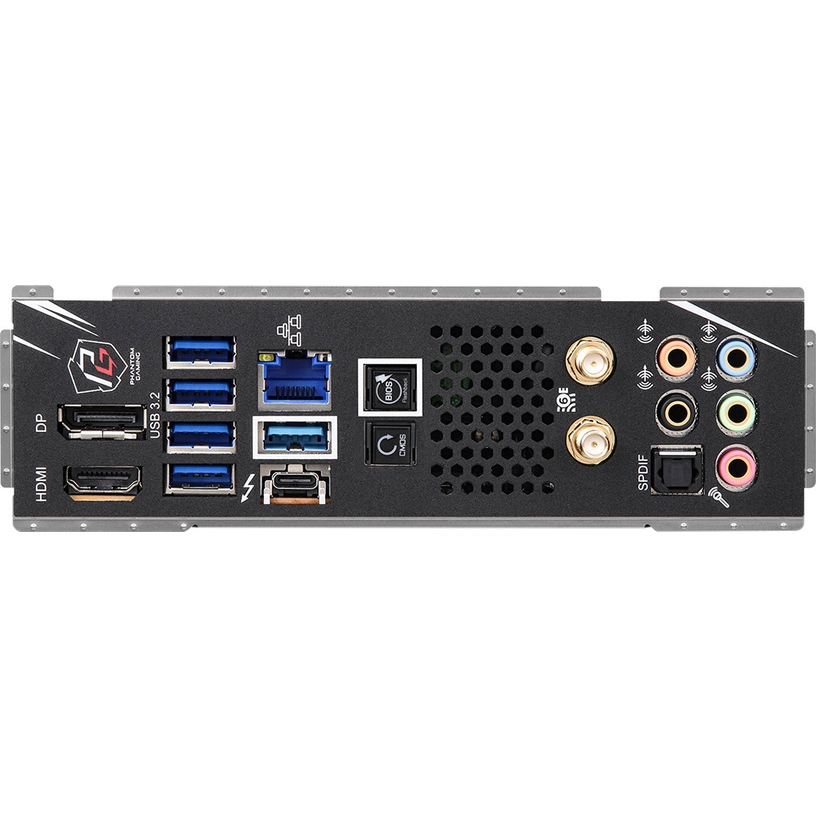

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
PS/2, USB 3.2 Gen1, 4 x USB 3.2 Gen2, HDMI, DisplayPort, Thunderbolt 4/USB-C, RJ-45, S/PDIF (optiskais)
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/с)
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mb/с), Wi-Fi
Tīkla kontrolieris ........................................................................................................................................................................................................
Killer E3100G
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
2
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
